Husqvarna PB 19546 LT (96042003500) (2008-02) Ride Mower

Model: PB 19546 LT (96042003500) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

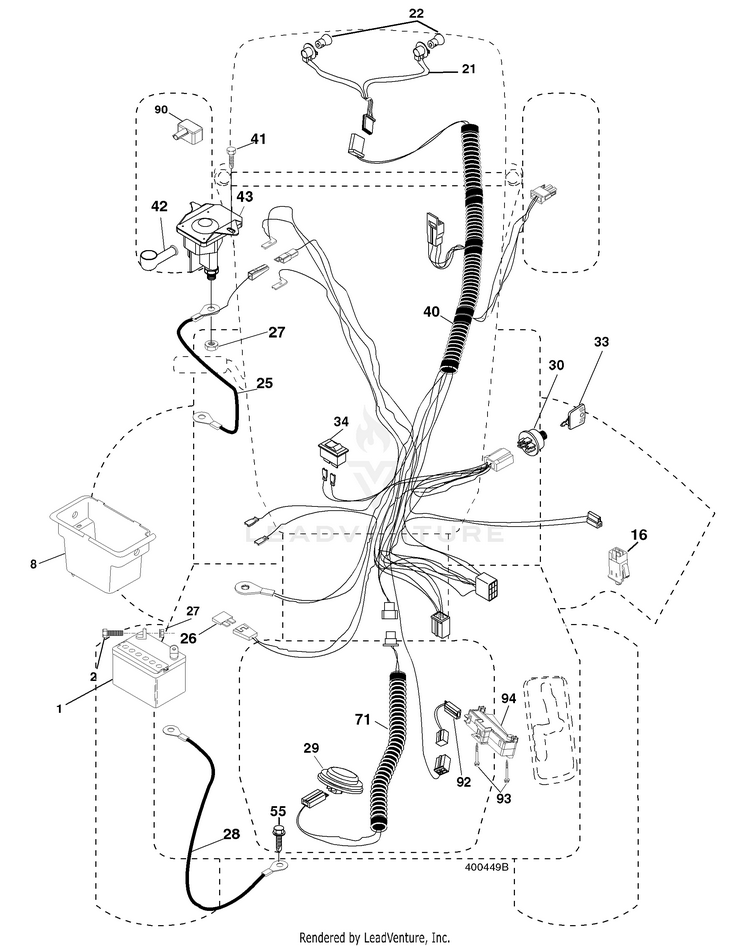

Electrical

...
...
1
Battery HUS-163465
...
2
Bolt Hex Hd 1/4-20 unc x 3/4 HUS-74760412
...
8
Box Battery HUS-193228
...
16
Switch Interlock HUS-176138
...
21
Harness Socket Light HUS-183759
...
22
Bulb, Light # 1156 HUS-4152J
...
25
Cable Battery 6 Ga. Red 14.5 HUS-401662
...
26
Fuse HUS-175158
...
27
Nut Keps Hex 1/4-20 unc HUS-73510400
...
28
Cable Ground 18" Rear Battery Blk 6 Ga. HUS-198885
...
29
Switch Seat HUS-401545
...
30
Switch Ign HUS-193350
...
33
Key Ign Molded Generic HUS-140401
...
34
Switch Light/Reset HUS-110712X
...
40
Harness Ign HUS-401098
...
41
Screw 1/4-20 unc x 1/2 HUS-17720408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-192507
...
55
Screw 5/16-18 x 3/4 HUS-17060512
...
71
Harness Ign. Chass. HUS-400449
...
90
Cover Terminal HUS-400725
...
92
Harness Pigtail Reverse Switch HUS-196615
...
93
Screw Plastic 10-14 x 2.0 HUS-192540
...
94
Modual Reverse ROS HUS-191834
