Husqvarna PB 19546 LT (96042003500) (2008-02) Ride Mower

Model: PB 19546 LT (96042003500) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

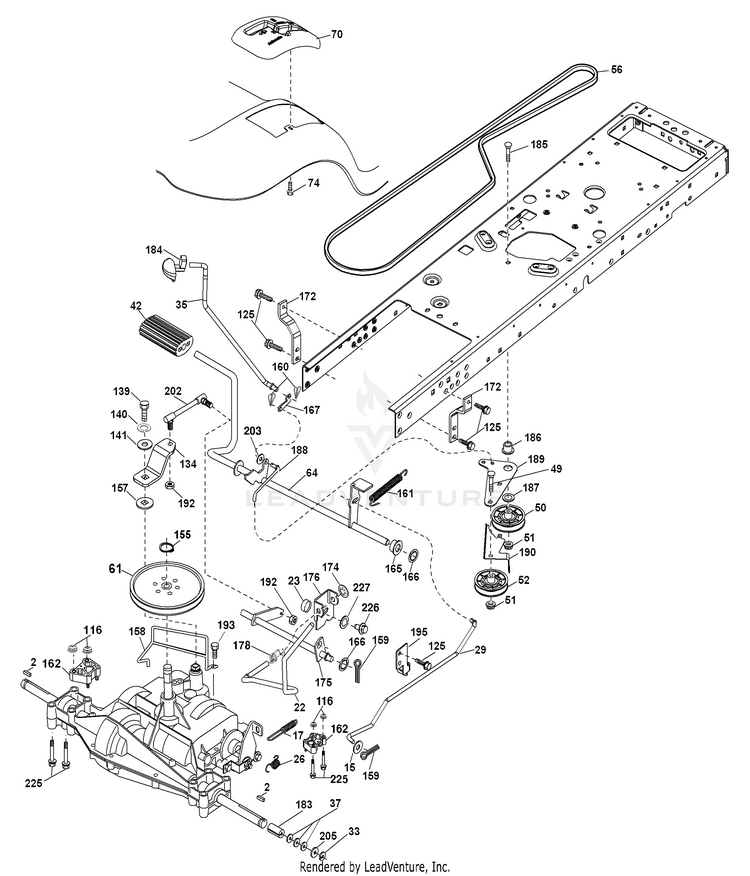

Drive

...
...
2
Key Square HUS-123583X
...
15
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
17
Spring, Brake HUS-197297
...
22
Rod Shift HUS-197660
...
23
Knob HUS-409154X421
...
26
Spring Brake RTN HUS-197455
...
29
Rod, Brake HUS-197267
...
33
Ring E HUS-12000001
...
35
Rod, Brake, Park HUS-197722
...
37
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
42
Cover, Foot Pedal HUS-8883R
...
49
Bolt HUS-72110614
...
50
Pulley Idler Flat HUS-194327
...
51
Lock Nut 3/8-16 HUS-73900600
...
52
Idler V-Groove HUS-194326
...
56
V-Belt, Drive HUS-194346
...
61
Pulley Transaxle HUS-123666X
...
64
Shaft Asm. Pedal Brake Control HUS-196200
...
70
Console HUS-193225X428
...
74
Screw 1/4 x 1/2 HUS-142432
...
116
Nut Lock Hex Flange 5/16-18 HUS-73900500
...
125
Screw 5/16-18 x 3/4 HUS-17000512
...
134
Arm Shift HUS-197857
...
139
Bolt 1/4-20 unf Gr. 8 w/Patch HUS-74550412
...
140
Washer Lock Hvy Helical 1/4 HUS-10040400
...
141
Washer 9/32 x 3/4 x 10 Ga. HUS-19091210
...
155
Ring Retainer HUS-12000028
...
157
Washer Plate Shf HUS-105701X
...
158
Keeper T/A HUS-194352
...
159
Pin Cotter 1/8 x 3/4 HUS-76020412
...
160
Retainer Clip HUS-169484
...
161
Spring, Return, Clutch HUS-195403
...
162
Spacer HUS-195785
...
165
Busing Shaft Brake Hand Control HUS-196212
...
166
Nut Push .625 HUS-197290
...
167
Latch Brake Parking HUS-405257
...
172
Strap Torque LH HUS-197657
...
174
Nut Push HUS-197289
...
175
Shaft Asm Shift HUS-197858
...
176
Arm Clevis Rod Shift HUS-196214
...
178
Spring Shift HUS-197456
...
183
Spacer Axle HUS-137057
...
184
Handle Parking Brake HUS-198403X505
...
185
Bolt HUS-72110620
...
186
Spacer Retainer HUS-194321
...
187
Washer HUS-19133210
...
188
Link Clutch Ground Drive HUS-194323
...
189
Bellcrank Ground Drive HUS-194317
...
190
Keeper Bellcrank Ground Drive HUS-194318
...
192
Nut Lock Center 1/4-28 HUS-150360
...
193
Screw 5/16-18 x 3/4 HUS-17060512
...
195
Bracket Brake Rod HUS-197332
...
202
Link Shift HUS-197859
...
203
Washer 11/32 x 11/16 x 16 Ga. HUS-19111116
...
205
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
225
Bolt 5/16-18 x 3.75 HUS-74490560
...
226
Bolt 7/16-14 x 1 Gr.5 HUS-74780716
...
227
Washer Serrated HUS-405296
