Husqvarna PB 19546 LT (96042003500) (2008-02) Ride Mower

Husqvarna PB 19546 LT (96042003500) (2008-02) Ride Mower

Model: PB 19546 LT (96042003500) (2008-02)

Back To Assemblies

Save Part Not Listed?

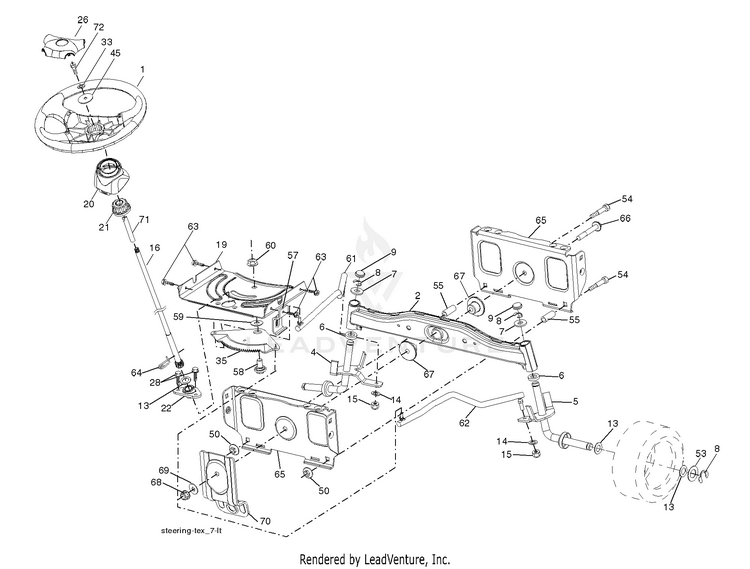

Steering

1

Wheel, Steering HUS-186093X428

2

Axle Asm., Front HUS-184706

4

Spindle Asm., LH HUS-403087

5

Spindle Asm., RH HUS-403088

6

Bearing, Race Thrust Harden HUS-6266H

7

Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X

8

Ring, Klip #T5304-75 HUS-12000029

9

Cap, Spindle HUS-121232X

13

Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X

14

Washer Lock 3/8 HUS-10040600

15

Nut, Crown Lock 3/8-24 unf HUS-73540600

16

Shaft Steering HUS-408220

19

Plate Steering HUS-194729

20

Boot, Steering HUS-198375X428

21

Adapter, Wheel Steering HUS-186737

22

Bushing, Strg. Blk HUS-194845

26

Insert, Wheel Steering HUS-186095X428

28

Screw 3/8-16 x 3/4 HUS-17000612

33

Washer Lock 5/16 HUS-10040500

35

Gear, Sector Plate HUS-194732

45

Washer 11/32 x 2-3/8 x 12 Ga. HUS-19113812

50

Nut Lock Flg 3/8-16 unc HUS-73900600

53

Washer Hardened .793 x 1.637 x .060 HUS-188967

54

Bolt Hex HS 3/8-16 unc x 2-1/4 HUS-74760636

55

Spacer Brace Axle HUS-197636

57

Bracket Upstop HUS-407465

58

Bolt Shoulder Sector Pivot CFM HUS-194747

59

Washer Thrust Sector Steering HUS-194748

60

Nut Flange Lock 5/8-11 HUS-73971000

61

Draglink LH HUS-194740

62

Draglink, RH HUS-194741

63

Screw 5/16-18 x 3/4 HUS-17000512

64

Retainer Clip Spring Steering HUS-199849

65

Brace Axle Front HUS-194734

66

Bolt Hex Fghd 7/16-14 x 3 Serr HUS-71020748

67

Bushing PM Front Axle HUS-194737

68

Nut Lock Flange 7/16-14 Gr. 5 HUS-73900700

69

Washer 1.5 x .505 x .118 HUS-199162

70

Bracket Deck Susp. Front HUS-196197

71

Shaft Ext. Steering HUS-196075

72

Bolt 5/16-18 x 4.5 Gr. 5 HUS-74780572
