Husqvarna PB 19546 LT (96042003500) (2008-02) Ride Mower

Model: PB 19546 LT (96042003500) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

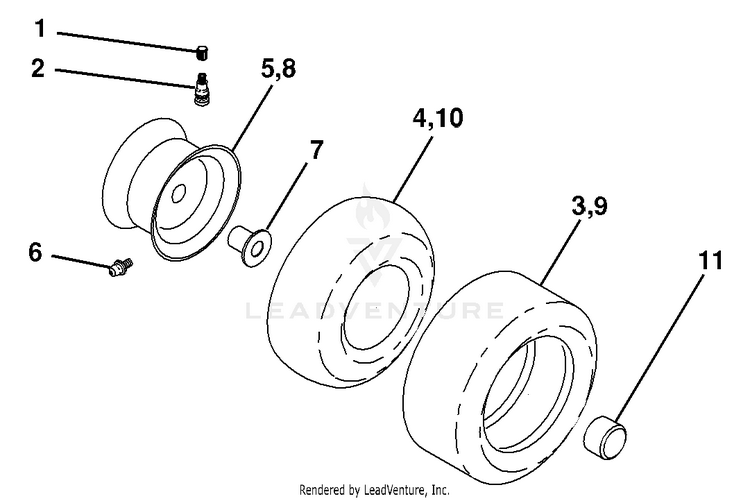

Wheels and Tires

...
...
1
Cap Valve Tire HUS-59192
...
2
Stem Valve HUS-65139
...
3
Tire F T 15 x 6 0 - 6 Service HUS-106222X
...
4
Tube Front (Service Item Only) HUS-59904
...
5
Rim Asm 6" front Service HUS-106732X421
...
6
Fitting Grease (Front Wheel Only) HUS-278H
...
7
Bearing Flange (Front Wheel nly) HUS-9040H
...
8
Rim Asm 8" rear Service HUS-106108X421
...
9
Tire R T 18 x 9.5-8C Service HUS-106268X
...
10
Tube Rear (Service Item Only) HUS-7152J
...
11
Cap Axle Blk 1 50 x 1 00 HUS-104757X421
...
11
Sealant, Tire (10 oz. Tube) HUS-144334
Schematic Image Zoomed
