Husqvarna P525 D - 967602101 (2017) Riding Mower

Model: P525 D - 967602101 (2017)

Back To Assemblies

Save Part Not Listed?
product name

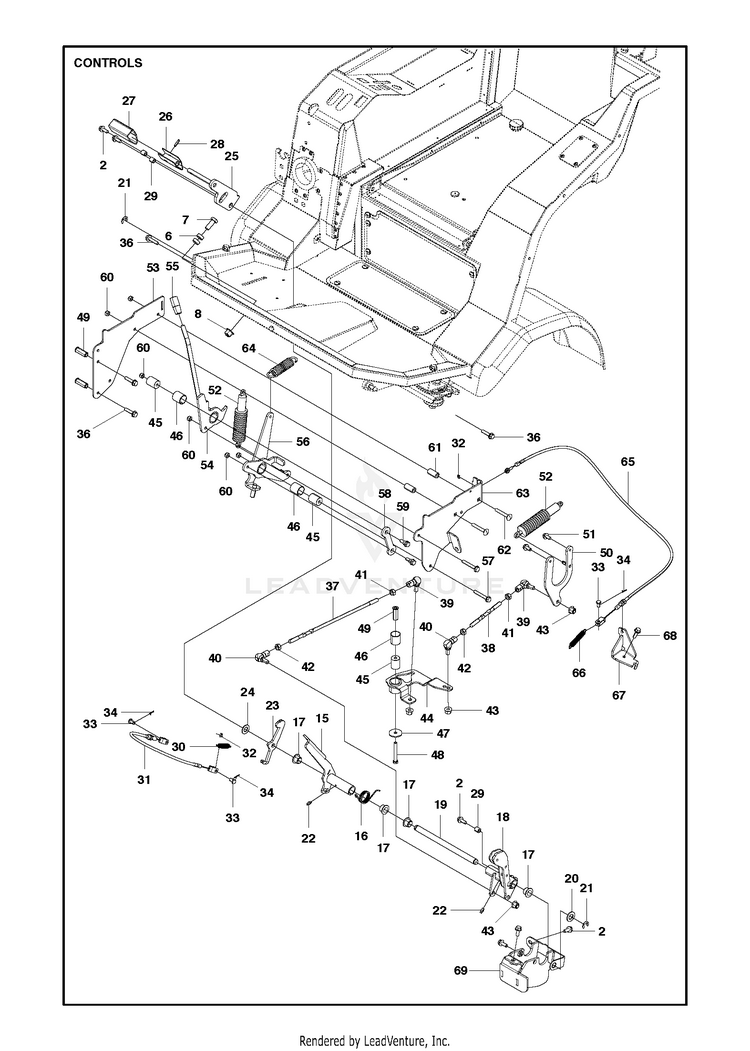

CONTROLS

...
...
41
NUT HUS-506897601
...
22
GREASE NIPPLE HUS-738881001
...
49
NEEDS DESCRIPTION HUS-576434201
...
24
Washers HUS-596040101
...
2
BOLT HUS-506570104
...
43
NEEDS DESCRIPTION HUS-576645705
...
53
NEEDS DESCRIPTION HUS-579303601
...
60
LOCKNUT M8 HUS-732211801
...
45
NEEDS DESCRIPTION HUS-576351501
...
31
NEEDS DESCRIPTION HUS-576352201
...
15
NEEDS DESCRIPTION HUS-588692001
...
38
NEEDS DESCRIPTION HUS-576291401
...
29
NEEDS DESCRIPTION HUS-585877301
...
51
BOLT HUS-506570103
...
61
TUBE HUS-505450301
...
21
Lock Ring HUS-735311820
...
19
NEEDS DESCRIPTION HUS-576348901
...
66
NEEDS DESCRIPTION HUS-544133601
...
47
NEEDS DESCRIPTION HUS-576351601
...
63
NEEDS DESCRIPTION HUS-579303701
...
65
NEEDS DESCRIPTION HUS-579328701
...
50
NEEDS DESCRIPTION HUS-579448901
...
8
NEEDS DESCRIPTION HUS-576645706
...
67
NEEDS DESCRIPTION HUS-579304101
...
40
NEEDS DESCRIPTION HUS-506789902
...
6
NEEDS DESCRIPTION HUS-576998701
...
23
NEEDS DESCRIPTION HUS-582092501
...
64
NEEDS DESCRIPTION HUS-579304001
...
68
BOLT HUS-506597401
...
36
SCREW EHHFM HUS-506570106
...
37
NEEDS DESCRIPTION HUS-576291402
...
32
E-RING 5 HUS-735310920
...
58
NEEDS DESCRIPTION HUS-579303801
...
55
NEEDS DESCRIPTION HUS-521903501
...
33
Clevis Pin HUS-721839901
...
62
NEEDS DESCRIPTION HUS-535423802
...
17
BEARING FLANGE HUS-584871302
...
28
NEEDS DESCRIPTION HUS-721430970
...
25
NEEDS DESCRIPTION HUS-579296801
...
69
NEEDS DESCRIPTION HUS-582084501
...
7
SCREW HUS-725254071
...
26
NEEDS DESCRIPTION HUS-535479901
...
16
NEEDS DESCRIPTION HUS-576475101
...
56
NEEDS DESCRIPTION HUS-588838901
...
44
NEEDS DESCRIPTION HUS-579440901
...
27
PEDAL RUBBER HUS-586966401
...
39
LINK HUS-506789901
...
42
Nut HUS-731232001
...
30
SPRING HUS-506535603
...
48
SCREW HUS-725246451
...
59
BOLT HUS-506597401
...
20
WASHER HUS-734118601
...
46
BUSHING HUS-506986102
...
54
NEEDS DESCRIPTION HUS-579325401
...
18
NEEDS DESCRIPTION HUS-586175001
...
52
SHOCK ABSORBER HUS-506938301
...
34
Cotter Pin HUS-721615201
...
57
SCREW EHHFM HUS-506570107
