Husqvarna P525 D - 967292401 (2015) Riding Mower

Model: P525 D - 967292401 (2015)

Back To Assemblies

Save Part Not Listed?
product name

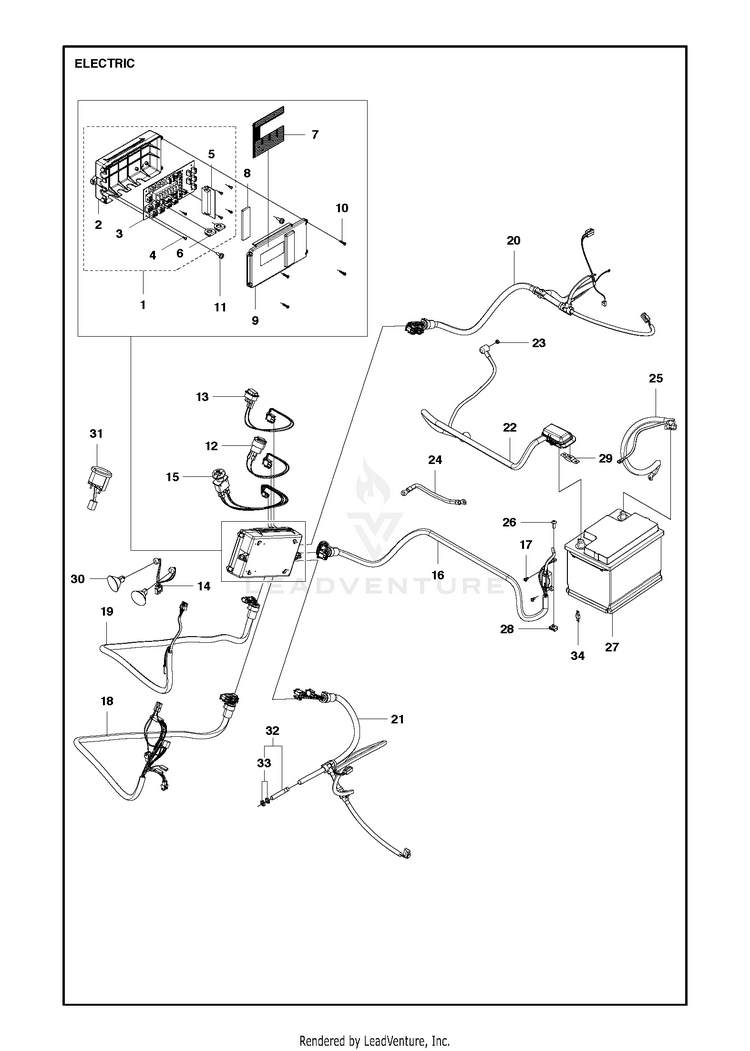

ELECTRICAL

...
...
34
FUSE 50A 50A HUS-501965501
...
26
SCREW HUS-535425802
...
17
NEEDS DESCRIPTION HUS-544291302
...
29
NEEDS DESCRIPTION 125A HUS-544369601
...
20
NEEDS DESCRIPTION HUS-579058801
...
3
NEEDS DESCRIPTION HUS-579293801
...
14
NEEDS DESCRIPTION HUS-576468501
...
33
NEEDS DESCRIPTION HUS-522617601
...
11
NEEDS DESCRIPTION HUS-574856202
...
4
SCREW HUS-535130310
...
28
NUT HUS-535429101
...
5
NEEDS DESCRIPTION HUS-579293901
...
15
NEEDS DESCRIPTION PTO switch HUS-576468601
...
13
NEEDS DESCRIPTION HUS-576468401
...
21
NEEDS DESCRIPTION HUS-576469101
...
8
NEEDS DESCRIPTION HUS-577574201
...
12
NEEDS DESCRIPTION 12v Socket HUS-576468301
...
27
NEEDS DESCRIPTION HUS-576958201
...
23
LOCKNUT M6 HUS-732211601
...
30
LIGHT HUS-582214201
...
6
NEEDS DESCRIPTION HUS-544381501
...
25
NEEDS DESCRIPTION HUS-577432001
...
7
NEEDS DESCRIPTION HUS-576976401
...
18
NEEDS DESCRIPTION HUS-576468801
...
24
NEEDS DESCRIPTION HUS-544323701
...
10
NEEDS DESCRIPTION HUS-577903401
...
22
NEEDS DESCRIPTION HUS-576472001
...
31
NEEDS DESCRIPTION Temp HUS-576955301
...
16
NEEDS DESCRIPTION HUS-576468701
...
19
NEEDS DESCRIPTION HUS-576468901
...
1
NEEDS DESCRIPTION HUS-579546501
...
32
NEEDS DESCRIPTION HUS-522612501
...
9
NEEDS DESCRIPTION HUS-576285801
...
2
NEEDS DESCRIPTION HUS-576285701
