Husqvarna P525 D - 967292401 (2015) Riding Mower

Model: P525 D - 967292401 (2015)

Back To Assemblies

Save Part Not Listed?
product name

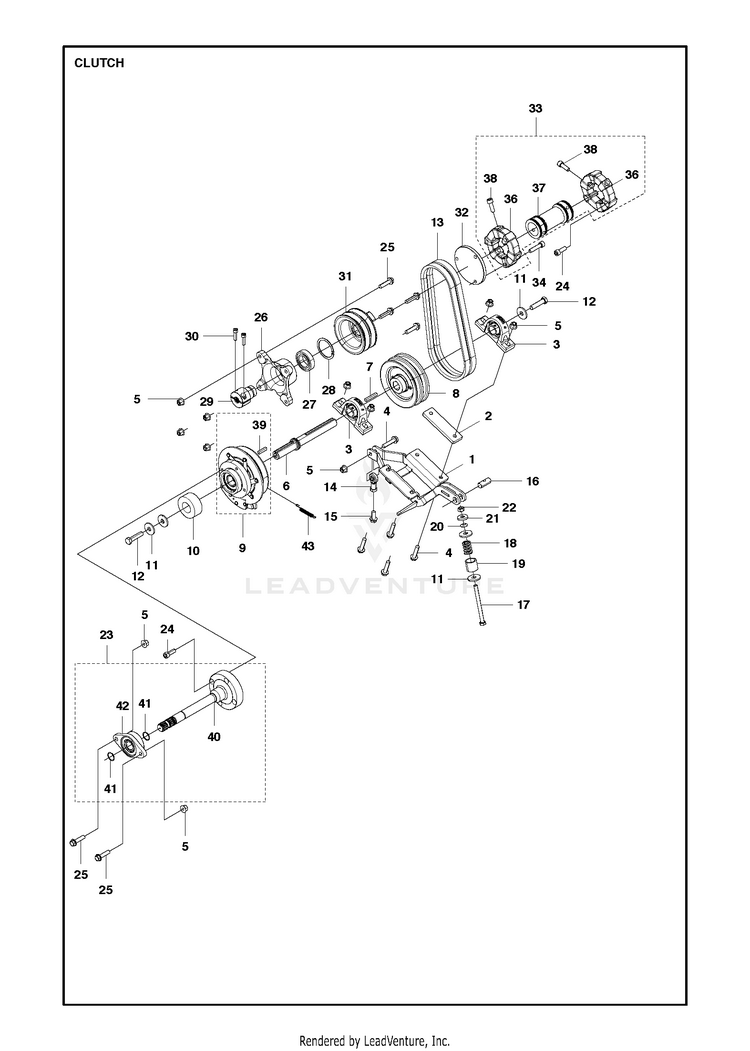

CLUTCH

...
...
34
SCREW IHSCM M10X45 12.9 ZPB L HUS-502233602
...
17
HUS-725251571
...
21
NEEDS DESCRIPTION HUS-576473503
...
36
NEEDS DESCRIPTION HUS-515983401
...
1
NEEDS DESCRIPTION HUS-576186001
...
14
LINK HUS-506951701
...
37
NEEDS DESCRIPTION HUS-515983302
...
27
NEEDS DESCRIPTION HUS-522664401
...
13
NEEDS DESCRIPTION HUS-589539501
...
5
NEEDS DESCRIPTION HUS-576645705
...
22
Nut HUS-731232001
...
26
NEEDS DESCRIPTION HUS-506043201
...
20
NEEDS DESCRIPTION HUS-576473502
...
40
NEEDS DESCRIPTION HUS-576188701
...
23
NEEDS DESCRIPTION HUS-576993801
...
3
NEEDS DESCRIPTION HUS-506043601
...
19
NEEDS DESCRIPTION HUS-522946901
...
25
BOLT HUS-506675402
...
16
NEEDS DESCRIPTION HUS-510167601
...
9
NEEDS DESCRIPTION HUS-586943701
...
8
NEEDS DESCRIPTION HUS-585999301
...
18
NEEDS DESCRIPTION HUS-510170701
...
43
SPRING HUS-506834301
...
24
SCREW IHSCM M10X30 12.9 ZPB L HUS-502233601
...
32
NEEDS DESCRIPTION HUS-515983501
...
11
HUS-535429201
...
38
NEEDS DESCRIPTION HUS-725549501
...
33
NEEDS DESCRIPTION HUS-515983202
...
15
BOLT HUS-506675401
...
10
NEEDS DESCRIPTION CLUTCH HUS-589523901
...
41
NEEDS DESCRIPTION HUS-576473601
...
12
NEEDS DESCRIPTION HUS-725254285
...
28
NEEDS DESCRIPTION HUS-522664301
...
7
NEEDS DESCRIPTION HUS-504813501
...
6
NEEDS DESCRIPTION HUS-579296201
...
39
NEEDS DESCRIPTION HUS-580284501
...
31
NEEDS DESCRIPTION HUS-505020401
...
29
NEEDS DESCRIPTION HUS-506043401
...
42
BEARING UNIT FYTB 25TF HUS-544191001
...
4
COLLAR SCREW HUS-506675403
...
2
NEEDS DESCRIPTION HUS-510146001
...
30
SCREW HUS-725545501
