Husqvarna P524 Riding Mower

Model: P524

Back To Assemblies

Save Part Not Listed?
product name

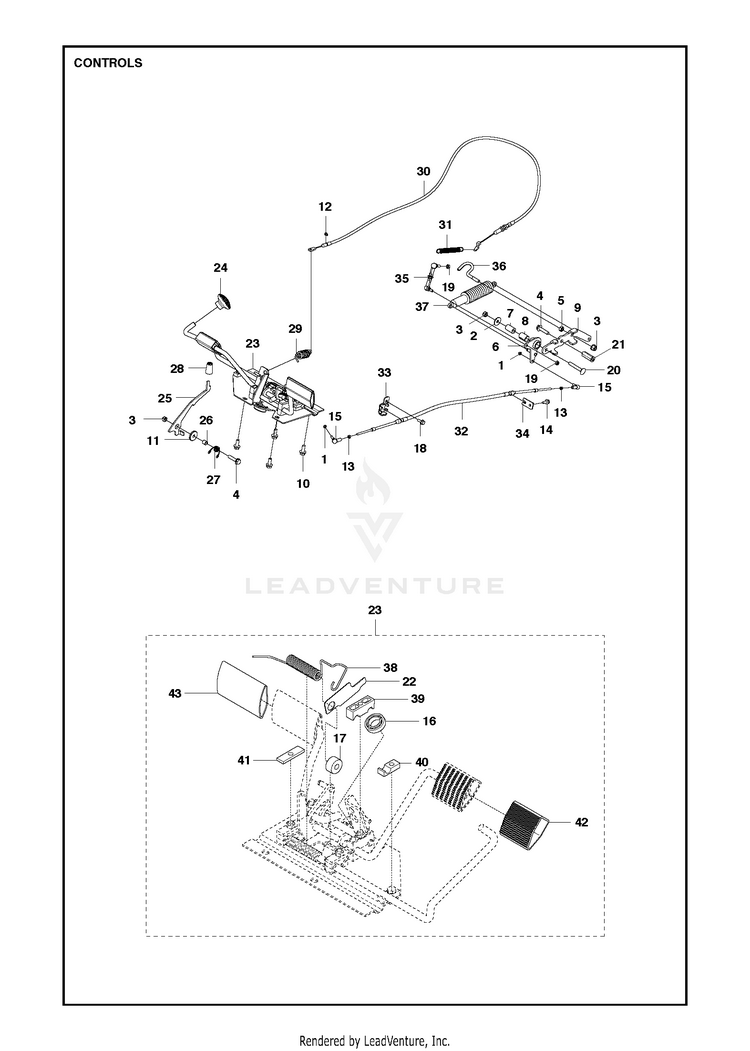

CONTROLS

...
...
10
BOLT HUS-506570104
...
5
NUT HUS-731231801
...
33
BRACKET HUS-522430801
...
39
PEDAL SHAFT CLAMP HUS-506506501
...
43
PEDAL RUBBER L = 102MM HUS-586966402
...
25
NEEDS DESCRIPTION HUS-577222501
...
21
NEEDS DESCRIPTION HUS-576434201
...
18
SCREW EHHFM HUS-535475212
...
3
NUT FLANGE HUS-576645704
...
7
BUSHING HUS-506992001
...
4
SCREW EHHFM HUS-506570106
...
23
NEEDS DESCRIPTION HUS-587257401
...
13
LOCKNUT M6 HUS-732211601
...
16
BALL BEARING 6002-2RS1 HUS-738210204
...
12
E-RING 5 HUS-735310920
...
30
NEEDS DESCRIPTION HUS-576830601
...
34
NEEDS DESCRIPTION HUS-577095201
...
36
NEEDS DESCRIPTION HUS-577357701
...
42
PEDAL RUBBER HUS-586966401
...
17
ROLLER HUS-535459901
...
22
PLATE HUS-535459601
...
20
NEEDS DESCRIPTION HUS-535423802
...
41
PLATE HUS-506804101
...
2
SPACER HUS-734116441
...
24
KNOB, THREADED HUS-586727401
...
35
NEEDS DESCRIPTION HUS-544441902
...
40
SUPPORT HUS-506954101
...
19
NUT HUS-731231401
...
6
NEEDS DESCRIPTION HUS-581784802
...
27
NEEDS DESCRIPTION HUS-504639001
...
15
CONNECTOR, BALL JOINT HUS-578776801
...
9
NEEDS DESCRIPTION HUS-577087201
...
26
NEEDS DESCRIPTION HUS-577222101
...
38
SPRING HUS-535459501
...
29
SPRING HUS-506946301
...
8
HUS-506986103
...
1
NUT FLANGE - M6 HUS-732251601
...
32
NEEDS DESCRIPTION HUS-535489303
...
14
SCREW HUS-725236461
...
31
NEEDS DESCRIPTION HUS-544133601
...
11
Washers HUS-584288604
...
28
NEEDS DESCRIPTION HUS-544367001
...
37
SHOCK ABSORBER HUS-506938301
