Husqvarna P4500F (2009-01) Trimmer/Edger

Model: P4500F (2009-01)

Back To Assemblies

Save Part Not Listed?
product name

Shaft

...
...
1
Assy-Throttle Cable HUS-530057566
...
2
Trigger HUS-530049107
...
3
Throttle Hsg. (Right) HUS-530058751
...
4
Screw HUS-530016406
...
5
Screw HUS-530015814
...
6
Bolt-Handle HUS-530015786
...
7
Throttle Hsg. (Left) HUS-530058750
...
8
Assy-Handle (Incl. 6,9) HUS-530058753
...
9
Wingnut HUS-530401992
...
10
Assy-Drive Shaft Hsg. HUS-545008316
...
11
Screw HUS-530015886
...
12
Shaft- Flex HUS-530096169
...
13
Line Limiter HUS-530052285
...
14
Screw HUS-530015814
...
15
Bolt-Shield HUS-530015820
...
16
Kit-Shield Assy (Incl.13,14) HUS-530071823
...
17
Bracket-Shield HUS-545150701
...
18
Screw HUS-530015775
...
19
Screw HUS-530016014
...
20
Assy-Gearbox HUS-530096099
...
21
Wingnut HUS-530401992
...
22
Head- Fixed Line HUS-545202401
...
23
Cap- Fixed line HUS-545202501
...
24
Line .095 round (5 pcs) HUS-545214501
...
24
Operator Manual Not Shown HUS-545186897
...
24
Decal-Shaft Warning Not Shown HUS-545144405

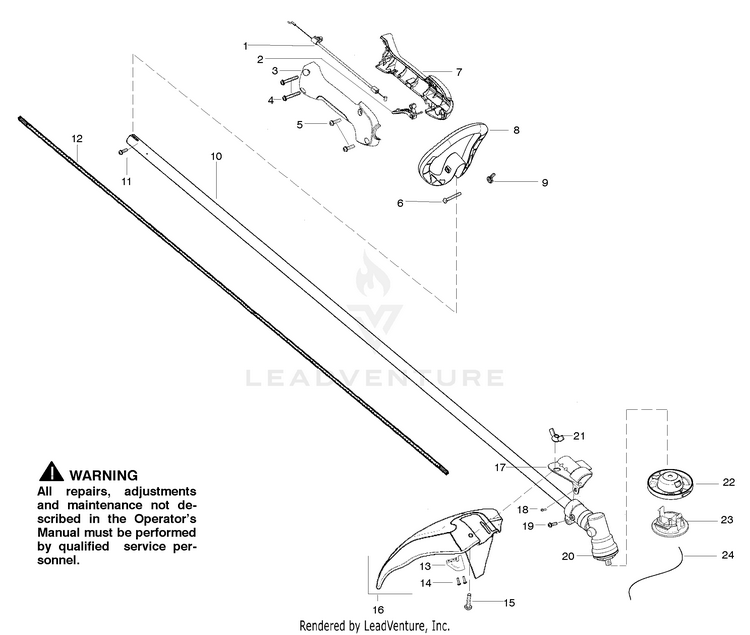

Schematic Image Zoomed
