Husqvarna P4500F (2009-01) Trimmer/Edger

Model: P4500F (2009-01)

Back To Assemblies

Save Part Not Listed?
product name

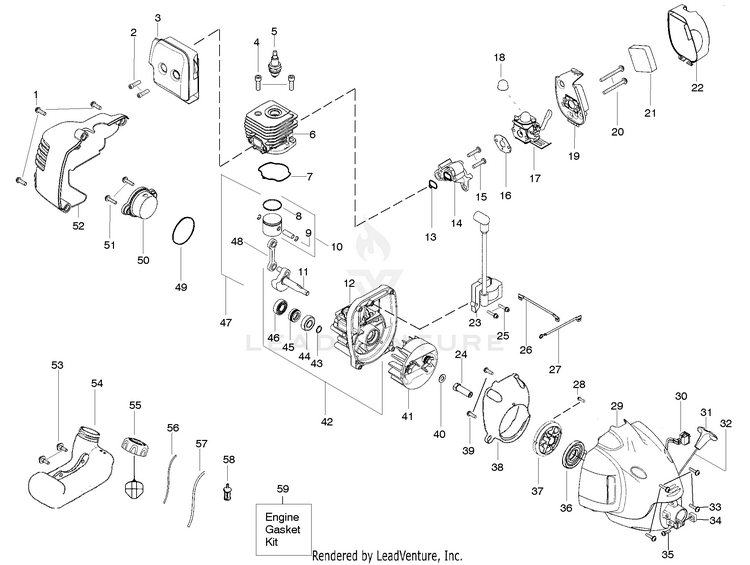

Engine

...
...
1
Screw HUS-530015880
...
2
Bolt-Muffler HUS-530058982
...
3
ASSY MUFFLER SHIELD (Incl. 2) HUS-545227901
...
4
Screw-Cylinder HUS-530015953
...
5
Spark Plug (RCJ 6Y) HUS-952030249
...
6
Cylinder HUS-530012541
...
7
Seal-Cylinder (kit) HUS-530071750
...
8
RING PISTON HUS-545154001
...
9
Retainer-Piston Pin HUS-530015162
...
10
Kit-Piston (Incl. 8, 9) HUS-530071833
...
11
Assy-Crankshaft HUS-530012555
...
12
Assy-Crankcase (Incl. 44,45,46) HUS-530012582
...
13
Seal-Cyl/Carb.(kit) HUS-530071750
...
14
Adapter-Carb. HUS-530057547
...
15
Screw HUS-530016441
...
16
Gasket-Carb. (kit) HUS-530071750
...
17
Kit-Carb Zama (C1U-W19) HUS-530071811
...
17
Kit-Carb Walbro ( WT-670) HUS-545081807
...
18
Bulb - Purge HUS-530058709
...
19
Air Box HUS-530059246
...
20
Screw HUS-530016429
...
21
Foam-Air Filter HUS-530036575
...
22
Cover-Air Box HUS-530057545
...
23
KIT MODULE W/O INTERRUPT HUS-545081826
...
24
Coupling-Drive HUS-530027953
...
25
Screw HUS-530016357
...
26
Assy-Leadwire HUS-530014663
...
27
Assy-Ground Wire HUS-530014662
...
28
Screw HUS-530016391
...
29
Assy.-Fan Hsg HUS-545008209
...
30
Kit-Switch HUS-545081869
...
31
Handle-Starter HUS-530058742
...
32
Kit - Rope HUS-530071798
...
33
Screw HUS-530016386
...
34
Nut 12-24 HUS-530016382
...
35
Screw 12-24 HUS-530016381
...
36
KIT STARTER SPRING HUS-545008011
...
37
Kit - Starter Pulley HUS-545081852
...
38
Baffle HUS-545080601
...
39
Screw HUS-530015880
...
40
Washer-Flat HUS-530015828
...
41
Assy-Flywheel HUS-530054115
...
42
Assy-C'case & C'shaft HUS-530071751
...
43
Retain. Ring-C'shaft HUS-530015941
...
44
Outer Bearing HUS-530055728
...
45
Seal-C'case HUS-530019264
...
46
BEARING BALL 6001 HUS-738210101
...
47
Kit - Piston / Rod (Incl. 10,48) HUS-530071785
...
48
CONNECTING ROD ASSY HUS-530049817
...
49
O-Ring-C'case (kit) HUS-530071750
...
50
Assy - Rear Plug (incl.49) HUS-530057954
...
51
Screw HUS-530016386
...
52
Shroud-Rear HUS-530058737
...
53
Retainer-Tank HUS-530016445
...
54
Assy-Fuel Tank HUS-545103702
...
55
Assy-Fuel Cap HUS-530058743
...
56
Kit-Fuel Line (Small) HUS-530069247
...
57
Kit-Fuel Line (Large) HUS-530069216
...
58
Assy-Fuel Pickup HUS-530095646
...
59
Kit-Engine Gasket (Incl. 7,13,16,49) HUS-530071750
...
59
Choke Lever - Zama Not Shown HUS-530057827
...
59
Choke Lever - Walbro Not Shown HUS-530058662
