Husqvarna P3818AV Type 2 (2008-07) Chain Saw

Model: P3818AV Type 2 (2008-07)

Back To Assemblies

Save Part Not Listed?
product name

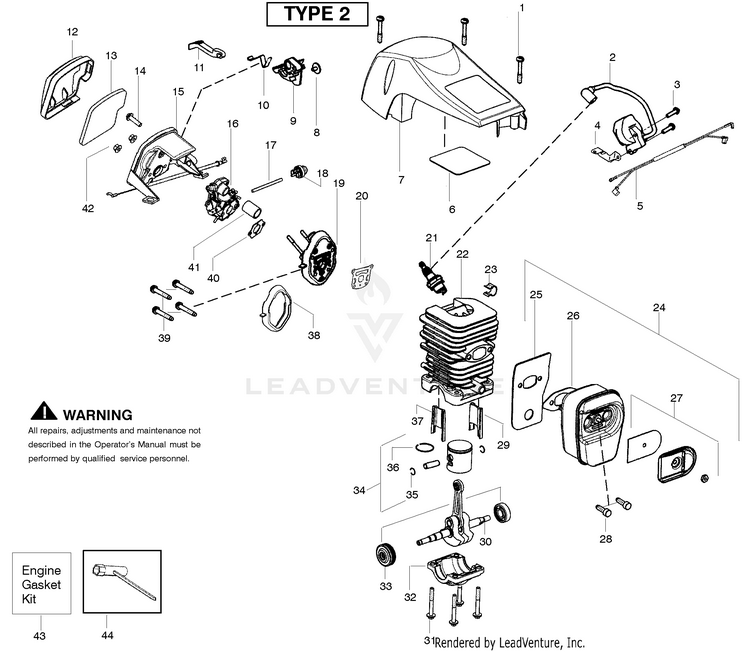

Engine - Type 2

...
...
1
Screw HUS-530016153
...
2
Module-Ignition HUS-530039232
...
3
Screw HUS-530016432
...
4
Strap-Ground HUS-530058661
...
5
Assy-Wire Harness HUS-530057943
...
6
Reflector-Tape HUS-530055698
...
7
Shield-Cylinder (Incl. 1,6) HUS-530057872
...
8
Screw HUS-530016080
...
9
Lever-Ignition Switch HUS-530057891
...
10
Spring-Ignition Switch HUS-530057908
...
11
Knob-Choke HUS-530059399
...
12
Cover-Air Filter HUS-530059001
...
13
Filter-Air HUS-530057869
...
14
Screw HUS-530016425
...
15
Housing-Air Filter w/cable HUS-530150029
...
16
Carb-Zama W-26B HUS-545070601
...
17
Kit-Fuel Line (Small) HUS-530069247
...
18
Bulb-Purge "snap-in" HUS-530047721
...
19
Kit-Carb. Adaptor ( Incl. # 20,38,41) HUS-530071889
...
20
Gasket-cyl. o-ring (kit) HUS-530071894
...
21
BPMR7A NGK SPARK PLUG HUS-503235111
...
22
Kit-Cylinder (Incl. 29,37) HUS-530071884
...
23
Clip-High Tension Lead HUS-530058660
...
24
Kit-Muffler (Incl. 25,26,27,28) HUS-545006007
...
25
Backplate-Muffler HUS-530057942
...
26
Gasket-Muffler (kit) HUS-530071894
...
27
Kit-Spark Arrestor HUS-545006056
...
28
Bolt-Muffler HUS-530016338
...
29
Insert-Left (black) Cyl. HUS-545015301
...
30
Assy-Crankshaft/Rod HUS-545112901
...
31
Bolt HUS-530016417
...
32
Cap-Crankcase HUS-530057941
...
33
Assy-Bearing/Seal HUS-530056363
...
34
Kit-Piston (Incl. 35,36) HUS-530071883
...
35
Retainer-Piston Pin HUS-530015697
...
36
Ring-Piston HUS-545160401
...
37
Insert-Right (gray) Cyl. HUS-545015401
...
38
Seal-Adaptor (kit) HUS-530071894
...
39
Screw HUS-530016426
...
40
Gasket-Carb. (kit) HUS-530071894
...
41
Tube-Intake HUS-530057926
...
42
Nut-Carb. HUS-530016101
...
43
Kit-Gasket (Incl . 20,26,38,40) HUS-530071894
...
44
Wrench-Bar HUS-530031163
...
44
Manual-Operator Not Shown HUS-545186804
...
44
Decal-Warning Not Shown HUS-530059905
