Husqvarna P3516PR Type 1 (2008-07) Chain Saw

Model: P3516PR Type 1 (2008-07)

Back To Assemblies

Save Part Not Listed?
product name

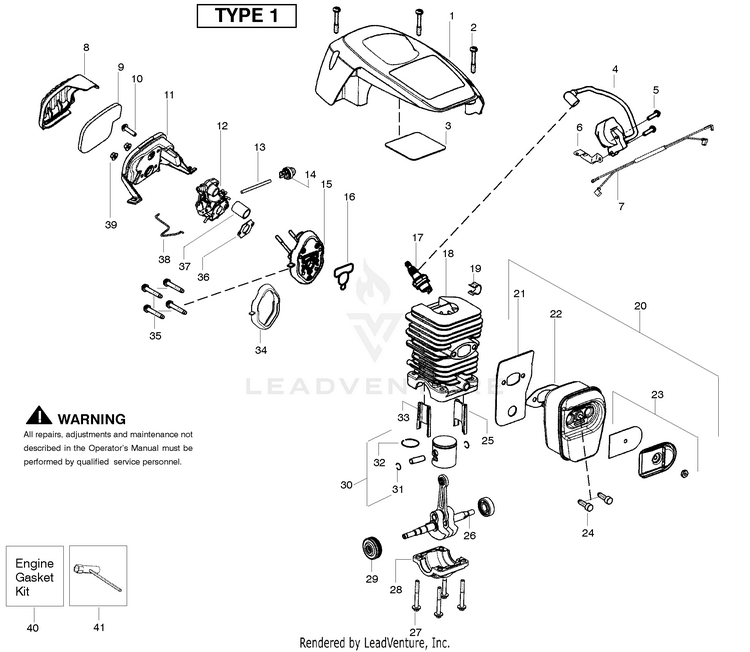

Engine - Type 1

...
...
1
Shield-Cylinder (incl. #3) HUS-530058838
...
2
Screw HUS-530016153
...
3
Reflector-Tape HUS-530059006
...
4
Module - Ignition HUS-530039198
...
5
Screw HUS-530016432
...
6
Strap-Ground HUS-530047442
...
7
Assy-Wire Harness HUS-530057943
...
8
Cover-Air Filter HUS-530058687
...
9
Filter-Air HUS-530057925
...
10
Screw HUS-530016425
...
11
Housing-Air Filter HUS-530057892
...
12
Carb-Zama W-26B HUS-545070601
...
13
Kit-Fuel Line (Small) HUS-530069247
...
14
Bulb-Purge "snap-in" HUS-530047721
...
15
Kit-Carb. Adaptor ( Incl. # 16,34,37) HUS-530071889
...
16
Gasket-cyl. o-ring (kit) HUS-530071894
...
17
BPMR7A NGK SPARK PLUG HUS-503235111
...
18
Kit-Cylinder (Incl. 25,33) HUS-530071884
...
19
Clip-High Tension Lead HUS-530016136
...
20
Kit-Muffler (Incl .21-23,24) HUS-545006007
...
21
Backplate-Muffler HUS-530057942
...
22
Gasket-Muffler (kit) HUS-530071894
...
23
Kit-Spark Arrestor HUS-530071886
...
24
Bolt-Muffler HUS-530016338
...
25
Insert-Left (black) Cyl. HUS-545015301
...
26
Assy-Crankshaft/Rod HUS-545112901
...
27
Bolt HUS-530016417
...
28
Cap-Crankcase HUS-530057941
...
29
Assy-Bearing/Seal HUS-530056363
...
30
Kit-Piston (Incl. 31,32) HUS-530071883
...
31
Retainer-Piston Pin HUS-530015697
...
32
Ring-Piston HUS-545160401
...
33
Insert-Right (gray) Cyl. HUS-545015401
...
34
Seal-Adaptor (kit) HUS-530071894
...
35
Screw HUS-530016426
...
36
Gasket-Carb. (kit) HUS-530071894
...
37
Tube-Intake HUS-530057926
...
38
Wire-Throttle HUS-530057909
...
39
Nut-Carb. HUS-530016101
...
40
Kit-Gasket (Incl . 16,22,34,36) HUS-530071894
...
41
Wrench-Bar HUS-530031163
...
41
Manual-Operator Not Shown HUS-545047535
...
41
Decal-Warning Not Shown HUS-530059107
...
41
DECAL START INST TEXT Not Shown HUS-545009901
