Husqvarna P3500 (2007-10) Trimmer/Edger

Model: P3500 (2007-10)

Save Part Not Listed?
product name

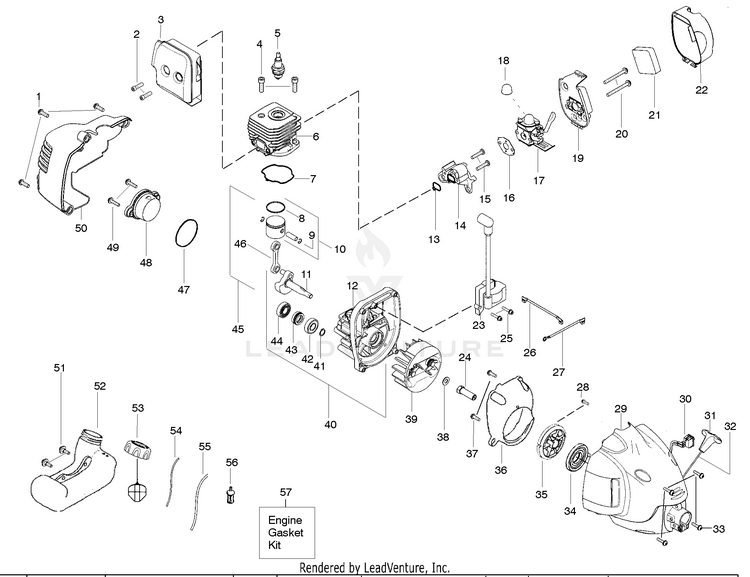

Engine

...
...
1
Screw HUS-530015880
...
2
Bolt-Muffler HUS-530058982
...
3
ASSY MUFFLER SHIELD (Incl. 2) HUS-545227901
...
4
Screw-Cylinder HUS-530015953
...
5
Spark Plug (RCJ 6Y) HUS-952030249
...
6
Cylinder HUS-530012541
...
7
Seal-Cylinder (kit) HUS-530071750
...
8
RING PISTON HUS-545154001
...
9
Retainer-Piston Pin HUS-530015162
...
10
Kit-Piston (Incl. 8, 9) HUS-530071833
...
11
Assy-Crankshaft HUS-530012555
...
12
Assy-Crankcase (Incl. 42,43,44) HUS-530012582
...
13
Seal-Cyl/Carb.(kit) HUS-530071750
...
14
Adapter-Carb. HUS-530057547
...
15
Screw HUS-530016441
...
16
Gasket-Carb. (kit) HUS-530071750
...
17
Kit-Carb. Zama (C1U-W18) HUS-530071752
...
17
Kit-Carb Walbro ( WT-670) (Note: Repair kits are not available for this carburetor) HUS-545081807
...
18
Purge Bulb Zama HUS-530058709
...
18
Purge Bulb Walbro HUS-530035497
...
19
Air Box HUS-530059246
...
20
Screw HUS-530016429
...
21
Foam-Air Filter HUS-530036575
...
22
Cover-Air Box HUS-530057545
...
23
KIT MODULE W/O INTERRUPT HUS-545081826
...
24
Coupling-Drive HUS-530027953
...
25
Screw HUS-530016357
...
26
Assy-Leadwire HUS-530014663
...
27
Assy-Ground Wire HUS-530014662
...
28
Screw HUS-530016391
...
29
Assy.-Fan Hsg HUS-545008211
...
30
Kit-Switch HUS-545081869
...
31
Handle-Starter HUS-530058742
...
32
Kit - Rope HUS-530071798
...
33
Screw HUS-530016386
...
34
KIT STARTER SPRING HUS-545008011
...
35
Kit - Starter Pulley HUS-545081852
...
36
Baffle HUS-545080601
...
37
Screw HUS-530015880
...
38
Washer-Flat HUS-530015828
...
39
Assy-Flywheel HUS-530054115
...
40
Assy-C'case & C'shaft (Incl. 11,12,41) HUS-530071751
...
41
Retain. Ring-C'shaft HUS-530015941
...
42
Outer Bearing HUS-530055728
...
43
Seal HUS-530019264
...
44
BEARING BALL 6001 HUS-738210101
...
45
Kit-Piston/Rod (Incl. 10,46) HUS-530071785
...
46
CONNECTING ROD ASSY HUS-530049817
...
47
O-Ring-C'case (kit) HUS-530071750
...
48
Assy - Rear Plug (incl.47) HUS-530057954
...
49
Screw HUS-530016386
...
50
Shroud-Rear HUS-530058737
...
51
Retainer-Tank HUS-530016445
...
52
Assy-Fuel Tank (incl. filter, lines & fuel cap) HUS-545103702
...
53
Assy-Fuel Cap HUS-530058743
...
54
Kit-Fuel Line (Small) HUS-530069247
...
55
Kit-Fuel Line (Large) HUS-530069216
...
56
Assy-Fuel Pickup HUS-530095646
...
57
Kit-Engine Gasket (Incl. 7,13,16,47) HUS-530071750
...
57
Choke Lever - Zama Not Shown HUS-530057827
...
57
Choke Lever - Walbro Not Shown HUS-530058662

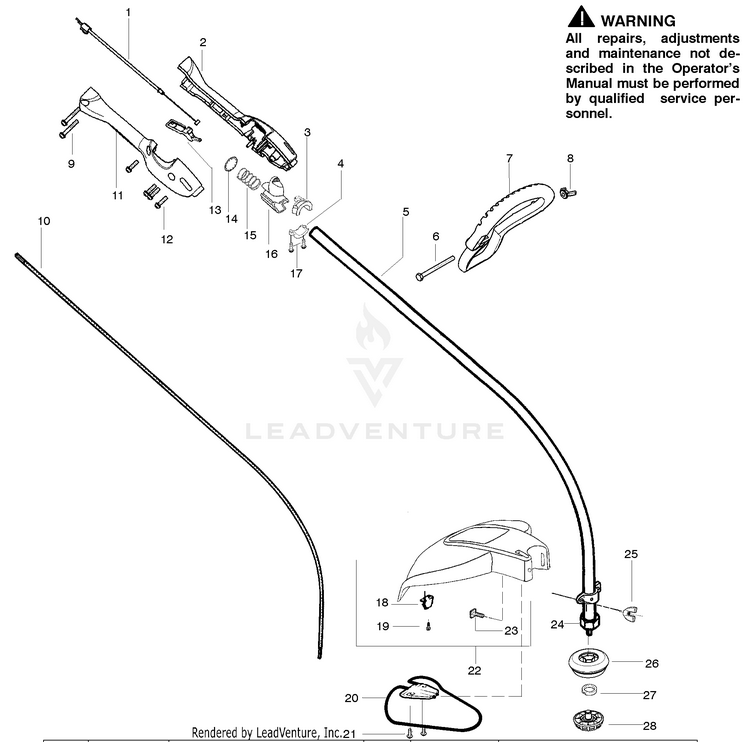

Shaft

...
...
1
Assy-Throttle Cable HUS-530057785
...
2
Throttle Hsg. (Left) HUS-530058747
...
3
Locator- left HUS-530057562
...
4
Locator- right HUS-530057563
...
5
Assy-Drive Shaft Hsg. (incl. 3,4,14,15,16,17,24) HUS-530071779
...
6
Bolt-Handle HUS-530016422
...
7
Handle-Assist HUS-530058752
...
8
Wingnut HUS-530401992
...
9
Screw HUS-530016406
...
10
Shaft- Flex HUS-545007502
...
11
Throttle Hsg. (Right) HUS-530058748
...
12
Screw HUS-530015814
...
13
Trigger HUS-530049107
...
14
Nut-Push HUS-530016405
...
15
Spring-Actuator HUS-530016407
...
16
Actuator HUS-530057551
...
17
Screw HUS-530016386
...
18
Kit - Line Limiter HUS-545081862
...
19
Screw-Line Limiter HUS-530015814
...
20
Assy-Wire Guard HUS-530054459
...
21
Screw HUS-530016179
...
22
Kit-Shield (Incl.18,19,23,25) HUS-530071749
...
23
Bolt-Shield HUS-530015820
...
24
Dust Cup HUS-530057559
...
25
Wingnut HUS-530401992
...
26
Accy- Spool w/Line HUS-952701720
...
27
Guide-Line HUS-530403949
...
28
Assy-Cap HUS-530054223
...
28
Operator Manual Not Shown HUS-545154718
...
28
Decal-Shaft Warning Not Shown HUS-545144402
