Husqvarna P3314 WS Type 2 (2008-07) Chain Saw

Model: P3314 WS Type 2 (2008-07)

Save Part Not Listed?
product name

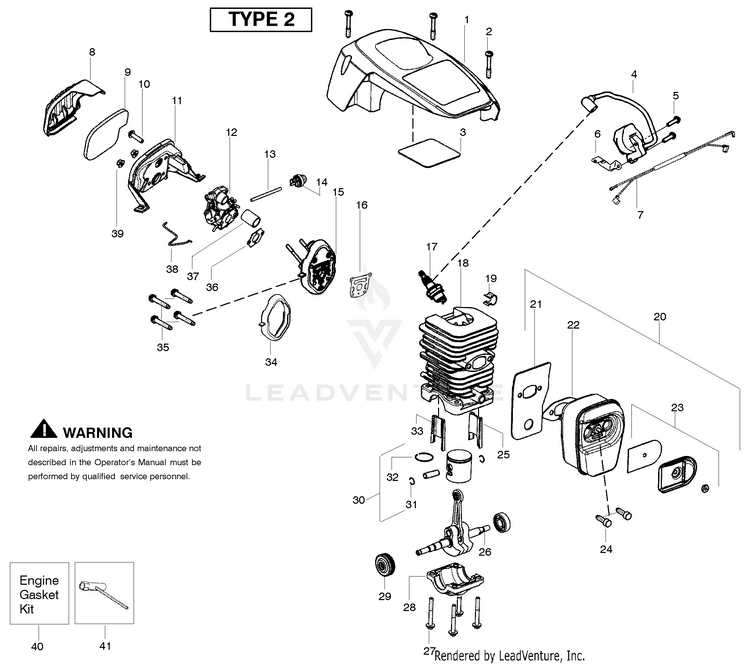

Engine - Type 2

...
...
1
Shield-Cylinder (incl. #3) HUS-530058837
...
2
Screw HUS-530016153
...
3
Reflector-Tape HUS-530059006
...
4
Module - Ignition HUS-530039198
...
5
Screw HUS-530016432
...
6
Strap-Ground HUS-530047442
...
7
Assy-Wire Harness HUS-530057943
...
8
Cover-Air Filter HUS-530058687
...
9
Filter-Air HUS-530057925
...
10
Screw HUS-530016425
...
11
Housing-Air Filter HUS-530057892
...
12
Carb-Zama W-26B HUS-545070601
...
13
Kit-Fuel Line (Small) HUS-530069247
...
14
Bulb-Purge "snap-in" HUS-530047721
...
15
Kit-Carb. Adaptor ( Incl. # 16,34,37) HUS-530071889
...
16
Gasket-cyl. o-ring (kit) HUS-530071894
...
17
BPMR7A NGK SPARK PLUG HUS-503235111
...
18
Kit-Cylinder (Incl. 25,33) HUS-530071884
...
19
Clip-High Tension Lead HUS-530016136
...
20
Kit-Muffler (Incl .21-23,24) HUS-545006007
...
21
Backplate-Muffler HUS-530057942
...
22
Gasket-Muffler (kit) HUS-530071894
...
23
Kit-Spark Arrestor HUS-545006056
...
24
Bolt-Muffler HUS-530016338
...
25
Insert-Left (black) Cyl. HUS-545015301
...
26
Assy-Crankshaft/Rod HUS-545112901
...
27
Bolt HUS-530016417
...
28
Cap-Crankcase HUS-530057941
...
29
Assy-Bearing/Seal HUS-530056363
...
30
Kit-Piston (Incl. 31,32) HUS-530071883
...
31
Retainer-Piston Pin HUS-530015697
...
32
Ring-Piston HUS-545160401
...
33
Insert-Right (gray) Cyl. HUS-545015401
...
34
Seal-Adaptor (kit) HUS-530071894
...
35
Screw HUS-530016426
...
36
Gasket-Carb. (kit) HUS-530071894
...
37
Tube-Intake HUS-530057926
...
38
Wire-Throttle HUS-530057909
...
39
Nut-Carb. HUS-530016101
...
40
Kit-Gasket (Incl . 16,22,34,36) HUS-530071894
...
41
Wrench-Bar HUS-530031163
...
41
Manual-Operator Not Shown HUS-545186804
...
41
Decal-Warning Not Shown HUS-530059107
...
41
DECAL START INST TEXT Not Shown HUS-545009901

Service Reference

...

No Parts Available for this Schematic

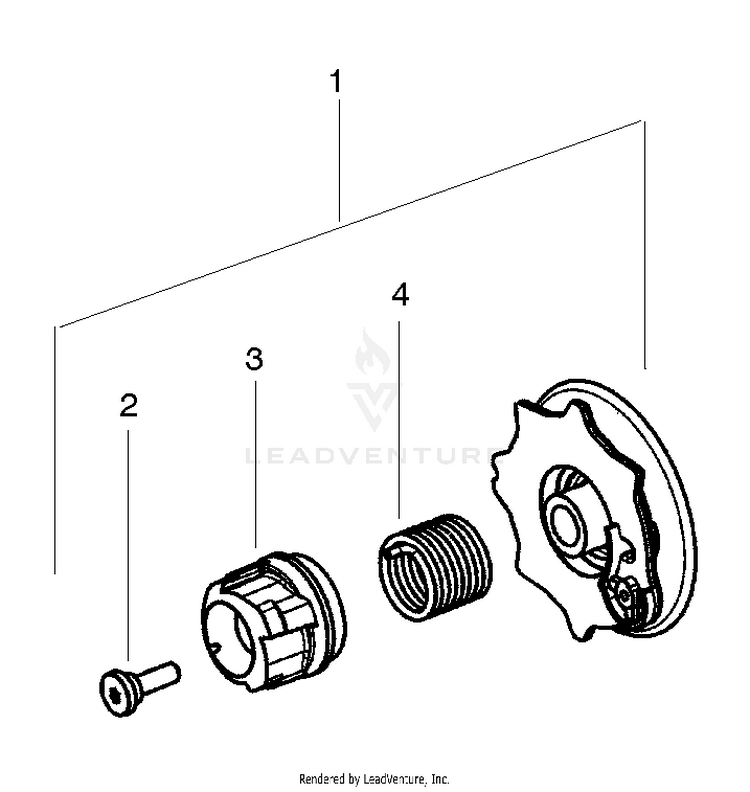

Spring Assist Pulley System

...
...
1
Kit -Starter Pulley HUS-530071966
...
2
Screw HUS-530021179
...
3
Hub HUS-530059677
...
4
Spring HUS-530021180

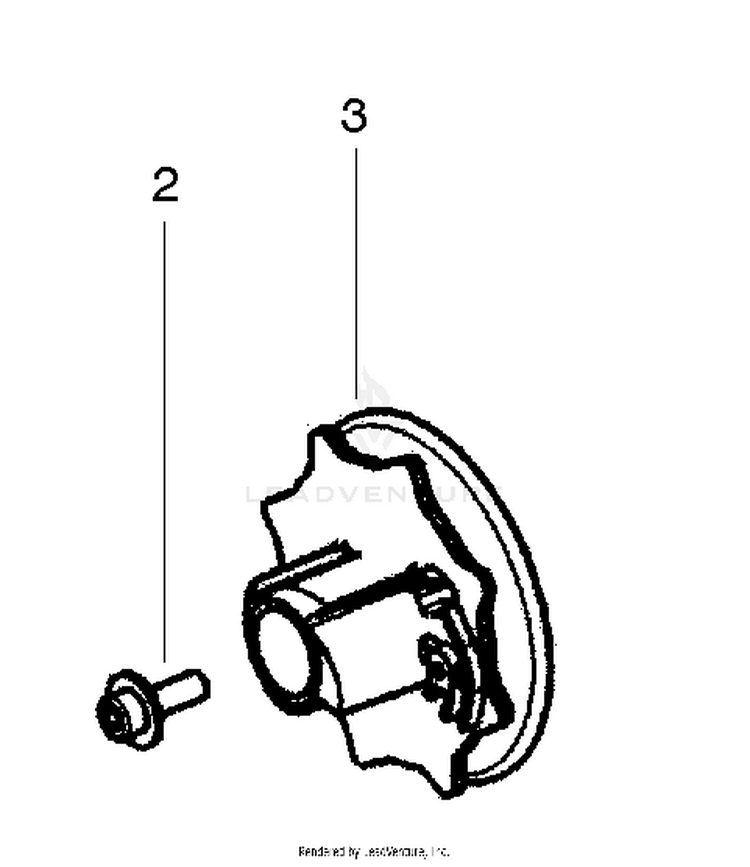

Standard Pulley System

...
...
2
Screw HUS-530015920
...
3
Pulley HUS-530057890

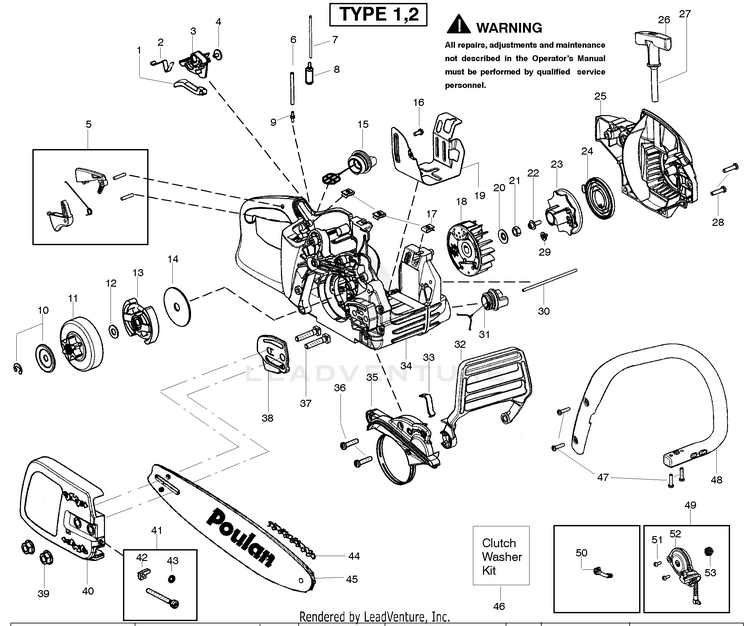

Starter - Type 1-2

...
...
1
Knob-Choke HUS-530057893
...
2
Spring-Ign. Switch HUS-530057908
...
3
Lever-Ign. Switch HUS-530057891
...
4
Screw HUS-530016080
...
5
Kit-Trigger/Lockout HUS-530071888
...
6
Kit-Fuel Line (Large) HUS-530069216
...
7
Kit-Fuel Line (Small) HUS-530069247
...
8
Assy-Fuel Pick-up HUS-530095646
...
9
Fitting-Fuel line HUS-530023877
...
10
Kit-Clutch Washer HUS-530071945
...
11
Assy-Clutch Drum 3/8" HUS-530057905
...
12
Kit-Clutch Washer HUS-530071945
...
13
Assy-Clutch HUS-530057907
...
14
Washer-Large Clutch HUS-530016419
...
15
FUEL CAP ASSY W/RET HUS-577858501
...
16
SCREW 6-19X.437 HUS-545227101
...
17
Nut-"U" type speed HUS-530015922
...
18
Assy-Flywheel HUS-530057937
...
19
Shield-Heat HUS-530057911
...
20
Washer-Flywheel HUS-530015127
...
21
Nut-Flywheel HUS-530016134
...
24
Kit-Starter Spring HUS-545008013
...
25
Housing-Fan HUS-530058810
...
26
Handle-Starter HUS-530056402
...
27
Kit-Rope HUS-530069232
...
28
Screw HUS-530016432
...
29
Screw HUS-530016080
...
30
Assy-Oil Vent HUS-530058786
...
31
Assy-Oil Cap w/ret. HUS-530057236
...
32
Handguard HUS-530057897
...
33
Spring-Handguard HUS-530016416
...
34
Assy-Chassis (Incl. 5,6,7,8,9,15,16, 17,19,31,33,37) HUS-530058870
...
35
Kit-Chainbrake HUS-530071893
...
36
Screw HUS-530016432
...
37
Bolt-Bar HUS-530016133
...
38
Plate-Bar HUS-530057910
...
39
Nut-Bar HUS-530015917
...
40
Assy-Clutch Cover (Incl. # 41) HUS-530058933
...
41
Kit-Bar Adjust (Incl. 42,43) HUS-530069611
...
42
Pin-Bar Adjust HUS-530015826
...
43
Retainer-Bar Adjust HUS-530038593
...
44
Accy-14" Chain HUS-952051209
...
45
Accy-14" Bar HUS-952044368
...
46
Kit-Clutch Washer (Incl. 10,12) HUS-530071945
...
47
Screw HUS-530016432
...
48
Handle-Front HUS-530057888
...
49
Kit-Oil Pump (Incl. 51,52,53) HUS-530071891
...
50
Assy-Oil Pick Up HUS-530057924
...
51
SCREW 6-19X.437 HUS-545227101
...
52
Assy-Oil Pump HUS-530057931
...
53
Gear-Worm HUS-530037820
