Husqvarna P325 (2010-04) Blower

Model: P325 (2010-04)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
(Incl 2 3 4) HUS-545168902
...
2
BOLT MUFFLER HUS-530058982
...
3
KIT GASKET 25CC HUS-545081832
...
4
SHIELD MUFFLER HEAT HUS-545098801
...
5
CYLINDER CHROME 25CC HUS-545115301
...
6
SCREW HUS-530015953
...
7
PLUG-SPARK (RCJ-6Y) HUS-952030249
...
8
ADAPTER CARBURETOR HUS-545084901
...
9
SCREW HUS-530016441
...
10
LINKAGE THROTTLE HUS-545115501
...
11
KIT CARBURETOR WT-875A (Incl 12 17) HUS-545081855
...
12
LEVER CHOKE WT-875 HUS-545157103
...
13
BASE AIRBOX RED HUS-545112603
...
14
SCREW HUS-530016429
...
15
AIR FILTER FOAM HUS-545116801
...
16
COVER AIRBOX BLACK HUS-545112702
...
17
PURGE BULB 188-16 HUS-530035497
...
18
KIT GASKET 25CC HUS-545081832
...
19
KIT GASKET 25CC HUS-545081832
...
20
KIT PISTON CONN ROD (Incl 21 22 23) HUS-545081864
...
21
RING-PISTON HUS-530012472
...
22
WRIST PIN RET. HUS-530015162
...
23
KIT PISTON CONN ROD FORGED HUS-545156002
...
24
KIT MODULE W/O INTERRUPT HUS-545081826
...
25
SCREW HUS-530016357
...
26
HARNESS WIRE HUS-545127601
...
27
KIT GASKET 25CC HUS-545081832
...
28
WASHER FLAT HUS-530015828
...
29
ASSY FLYWHEEL HUS-545197301
...
30
RETAINING RING HUS-530015941
...
31
OUTER BEARING HUS-530055728
...
32
Kit-Fuel Line (Small) HUS-530019264
...
33
BEARING BALL 6001 HUS-738210101
...
34
ASSY CRANKCASE (Incl 31 32 33) HUS-530012582
...
35
ASSY CRANKCASE & CRANKSHAFT (Incl 30 34) HUS-545102102
...
36
KIT GASKET 25CC HUS-545081832
...
37
ASSY REAR PLUG (Incl 36) HUS-530057954
...
38
SCREW HUS-530016386
...
39
KIT GASKET 25CC (Incl 3 18 19 27 36) HUS-545081832

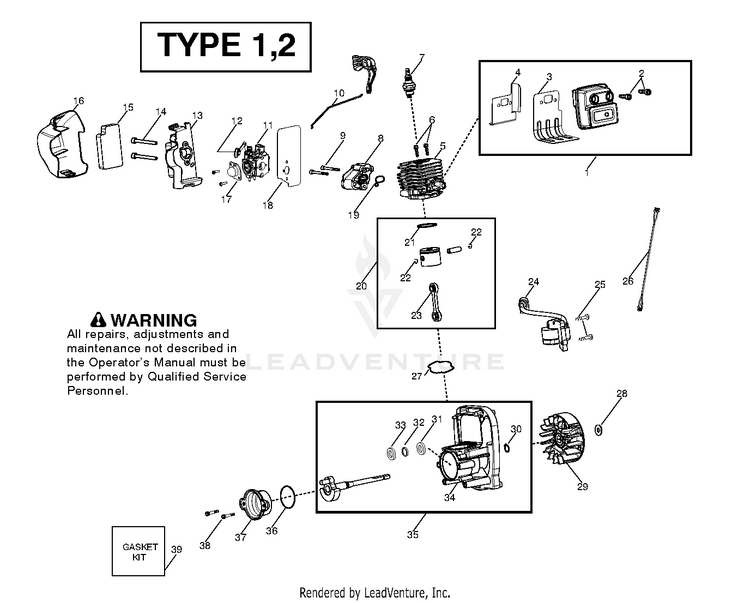

Schematic Image Zoomed
