Husqvarna P1500 (2007-10) Trimmer/Edger

Model: P1500 (2007-10)

Back To Assemblies

Save Part Not Listed?
product name

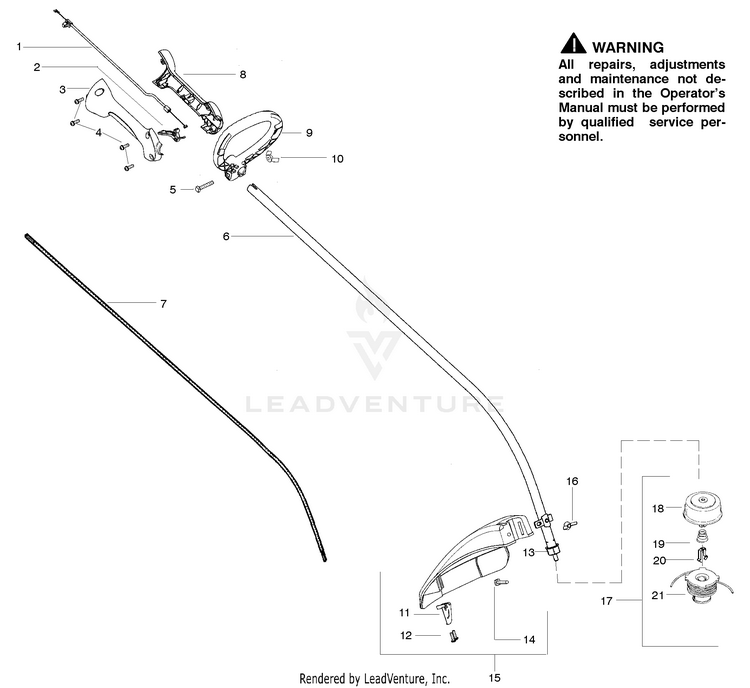

Shaft

...
...
1
Assy-Throttle Cable HUS-530057991
...
2
Trigger HUS-530049107
...
3
Throttle Hsg. (Right) HUS-530057582
...
4
Screw-Throttle Hsg. HUS-530015880
...
5
Bolt-Handle/Shield HUS-530015821
...
6
Kit-Drive Shaft Hsg. HUS-530071875
...
7
Shaft- Flex HUS-530096276
...
8
Throttle Hsg. (Left) HUS-530057581
...
9
KIT 3/4" ASSIST HANDLE (Incl. 5,10) HUS-530071747
...
10
Wingnut HUS-530401992
...
11
Line Limiter HUS-530052286
...
12
Screw HUS-530015957
...
13
Dust Cup HUS-530095563
...
14
Bolt HUS-530015820
...
15
Kit-Shield Assy (Incl. 11,12,14,16) HUS-530071795
...
16
Wingnut HUS-530401992
...
17
Accy-TNG VI Cutting Head (Incl. 18,19,20,21) HUS-952701723
...
18
KIT ASSY HUB W/ARBOR HUS-530071306
...
19
Spring-Compression HUS-530053241
...
20
Clip-Retainer-Head HUS-530401957
...
21
Accy- Spool w/Line HUS-952701719
...
21
Operator Manual Not Shown HUS-545154716
...
21
Decal-Shaft Warning Not Shown HUS-545144402
