Husqvarna P12597 - 96011023909 (2010-09) Tractor/Ride Mower

Model: P12597 - 96011023909 (2010-09)

Back To Assemblies

Save Part Not Listed?
product name

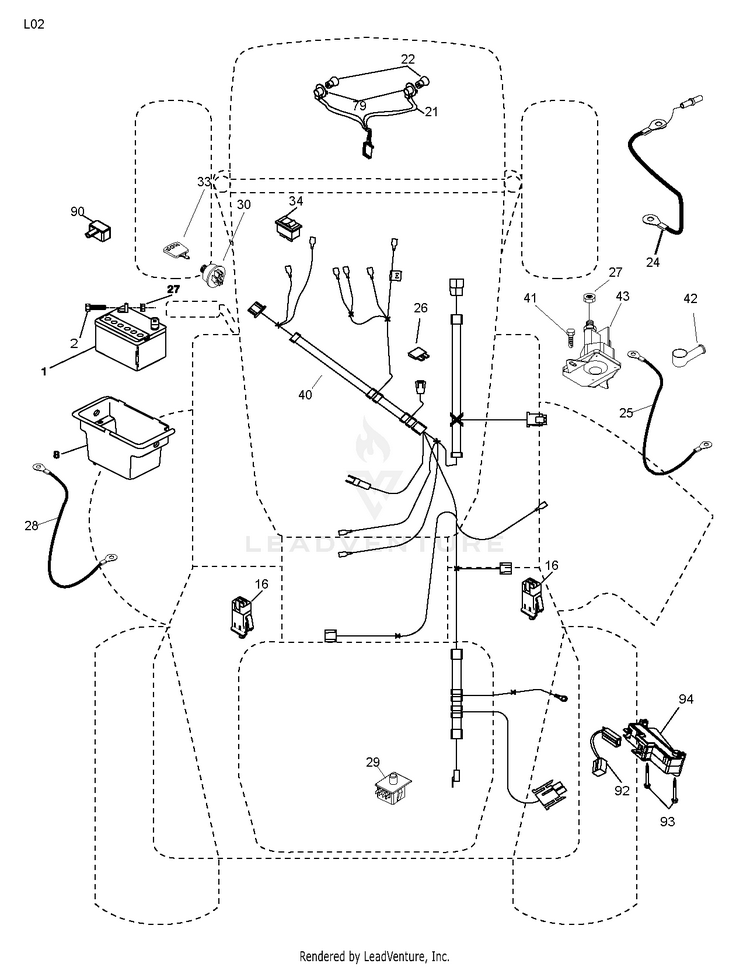

ELECTRICAL

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT LT HUS-874760412
...
8
BOX.BATTERY.FENDER HUS-532176689
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
21
HARNESS ASSY LIGHT HUS-532183759
...
22
LIGHTBULB HUS-532004152
...
24
CABLE.GROUND.REAR.BTRY.8GA.44" HUS-532421297
...
25
CABLE BATTERY 6 GA. 11" RED HUS-532421299
...
26
FUSE 20AMP HUS-532175158
...
27
Nut Crownlock 1/4-20 unc HUS-873680400
...
28
CABLE GROUND 6 GA. 12" BLACK HUS-532421298
...
29
SWITCH.SEAT.DP W/RAMPS HUS-532192749
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
34
SWITCH LT HUS-532110712
...
40
HARNESS.LT.CABLE.HL.AM.HM HUS-532421251
...
41
HCS.1/4-20.X1/2 HUS-539990071
...
42
Cover, Terminal Red HUS-532154336
...
43
SOLENOID.W/BRASS.PLUNG HUS-532192507
...
79
BULB HOLDER ASM. HUS-532175242
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
92
HARNESS.PIGTAIL.CONSLE HUS-532196615
...
93
SCREW.PLASTITE HUS-532192540
...
94
MODULE.REVERSE.ROS HUS-532191834
Schematic Image Zoomed
