Husqvarna P12597 - 96011023909 (2010-09) Tractor/Ride Mower

Model: P12597 - 96011023909 (2010-09)

Back To Assemblies

Save Part Not Listed?
product name

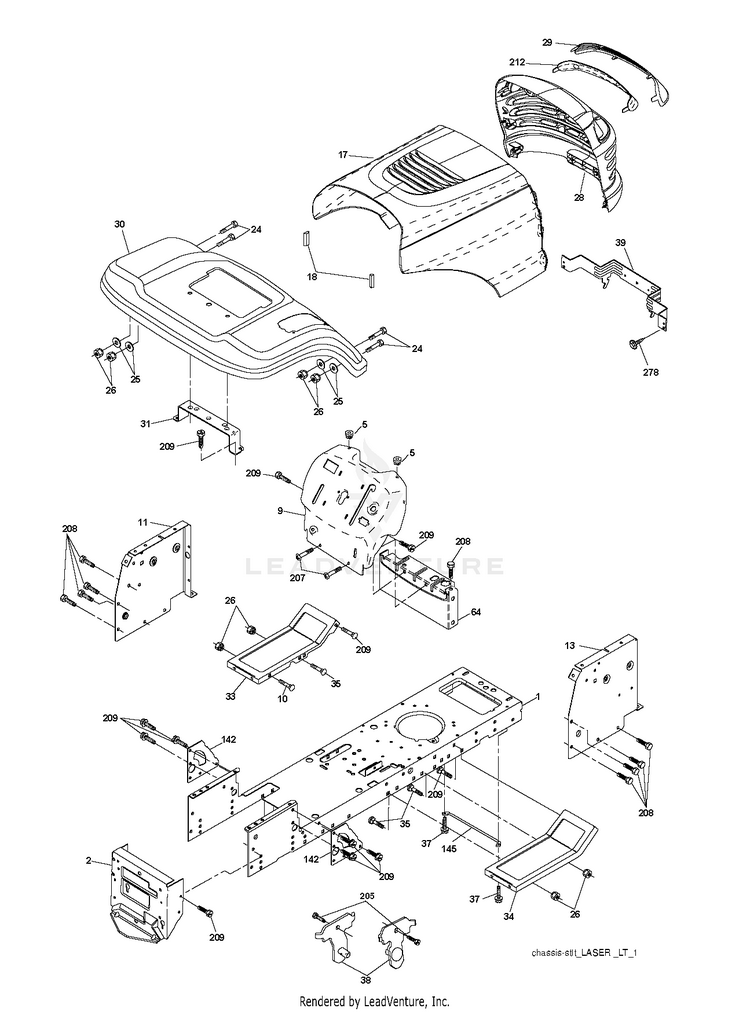

CHASSIS ENCLOSURES

...
...
1
CHASSIS STAMPING HUS-532174619
...
2
DRAWBAR, 12GA HUS-532176554
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
9
HUS-532194822
...
10
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
13
PANEL HUS-532172105
...
17
HUS-532182716
...
18
BUMPER.HOOD.LARGE.1.75" HUS-532184921
...
24
BOLT HUS-874780616
...
25
WASHER HUS-734117201
...
26
Nut HUS-873680600
...
28
HUS-532182717
...
29
HUS-532182717
...
30
HUS-532194198
...
31
BRACKET FENDER HUS-532136619
...
33
FOOTREST.LH HUS-532182507
...
34
FOOTREST.RH HUS-532182508
...
35
BOLT HUS-872110606
...
37
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
39
BRACKET PIVOT HUS-532407807
...
64
DASH LOWER HUS-532154798
...
142
PLATE REINFORCEMENT HUS-532175702
...
145
ROD.PIVOT.HOOD HUS-532409167
...
205
SCREW LT HUS-817490608
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
212
HUS-532175143
...
278
SCREW.#10 X 0.750.BOS THREAD HUS-532416358
...
--
PLUG BUTTON T HUS-532005479
