Husqvarna P-ZT54 - 966613402 (2012-08) Zero Turn: Commercial

Model: P-ZT54 - 966613402 (2012-08)

Back To Assemblies

Save Part Not Listed?
product name

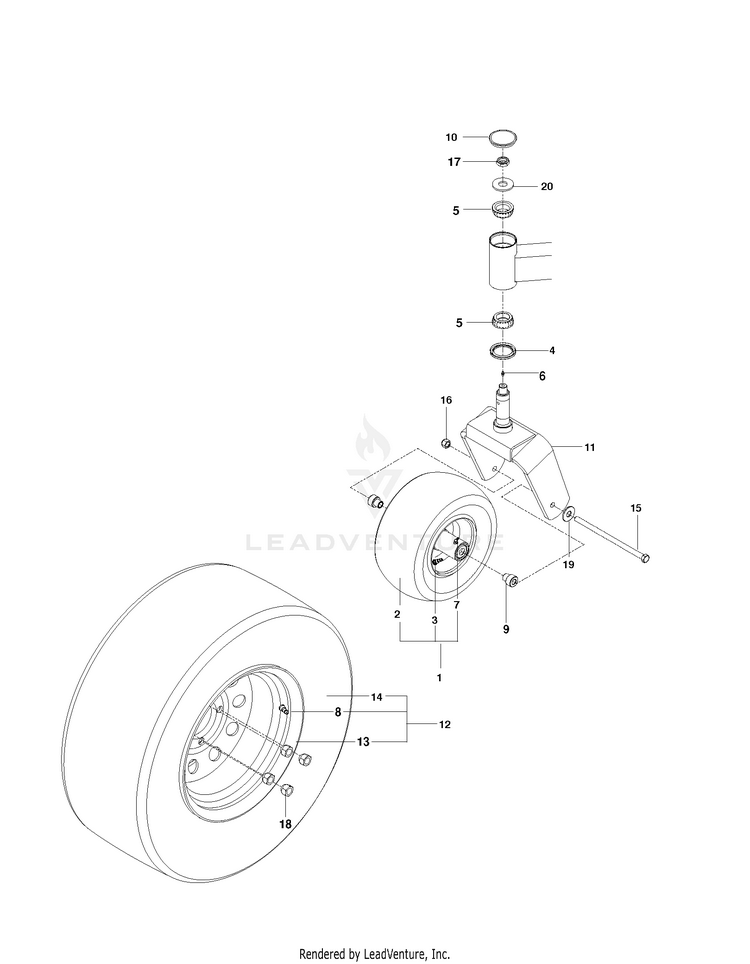

WHEELS TIRES

...
...
1
FRONT TIRE ASSY HUS-539105521
...
2
TIRE - SMOOTH 13X6.50-6 HUS-539105522
...
3
WHEEL.6X4.50.CASTER.SILVER HUS-575622101
...
4
SEAL, BEARING HUS-510034301
...
5
CONE, LM67048 HUS-510034403
...
6
Zerks HUS-596623501
...
7
ZERK HUS-539103300
...
8
VALVE STEM TR-412 HUS-539912234
...
9
AXLE SPACER HUS-539105518
...
10
Caps HUS-510034003
...
11
FORK.CASTER.ORANGE HUS-525611902
...
12
WHEEL/TIRE.ASM SILV 23X10.5-12 HUS-522905101
...
13
RIM, 12 X 8.5, 1.125" NEG OS HUS-522905102
...
14
TIRE.TURF.MASTER.23X10.5-12 HUS-539107431
...
15
GSPW Screws HUS-594946501
...
16
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
17
Nuts HUS-522842602
...
18
Nuts HUS-587653903
...
19
Washers HUS-595086801
...
20
Washers HUS-574824702
