Husqvarna P-ZT54 - 966613402 (2012-08) Zero Turn: Commercial

Model: P-ZT54 - 966613402 (2012-08)

Back To Assemblies

Save Part Not Listed?

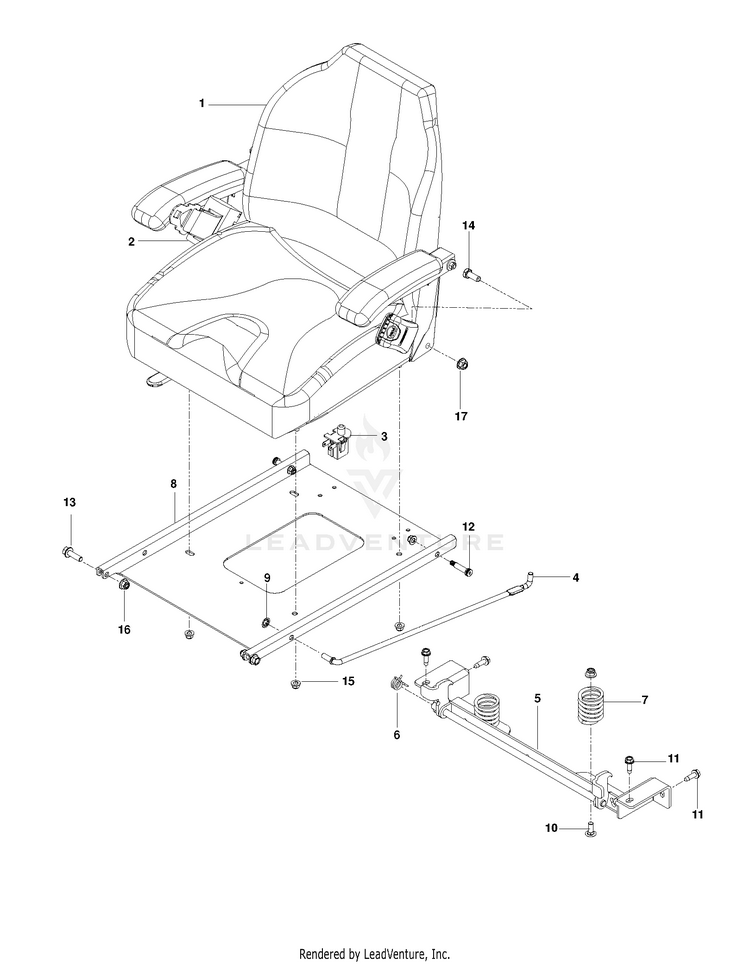

product name

SEAT

...
...
1
SEAT.ASM.907.TRACK.W/O.BELT HUS-501580402
...
2
BELT, SEAT HUS-576783401
...
3
SWITCH.SNAPMOUNT.NC HUS-532421062
...
4
Rods HUS-510064102
...
5
LATCH.SEAT.BLACK HUS-574182202
...
6
SPRING, TORSION HUS-520283101
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
8
PAN, SEAT, BLACK HUS-510039302
...
9
NUT 3/8 PALNUT RTNG BLK PHOS HUS-539913847
...
10
Bolts HUS-595316801
...
11
SCREW HEXAGON HEAD WITH COLLAR HUS-593337201
...
12
Bolts HUS-515990602
...
13
Screws HUS-525834202
...
14
Bolts HUS-596238601
...
15
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
16
GSPW Nuts HUS-521996502
...
17
NUT.LOCK.FLANGE.7/16 HUS-873900700
