Husqvarna Mondo Max (1997-04) Trimmer

Model: Mondo Max (1997-04)

Back To Assemblies

Save Part Not Listed?
product name

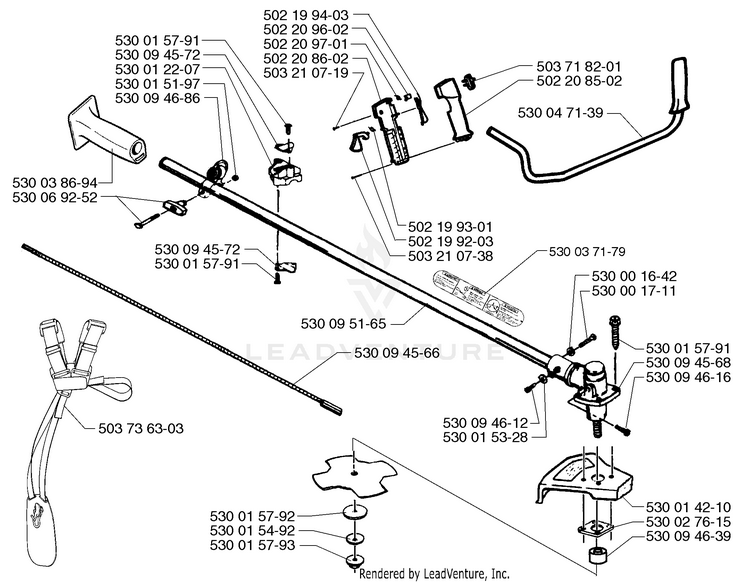

Mondo Mega Assembly

...
...
530015791
SCREW HUS-530015940
...
530094572
BRACKET-HANDLEBAR HUS-530094572
...
530012207
Handlebar Clamp HUS-530012207
...
530015197
NUT HUS-530015197
...
530094686
ASSY-CLAMP HARNESS HUS-530094686
...
502199403
THROTTLE LOCKOUT HUS-502199403
...
502209602
THROTTLE LOCK HUS-502209602
...
502209701
THROTTLE SPRING HUS-530403152
...
502208602
THROTTLE HOUSING-RH HUS-502208602
...
503210719
SCREW HUS-503210719
...
530038694
GRIP - DRIVE SHAFT HUS-530038694
...
530069252
HANDLE KIT HUS-530069347
...
530094572
BRACKET-HANDLEBAR HUS-530094572
...
530015791
SCREW HUS-530015940
...
502199301
SPRING HUS-503794101
...
502199203
THROTTLE TRIGGER HUS-502199203
...
503210738
SCREW HUS-503210738
...
530095165
DRIVE SHAFT TUBE HUS-530071284
...
530094566
SHAFT-FLEX (57"). HUS-530094566
...
530037179
DECAL HUS-530037179
...
530001642
LOCKWASHER HUS-530001642
...
530001711
SCREW-1/4-20X1 HEX SOC HUS-530001711
...
530015791
SCREW HUS-530015940
...
530094568
GEAR BOX REPLACEMENT KIT HUS-530071781
...
530094616
Screw HUS-530094616
...
530094612
SCREW-10-24 X 7/16 (HEX HUS-530094612
...
530015328
LOCKWASHER-LOCATOR-TYPE 2 HUS-530015328
...
530014210
SHIELD HUS-530014210
...
530027615
PLATE-SHIELD RETENTION HUS-530027615
...
503736303
HUS STANDARD HARNESS HUS-596296801
...
530015792
WASHER-FLAT. HUS-530015792
...
503718201
START/STOP SWITCH HUS-503718201
...
502208502
HANDLE HUS-502208507
...
530047139
Handlebar HUS-530047139
...
530015492
WASHER BELLVILLE HUS-530016240
...
530015793
NUT-FLANGE (LH) HUS-530015793
...
530094639
DUST CUP HUS-530094639
