Husqvarna Mondo Max (1997-04) Trimmer

Model: Mondo Max (1997-04)

Back To Assemblies

Save Part Not Listed?
product name

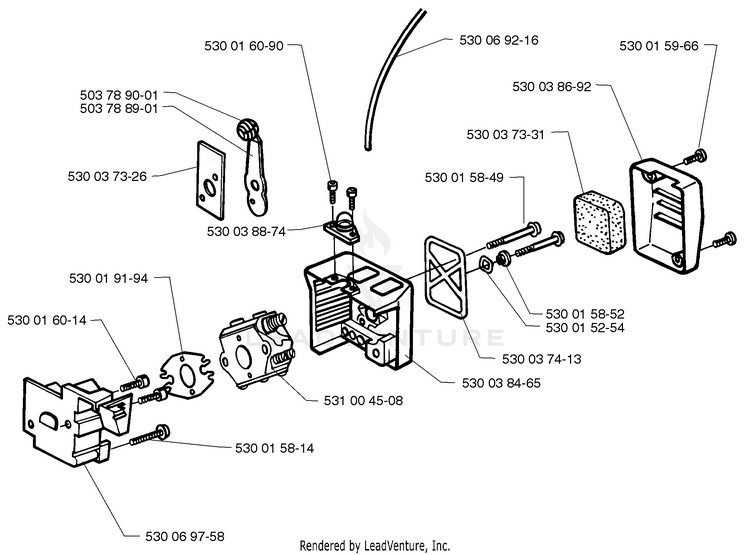

Air Filter/Carburetor

...
...
530038692
AIR FILTER COVER HUS-530038692
...
530037331
AIR FILTER FOAM HUS-530037331
...
530015849
SCREW HUS-530015849
...
530015852
CHOKE SPACER HUS-530015852
...
530015254
WASHER HUS-530015254
...
530037413
FILTER PLATE HUS-530037413
...
530038465
AIR BOX HUS-530038465
...
530038874
AIR PURGE BUBBLE HUS-530038874
...
531004508
CARBURETOR HUS-530071639
...
530015814
SCREW HUS-530015814
...
530019194
GASKET - CARBURETOR HUS-530019194
...
530016014
SCREW - CARB. ADAPTOR HUS-530016014
...
530069758
CARB ADAPTOR KIT HUS-530069758
...
530069216
KIT.LINE TANK/PURGE HUS-530069216
...
530015966
SCREW HUS-530015957
...
530016090
SCREW 6-19X5/8 PLAS.PAN HUS-530015780
...
506789001
HUS-506789001
...
506788901
HUS-506788901
...
530037326
CHOKE PLATE HUS-530037326
