product name

Husqvarna Mondo Max (1997-04) Trimmer

Model: Mondo Max (1997-04)

Back To Assemblies

Save Part Not Listed?
product name

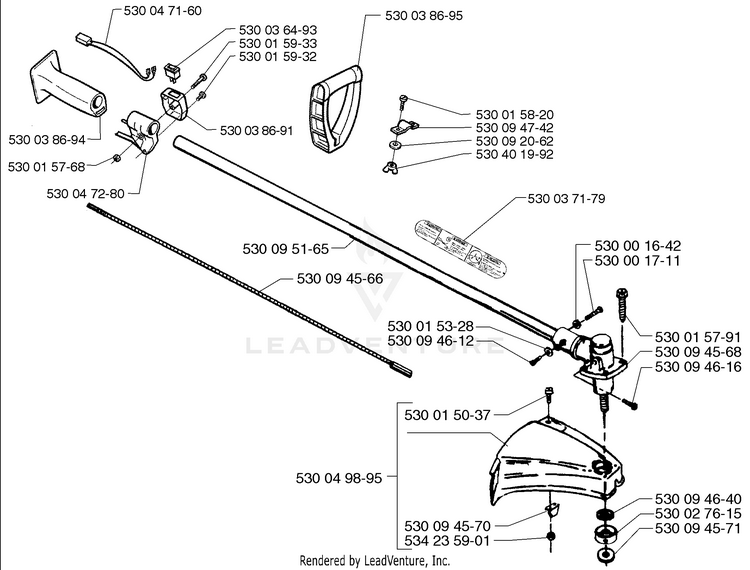

Mondo Max Assembly

...
...
530047160
LEAD WIRE ASSEMBLY HUS-530047160
...
530068694
SHEET-INSTRUCTION HUS-530068694
...
530015768
LOCKNUT-HEX 10-24 HUS-530015768
...
530047280
THROTTLE HOUSING ASSY HUS-530014646
...
530036493
SWITCH HUS-530036493
...
530015933
SCREW 10-24X1-5/8 HUS-530015933
...
530015932
SCREW-8-16X3/8 (PLASTIC) HUS-530015932
...
530038691
SWITCH COVER HUS-530038691
...
530038695
HANDLE HUS-530038695
...
530015820
BOLT, TYPE 2 HUS-530015820
...
530094742
CLAMP-ASSIST HANDLE HUS-530094742
...
530092062
WASHER HUS-530092062
...
530401992
NUT-"D" HANDLE HUS-530091373
...
530037179
DECAL HUS-530037179
...
530001642
LOCKWASHER HUS-530001642
...
530001711
SCREW-1/4-20X1 HEX SOC HUS-530001711
...
530015791
SCREW HUS-530015940
...
530094568
GEAR BOX REPLACEMENT KIT HUS-530071781
...
530094616
Screw HUS-530094616
...
530094640
SEAL HUS-530094640
...
530027615
PLATE-SHIELD RETENTION HUS-530027615
...
530094571
WASHER-GRASS HUS-530094571
...
530095165
DRIVE SHAFT TUBE HUS-530071284
...
530094566
SHAFT-FLEX (57"). HUS-530094566
...
530015328
LOCKWASHER-LOCATOR-TYPE 2 HUS-530015328
...
530094612
SCREW-10-24 X 7/16 (HEX HUS-530094612
...
530015037
SCREW HUS-530015037
...
530049895
SHIELD ASSY HUS-530049895
...
530094570
LIMITER-LINE HUS-530094570
...
531235901
HUS-531235901
