Husqvarna Mondo (1997-04) Trimmer

Model: Mondo (1997-04)

Back To Assemblies

Save Part Not Listed?

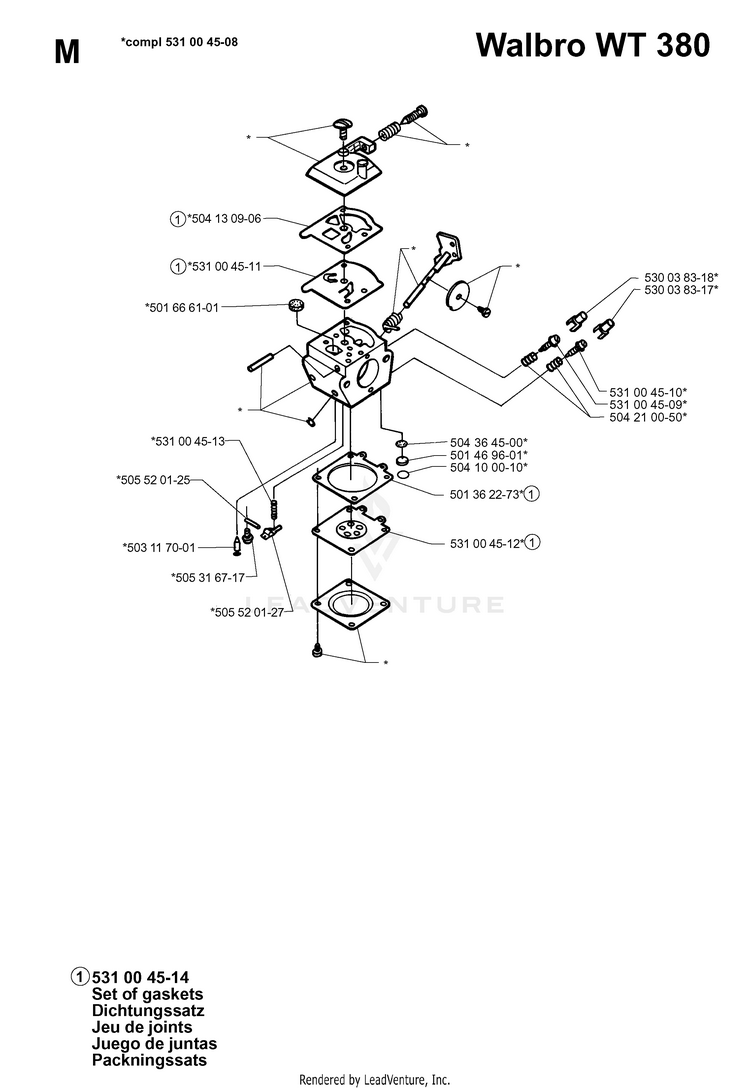

CARBURETOR DETAILS

501 36 22-73

GASKET 531 00 45-14 SET OF GASKETS HUS-501362273

503 11 70-01

VALVE/INLET. HUS-503117001

505 52 01-25

FULCRUM PIN HUS-505520125

504 13 09-06

GASKET 531 00 45-14 SET OF GASKETS HUS-504130906

531 00 45-11

PUMP DIAPHRAGM 531 00 45-14 SET OF GASKETS HUS-531004511

530 03 83-18

LIMITER CAP (HIGH-RED) HUS-530038318

504 10 00-10

CUP PLUG HUS-530035225

531 00 45-13

SPRING HUS-531004513

501 66 61-01

FUEL INLET SCREEN HUS-501666101

531 00 45-08

CARBURETOR HUS-530071639

504 21 00-50

NEEDLE SPRING HUS-530035293

530 03 83-17

LIMITER CAP (LOW-BLUE) HUS-530038317

505 52 01-27

LEVER HUS-505520127

501 46 96-01

HUS-501469502

531 00 45-12

DIAPHRAGM 531 00 45-14 SET OF GASKETS HUS-503896701

531 00 45-10

NEEDLE HIGH SPEED HUS-531004510

504 36 45-00

FILTER HUS-504364500

505 31 67-17

SCREW HUS-505316717

531 00 45-09

IDLE NEEDLE HUS-531004509
