Husqvarna Mondo (1995-03) Line Trimmer

Model: Mondo (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

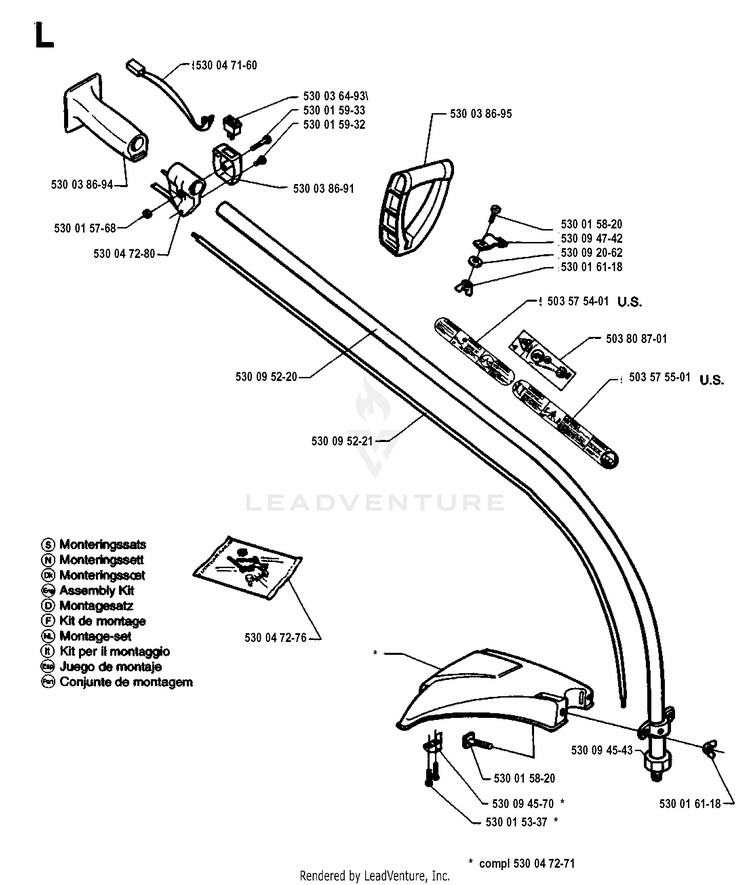

SHAFT & HANDLE

...
...
530 03 86-95
HANDLE HUS-530038695
...
530 04 72-80
THROTTLE HOUSING ASSY HUS-530014646
...
503 80 87-01
DECAL HUS-503901301
...
530 04 72-71
SHIELD HUS-530069666
...
530 01 53-37
SCREW HUS-530015337
...
530 09 47-42
CLAMP-ASSIST HANDLE HUS-530094742
...
530 01 59-33
SCREW 10-24X1-5/8 HUS-530015933
...
503 57 55-01
U.S. HUS-503575501
...
530 01 59-32
SCREW-8-16X3/8 (PLASTIC) HUS-530015932
...
530 04 72-76
HUS-530047276
...
530 03 86-94
GRIP - DRIVE SHAFT HUS-530038694
...
530 09 52-21
FLEX SHAFT HUS-530095221
...
530 03 86-91
SWITCH COVER HUS-530038691
...
530 09 52-20
DRIVE SHAFT HOUSING HUS-530095220
...
503 57 54-01
U.S. HUS-503575401
...
530 01 61-18
NUT-"D" HANDLE HUS-530091373
...
530 01 58-20
BOLT, TYPE 2 HUS-530015820
...
530 01 57-68
LOCKNUT-HEX 10-24 HUS-530015768
...
530 04 71-60
LEAD WIRE ASSEMBLY HUS-530047160
...
530 09 20-62
WASHER HUS-530092062
...
530 03 64-93
SWITCH HUS-530036493
...
530 09 45-70
LIMITER-LINE HUS-530094570
...
530 09 45-43
DUST CUP HUS-530094543
