Husqvarna Mondo (1995-03) Line Trimmer

Model: Mondo (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

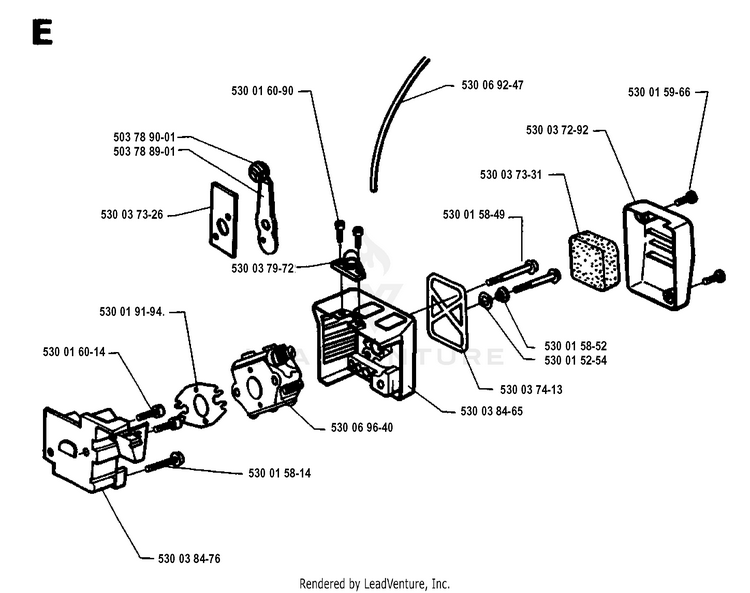

CARBURETOR & AIR FILTER

...
...
530 01 60-14
SCREW - CARB. ADAPTOR HUS-530016014
...
530 01 58-14
SCREW HUS-530015814
...
530 01 58-49
SCREW HUS-530015849
...
503 78 90-01
CHOKE KNOB HUS-503789001
...
530 03 84-76
CARB. ADAPTER HUS-530038476
...
530 06 92-47
HOSE. FUEL HUS-530069247
...
530 01 59-66
SCREW HUS-530015957
...
530 01 91-94
GASKET - CARBURETOR HUS-530019194
...
530 03 84-65
AIR BOX HUS-530038465
...
530 01 60-90
SCREW 6-19X5/8 PLAS.PAN HUS-530015780
...
530 03 72-92
AIR FILTER COVER HUS-530037292
...
530 01 58-52
CHOKE SPACER HUS-530015852
...
530 06 96-40
CARBURETOR HUS-530071639
...
530 01 52-54
WASHER HUS-530015254
...
530 03 79-72
AIR PURGE BUBBLE HUS-530038874
...
530 03 73-31
AIR FILTER FOAM HUS-530037331
...
503 78 89-01
CHOKE SHUTTER HUS-503788901
...
530 03 73-26
CHOKE PLATE HUS-530037326
...
530 03 74-13
FILTER PLATE HUS-530037413
