product name

Husqvarna Master Pro 2 T (1990-01) Walk Mower

Model: Master Pro 2 T (1990-01)

Save Part Not Listed?

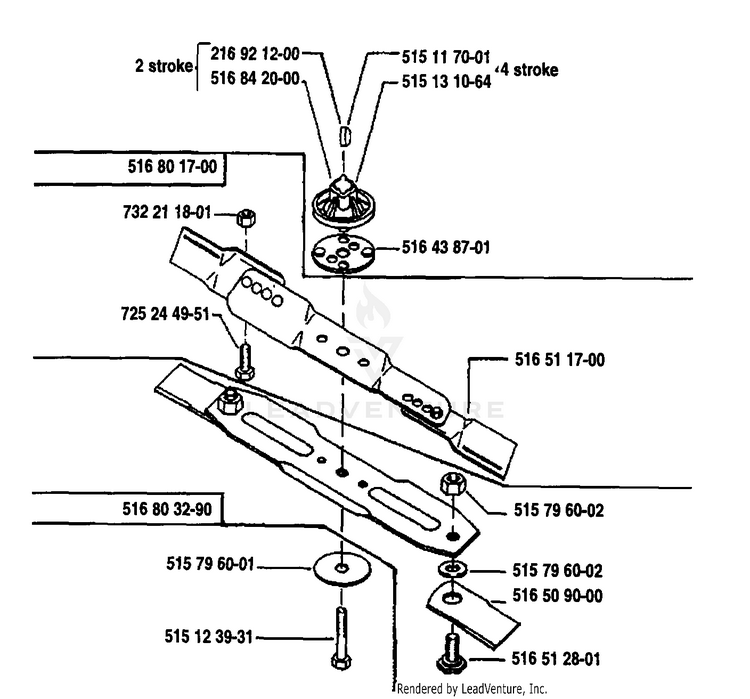

product name

Blade Assembly

...
...
515117001
KEY HUS-515117001
...
515131064
BLADE ADAPTER HUS-531005028
...
216921200
HUS-216921200
...
516842000
BLADE ADAPTER HUS-531005029
...
516438701
STEEL PLATE ADAPTER HUS-516438701
...
732211801
LOCKNUT M8 HUS-732211801
...
725244951
BOLT - M8X16 HUS-725244951
...
516801700
BLADE HUS-531005045
...
516511700
END PART HUS-516443300
...
515796002
Washer, Flat 1-1/2" x .375" x .062" HUS-734117341
...
515796002
Washer, Flat 1-1/2" x .375" x .062" HUS-734117341
...
516509000
CUTTER BLADE HUS-516509000
...
516803290
CUTTER BLADE HUS-516803290
...
515796001
WASHER HUS-515796001
...
515123931
SCREW HUS-515123931
...
516512801
SCREW HUS-516609803

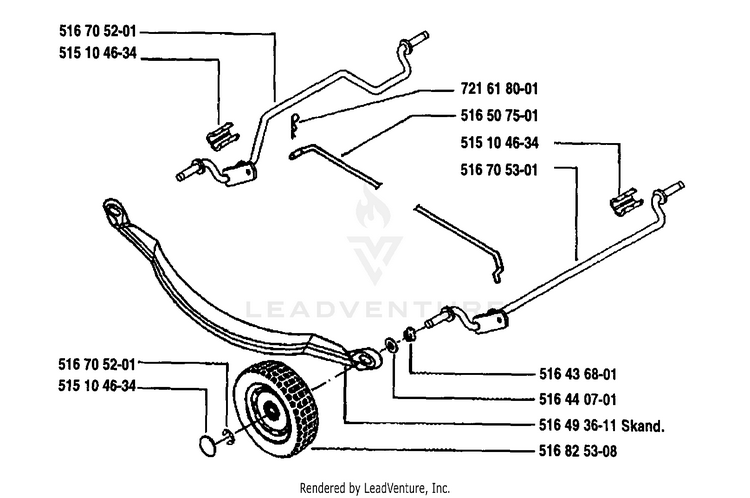

Chassis Assembly

...
...
516705201
SHAFT HUS-516705201
...
515104634
WHEEL BRG HUS-515104634
...
721618001
PIN HUS-721618001
...
515104634
WHEEL BRG HUS-515104634
...
516705301
HUS-516705301
...
516507501
STAY HUS-516507501
...
516436801
CONE SPRING HUS-516436801
...
516440701
WASHER HUS-516440701
...
516493611
PLATE NLA HUS-516609511
...
516825308
WHEEL HUS-516825308
...
516705201
SHAFT HUS-516705201
...
515104634
WHEEL BRG HUS-515104634

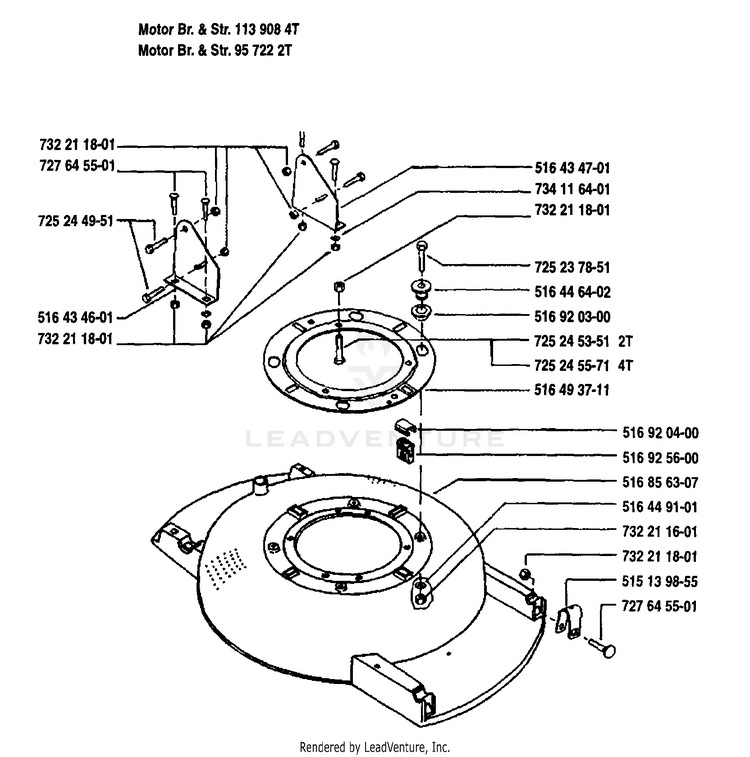

Frame Assembly

...
...
732211801
LOCKNUT M8 HUS-732211801
...
727645501
SCREW HUS-727645501
...
725244951
BOLT - M8X16 HUS-725244951
...
516434601
HANDLE BRACKET HUS-516434601
...
732211801
LOCKNUT M8 HUS-732211801
...
113908
HUS-113908
...
957222
HUS-957222
...
516434701
HANDLE BRACKET HUS-516434701
...
734116401
WASHER BRB 8.4X17 HUS-734116401
...
732211801
LOCKNUT M8 HUS-732211801
...
725237851
SCREW HUS-725237851
...
516446402
SPACER HUS-516446402
...
516920300
WASHER HUS-516939800
...
725245571
SCREW HUS-725245571
...
516493711
ADAPTER HUS-516493711
...
516920400
CAP HUS-516920400
...
516925600
DAMPER HUS-516940200
...
516856307
COVER HUS-517835207
...
516449101
WASHER HUS-516449101
...
732211601
LOCKNUT M6 HUS-732211601
...
725245351
SCREW HUS-725245371
...
732211801
LOCKNUT M8 HUS-732211801
...
515139855
BEARING HOLDER HUS-515139855
...
727645501
SCREW HUS-727645501

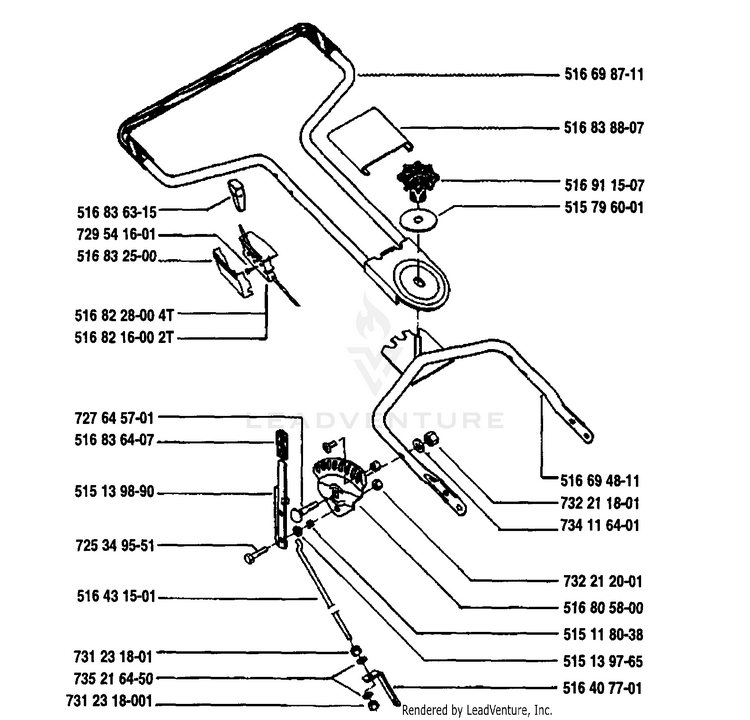

Handle Assembly

...
...
516836315
PLASTIC GRIP HUS-516836315
...
729541601
SCREW HUS-729541601
...
516832500
COVER HUS-516832500
...
516822800
THROTTLE TRIGGER HUS-516826700
...
516821600
THROTTLE TRIGGER HUS-516821600
...
727645701
SCREW HUS-727645701
...
516836407
HANDLE HUS-516874807
...
515139890
CLUTCH ARM, GREY HUS-13989011
...
725349551
HUS-725349551
...
516431501
ROD HUS-516431501
...
731231801
NUT HUS-731231801
...
735216450
HUS-735216450
...
731231801
NUT HUS-731231801
...
516407701
BRACKET HUS-516407701
...
515139765
Washer HUS-515139765
...
515118038
PRESSURE SPRING HUS-515118038
...
516805800
SEGMENT HUS-516805800
...
732212001
NUT HUS-732212001
...
734116401
WASHER BRB 8.4X17 HUS-734116401
...
732211801
LOCKNUT M8 HUS-732211801
...
516694811
LOWER HANDLE HUS-516694811
...
516698711
HANDLE UPPER HUS-516698711
...
516838807
PLASTIC HANDLE PANEL HUS-516838807
...
516911507
WHEEL HUS-516911507
...
515796001
WASHER HUS-515796001
