Husqvarna MZD 52 - 968999781 (2010-03) Zero Turn Mower

Model: MZD 52 - 968999781 (2010-03)

Save Part Not Listed?
product name

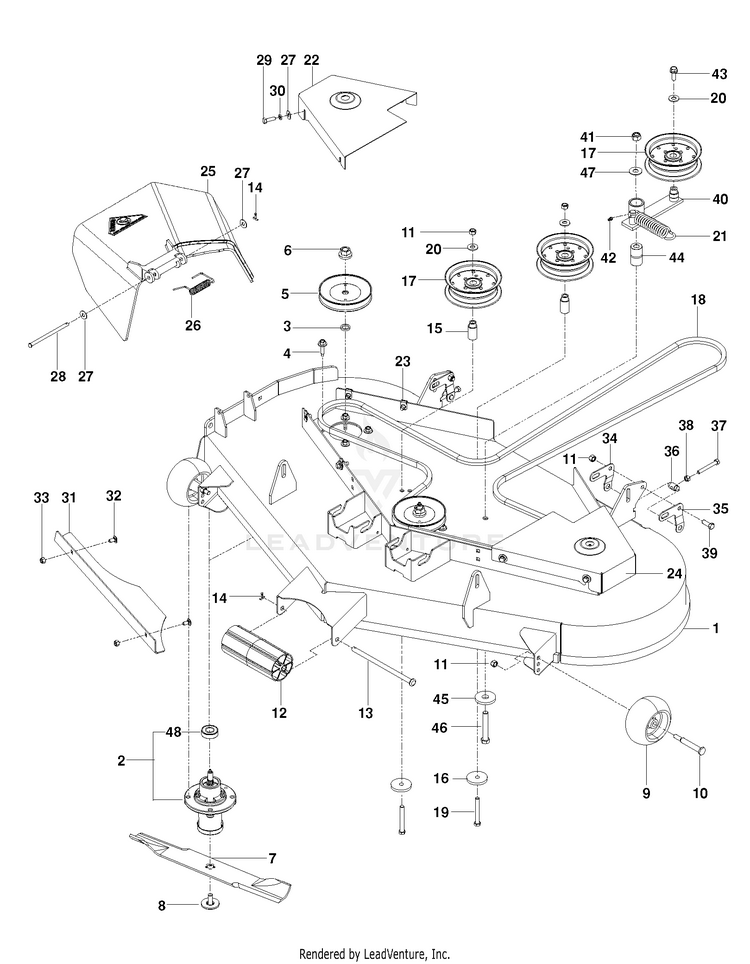

MOWER DECK / CUTTING DECK

...
...
33
Nuts HUS-596583702
...
42
GSPW Zerks HUS-596899901
...
25
DISCHARGE CHUTE 52" HUS-539110733
...
12
NOSE ROLLER 48" HUS-532176066
...
17
Pulleys HUS-589766102
...
19
HCS 3/8C X 3 HUS-539101341
...
34
PITCH, ADJUST, RT HUS-539131857
...
30
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
21
SPRING HUS-539103256
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
37
Screws HUS-596437101
...
13
Rods HUS-594092501
...
1
DECK SVC MZT 52 W/DECALS.ORNG HUS-581505301
...
5
PULLEY MANDREL HUS-532173436
...
9
WHEEL GAGE DONUT HUS-532133957
...
32
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
14
Pins HUS-596029501
...
39
Bolts HUS-596564401
...
3
WASHER.SPACER.MANDREL HUS-532187690
...
31
PLATE CONFINEMENT 52" PLATE.PN HUS-593565003
...
18
BELT.DECK.52".54" HUS-539114557
...
22
BELT SHIELD, RIGHT 52, ORG HUS-539112242
...
38
Nuts HUS-596582601
...
24
BELT SHIELD, LEFT 52, ORG HUS-539112244
...
40
IDLER ARM HUS-539112198
...
36
Nuts HUS-596565501
...
48
BEARING, BALL HUS-539112050
...
10
Bolts HUS-596434404
...
27
GSPH HUS-596134901
...
47
Washers HUS-595316401
...
20
GSPW Washers HUS-596433701
...
29
Bolts HUS-596580801
...
11
GSPW Nuts HUS-596240901
...
35
PITCH, ADJUST, LT HUS-539131858
...
45
Washers HUS-596437501
...
23
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
44
PIVOT BUSHING HUS-539103427
...
26
Springs HUS-596646001
...
4
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
46
HCS 1/2C X 3 1/4 HUS-539103433
...
2
MANDREL.DECK.ASSEMBLY HUS-539112170
...
41
GSPW NUTS HUS-596135601
...
43
Screws HUS-596583101
...
16
Washers HUS-596770301
...
7
BLADE, 18" HUS-539112079
...
6
Nuts HUS-596134801
...
15
Bushings HUS-596841501
...
28
Pins HUS-595935501
