product name

Husqvarna MZ 54 Zero Turn Mower

Model: MZ 54

Back To Assemblies

Save Part Not Listed?
product name

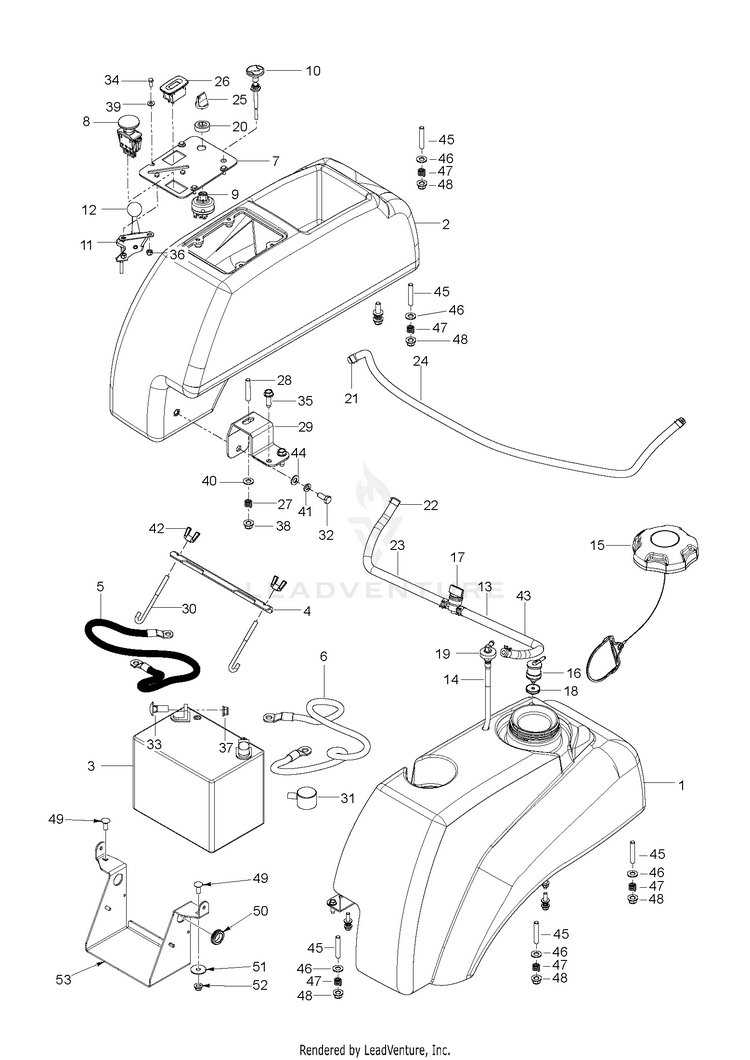

IGNITION SYSTEM

...
...
34
SWITCH, IGNITION, INDAK For 97045580100 HUS-574455401
...
11
THROTTLE CABLE W/KNOB For all EXCEPT 967696001-00, 967696001-01 HUS-597873201
...
21
CLAMP, HOSE HUS-575436501
...
27
SPRING HUS-539102845
...
52
GSPW Nuts For 97045580100 HUS-521996502
...
30
Hooks HUS-510064002
...
34
Screws For all EXCEPT 97045580100 HUS-596582801
...
28
STUD, 5/16C HUS-539102502
...
33
GSPW Bolts For 97045580100 HUS-595901601
...
16
VALVE.FUEL.CHECK HUS-576618101
...
36
Hardware HUS-596040801
...
29
SUPPORT.PNT.TANK.FRONT.STAMPED HUS-588843202
...
1
Tanks HUS-598664901
...
7
PLATE.PNT.CONSOLE.MZ.EDIP HUS-592877402
...
37
WING NUT 1/4 For 967696101-00, 967696102-00, 96769610201 HUS-539990997
...
3
BATTERY, 12 V 300 AMP DRY For all EXCEPT 96795370100, 967953702-00, 97045580100 HUS-579411601
...
11
THROTTLE For 967696001-00, 967696001-01 HUS-597524002
...
41
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
10
CHOKE CABLE For all EXCEPT 967696001-00, 967696001-01 HUS-539112439
...
2
FENDER CONSOLE HUS-539107593
...
26
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
38
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
43
HOSE.1/4".LOW.PERM.FUEL.LN.26" For 967696001-00, 967696001-01 HUS-587044826
...
50
RUBBER GROMMET For 97045580100 HUS-539105974
...
8
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
35
SCREW HEXAGON HEAD WITH COLLAR HUS-593337201
...
51
Washers For 97045580100 HUS-596133301
...
44
WASHER 11/32 X 11/16 X 14 GA T For 96795370100 HUS-596204101
...
32
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
3
BATTERY, 12 V 300 AMP DRY For 96795370100, 967953702-00, 97045580100 HUS-579411601
...
23
HOSE.1/4".LOW.PERM.FUEL.LN.10" HUS-587044810
...
45
STUD, 5/16C For 967696102-00 HUS-539102502
...
53
BRACKET BATTERY BLACK MS-431 For 97045580100 HUS-594037402
...
24
HOSE.3/16".VAPOR.LINE.39"LGTH For 967696001-00 HUS-587044539
...
14
FITTING, FUEL HUS-576469201
...
25
KEY, IGNITION HUS-574455501
...
9
SWITCH, IGNITION, INDAK HUS-574455401
...
40
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
39
WASHER HUS-819070818
...
48
NUT HEXAGON FLANGE 5/16-18 ST For 967696102-00 HUS-594944401
...
4
Brackets For all EXCEPT 96795370100, 967953702-00 HUS-593634404
...
xx
HARNESS.MAIN.MZ.SM.CLTCH.BRAKE For 96795370100, 967953702-00 HUS-585999702
...
31
COVER.TERMINAL.BATTERY HUS-532435395
...
47
SPRING For 967696102-00 HUS-539102845
...
13
FUEL.HOSE.SHUT.OFF.ASM.10".10" For all EXCEPT 967696001-00, 967696001-01 HUS-586123903
...
24
HOSE.3/16".VAPOR.LINE.27"LGTH For all EXCEPT 967696001-00, 967696001-01 HUS-587044527
...
4
Brackets For 96795370100, 967953702-00, 97045580100 HUS-593634404
...
15
CAP 3.5IN SEALED HUS-575018103
...
10
CHOKE CONTROL CABLE 57" For 967696001-01 HUS-584971801
...
13
FUEL.HOSE.SHUT.OFF.ASM.10".26" For 967696001-00, 967696001-01 HUS-586123901
...
18
GROMMET.CHECK.FUEL HUS-584648201
...
24
HOSE.3/16".VAPOR.LINE.55"LGTH For 967696001-01 HUS-587044555
...
37
NUT HEXAGON FLANGE 5/16-18 ST For 97045580100 HUS-594944401
...
12
KNOB.ROUND.BALL.BLACK HUS-539133049
...
6
CABLE.BATT.SOLENOID.MZ.RED.25" HUS-588030701
...
33
GSPW Bolts For all EXCEPT 97045580100 HUS-595901601
...
37
NUT HEXAGON FLANGE 5/16-18 ST For all EXCEPT 967696101-00, 967696102-00, 96769610201 HUS-594944401
...
22
HOSE CLAMP HUS-532123487
...
xx
HARNESS MAIN MZ For all EXCEPT For 96795370100, 967953702-00 HUS-585999701
...
5
CABLE.GROUND.BATT.MZ.BLACK.39" HUS-588030801
...
20
CAP IGNITION NUT HUS-539103178
...
49
Bolts For 97045580100 HUS-595316801
...
42
WING NUT 1/4 HUS-539990997
...
10
CABLE, CHOKE For 967696001-00 HUS-539113458
...
19
RUBBER GROMMET HUS-539105245
...
17
FUEL VALVE HUS-539916325
...
46
WASHER 11/32 X 11/16 X 14 GA T For 967696102-00 HUS-596204101
