product name

Husqvarna MZ 54 Zero Turn Mower

Model: MZ 54

Back To Assemblies

Save Part Not Listed?
product name

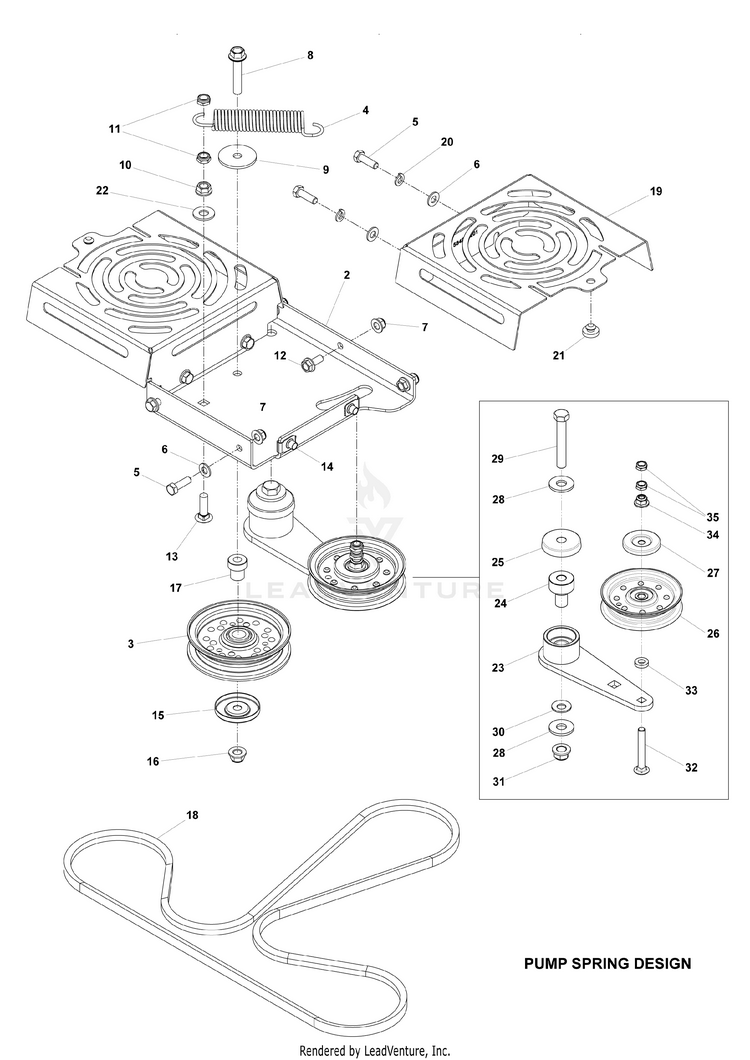

TRANSMISSION 2

...
...
11
Nuts HUS-596230801
...
22
GSPW Washers HUS-596433701
...
29
Bolts HUS-596435301
...
31
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
21
GROMMET, BUMPER HUS-539102587
...
14
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
28
Washers HUS-595316401
...
3
PULLEYS HUS-596739801
...
9
Washers HUS-596917301
...
2
PLATE.PNT.IDLER.SUPPORT.E-DIP HUS-586670402
...
4
Springs HUS-510254402
...
19
SHIELD FAN BLACK HUS-584994202
...
23
ARM, IDLER, STEEL, W/BGS HUS-510041603
...
32
Bolts HUS-596581801
...
25
Shields HUS-596394601
...
18
BELT, HYDRO, 3400 HUS-574870901
...
33
WASHER 3/8 X 3/4 X .187 TK HUS-539109562
...
5
Bolts HUS-596580801
...
34
GSPW Nuts HUS-521996502
...
30
Washers HUS-596581701
...
16
GSPW Nuts HUS-521996502
...
12
Bolts HUS-592858702
...
7
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
6
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
10
Washers HUS-596583501
...
13
Bolts HUS-595901101
...
35
Nuts HUS-596230801
...
15
SHIELD DUST HUS-510254502
...
24
PIVOT, BEARING HUS-510206301
...
27
SHIELD DUST HUS-510254502
...
26
Pulleys HUS-596481401
...
20
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
8
Bolts HUS-596319401
...
17
PIVOT, IDLER HUS-525435601
