Husqvarna MZ 54 Zero Turn Mower

Model: MZ 54

Back To Assemblies

Save Part Not Listed?
product name

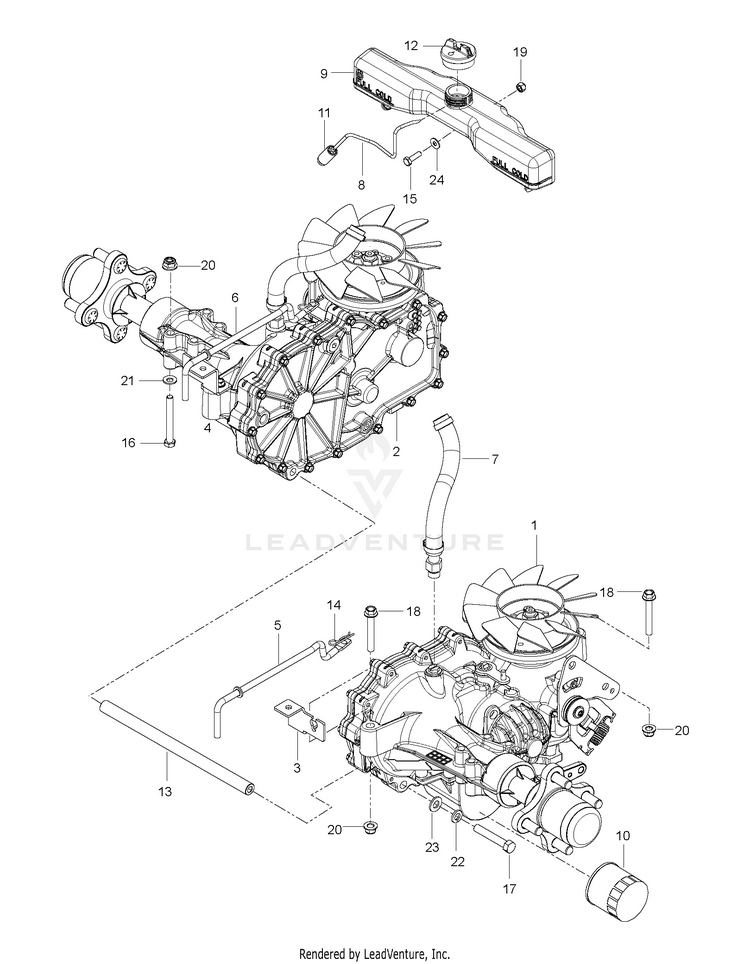

HYDRAULIC PUMP - MOTOR

...
...
4
BRACKET TRANS, RT BLACK MS-431 For all EXCEPT 96795370100, 967953702-00, 96769610201, 97045580100 HUS-593278902
...
3
BRACKET TRANS, RT BLACK MS-431 For 967953702-00, 96769610201, 97045580100 HUS-593278902
...
15
Screws For 97045580100 HUS-596565401
...
6
Links For all EXCEPT 97045580100 HUS-596501901
...
20
NUT HEXAGON FLANGE 5/16-18 ST For all EXCEPT 97045580100 HUS-594944401
...
16
Bolts For all EXCEPT 97045580100 HUS-596218601
...
24
Washers For 97045580100 HUS-596582301
...
18
Hardware HUS-574233802
...
2
TRANSMISSION ZT-3100 LH For 967953702-00, 96769610201, 97045580100 HUS-597561604
...
13
Spacers For all EXCEPT 97045580100 HUS-574868502
...
23
WASHER PLAIN WASHER 3/8 X 0.08 For all EXCEPT 97045580100 HUS-596565301
...
22
Washers For 97045580100 HUS-596238701
...
6
Links For 97045580100 HUS-596500701
...
23
WASHER PLAIN WASHER 3/8 X 0.08 For 97045580100 HUS-596565301
...
1
TRANSMISSION ZT-3100 LH For all EXCEPT 967953702-00, 96769610201, 97045580100 HUS-597561604
...
9
TANK EXPANSION W/CAP HUS-585318201
...
16
Bolts For 97045580100 HUS-596218601
...
19
NUT FLG, NYLOCK, 1/4-20 GR G C For 97045580100 HUS-582478602
...
11
NEEDS DESCRIPTION 30 pcs, plastic bag of 530095646 HUS-530095601
...
21
WASHER 11/32 X 11/16 X 14 GA T For all EXCEPT 97045580100 HUS-596204101
...
5
Links For all EXCEPT 97045580100 HUS-596500701
...
14
Pins For all EXCEPT 97045580100 HUS-596580601
...
3
BRACKET TRANS, LT BLACK MS-431 For all EXCEPT 96795370100, 967953702-00, 96769610201, 97045580100 HUS-593279002
...
4
BRACKET TRANS, LT BLACK MS-431 For 967953702-00, 96769610201, 97045580100 HUS-593279002
...
12
CAP EXPANSION W/SEAL HUS-586072701
...
3
BRACKET TRANS, LT BLACK MS-431 For 96795370100 HUS-593279002
...
22
Washers For all EXCEPT 97045580100 HUS-596238701
...
11
FUEL PICK-UP ASSY HUS-530095646
...
17
Screws HUS-596436501
...
4
BRACKET TRANS, RT BLACK MS-431 For 96795370100 HUS-593278902
...
20
NUT HEXAGON FLANGE 5/16-18 ST For 97045580100 HUS-594944401
...
15
Screws For all EXCEPT 97045580100 HUS-596565401
...
1
TRANSMISSION ZT-3100 RH For 967953702-00, 96769610201, 97045580100 HUS-597561603
...
10
HG_FILTER, ZT4800 52114 HUS-539113466
...
2
TRANSMISSION ZT-3100 RH For all EXCEPT 967953702-00, 96769610201, 97045580100 HUS-597561603
...
14
Pins For 97045580100 HUS-596580601
...
8
TANK HOSE HUS-586067501
...
5
Links For 97045580100 HUS-596501901
...
13
Spacers For 97045580100 HUS-574868502
...
21
WASHER 11/32 X 11/16 X 14 GA T For 97045580100 HUS-596204101
...
24
Washers For all EXCEPT 97045580100 HUS-596582301
...
7
HOSE ASSY, EXPANSION HUS-574892101
...
19
NUT FLG, NYLOCK, 1/4-20 GR G C For all EXCEPT 97045580100 HUS-582478602
