product name

Husqvarna MZ 54 Zero Turn Mower

Model: MZ 54

Back To Assemblies

Save Part Not Listed?
product name

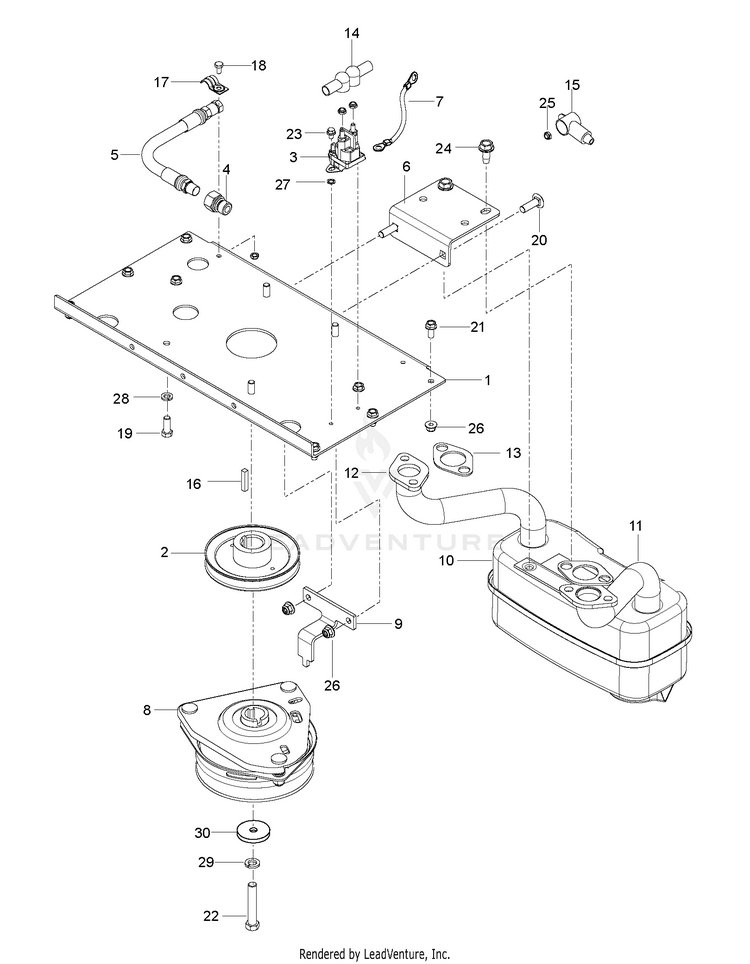

ENGINE PLATE

...
...
12
TUBE.EXHAUST.RH.FR961/FR730 For all EXCEPT 967696001-00, 967696001-01 HUS-583955701
...
7
CABLE POSITIVE HUS-539102757
...
6
BRKT, MUFFLER, BLK HUS-575229902
...
19
Bolts For 97045580100 HUS-596564401
...
19
Bolts For all EXCEPT 967696001-00, 967696001-01 HUS-596564401
...
28
Washers For all EXCEPT 967696001-00, 967696001-01, 97045580100 HUS-596238701
...
27
WASHER 1/4 INT TOOTH For all EXCEPT 97045580100 HUS-539990053
...
11
TUBE.EXHAUST.LH.FR961/FR730 For all EXCEPT 967696001-00, 967696001-01 HUS-583955601
...
25
NUT FLG, NYLOCK, 1/4-20 GR G C For all EXCEPT 97045580100 HUS-582478602
...
26
NUT HEXAGON FLANGE 5/16-18 ST For 97045580100 HUS-594944401
...
30
Washers HUS-596770301
...
2
PULLEY.DRIVE.XMSN HUS-585813701
...
29
Washers For all EXCEPT 97045580100 HUS-596238901
...
18
Screws For 97045580100 HUS-596437001
...
21
Bolts For all EXCEPT 97045580100 HUS-592858702
...
20
Bolts For all EXCEPT 97045580100 HUS-596435701
...
21
Bolts For 97045580100 HUS-592858702
...
15
INSULATOR HUS-539102759
...
19
SCREW 3/8-16X1 For 967696001-00, 967696001-01 HUS-817120616
...
xx
PIGTAIL.MATNLK.OLD.HARN HUS-532198316
...
1
PLATE.PNT.ENGINE.E-DIP HUS-586651402
...
13
GASKET HUS-532178151
...
25
NUT FLG, NYLOCK, 1/4-20 GR G C For 97045580100 HUS-582478602
...
14
COVER.TERMINAL.RED HUS-532154336
...
24
Bolts For 97045580100 HUS-596135901
...
9
BRACKET.CLUTCH.STOP.PNTX431 HUS-585813601
...
27
NUT HEXAGON FLANGE 5/16-18 ST For 97045580100 HUS-594944401
...
16
KEY, 1/4 SQ X 1 1/4 HUS-539912757
...
24
SCREW HEXAGON HEAD SCREW 5/16- For 967696001-00, 967696001-01 HUS-596030501
...
23
Screws HUS-596582701
...
12
PIPE.EXHAUST.RH.CV18/20 For 967696001-00, 967696001-01 HUS-583954801
...
8
CLUTCH MZ ZTR GT.48/54"1.125" HUS-532179335
...
17
CLAMP HUS-539101363
...
xx
NUT.HEX.FLANGE.TOPLOCK For 97045580100 HUS-532184362
...
18
Screws For all EXCEPT 97045580100 HUS-596437001
...
3
Solenoids For all EXCEPT 97045580100 HUS-582042802
...
24
BOLT 5/16-18 X 3/4 For all EXCEPT 967696001-00, 967696001-01 HUS-539107475
...
xx
For 967696101-00, Engine, Kawasaki FR730V-FS00-S 24 Hp. For engine replacement parts, see Kawasaki dealer. HUS-000000000
...
29
Washers For 97045580100 HUS-596238901
...
4
ADAPTER HUS-522599003
...
22
Bolts HUS-581332806
...
26
NUT HEXAGON FLANGE 5/16-18 ST For all EXCEPT 97045580100 HUS-594944401
...
5
HOSE.ASSEMBLY.OIL.DRAIN HUS-584825501
...
3
Solenoids For 97045580100 HUS-582042802
...
28
Washers For 97045580100 HUS-596238701
...
11
PIPE.EXHAUST.LH.CV18/20 For 967696001-00, 967696001-01 HUS-583954501
...
20
Bolts For 97045580100 HUS-596435701
...
10
MUFFLER ASM TWIN HUS-539131604
