product name

Husqvarna MZ 54 Zero Turn Mower

Model: MZ 54

Back To Assemblies

Save Part Not Listed?
product name

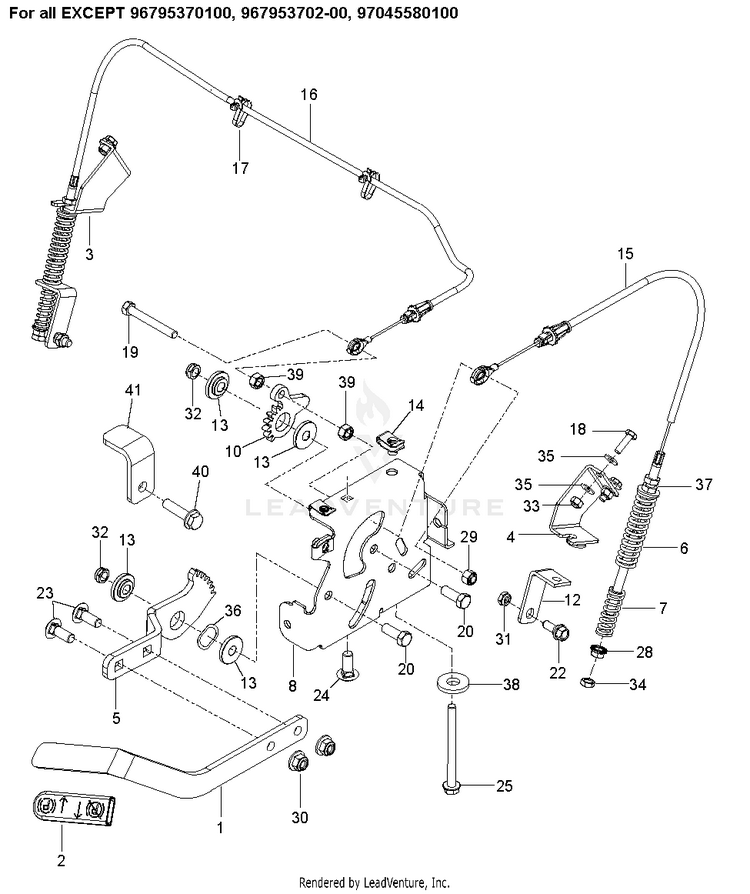

PARKING BRAKE 2

...
...
3
BRACKET BRAKE, RT BLACK MS-431 HUS-593279202
...
18
Screws HUS-596565401
...
32
Nuts HUS-596230801
...
20
Bolts HUS-596564401
...
22
Bolts HUS-596240701
...
41
BRACKET.PNT.LIMIT.ARM.BRK.EDIP HUS-596018303
...
17
TIE WRAP, 8-3/8", W/CLIP HUS-505280001
...
5
GEAR.INPUT.PARKING.BRAKE.MZ HUS-590337701
...
39
Nuts HUS-596582601
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
40
Bolts HUS-525544002
...
28
GSPW Hardware HUS-596039201
...
25
Bolts HUS-596241601
...
7
SPRING, ENGAGEMENT HUS-575230301
...
33
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
15
CABLE.ASSY.BRAKE.CABLE.SHORT HUS-582121801
...
30
GSPW Nuts HUS-521996502
...
6
SPRING, RETURN HUS-575230201
...
13
BUSHING, BRAKE HUS-539132161
...
19
Screws HUS-596437101
...
16
RP_CABLE, BRAKE, LONG HUS-539132174
...
29
Nuts HUS-596583702
...
31
Nuts HUS-596433601
...
35
Washers HUS-596582301
...
1
ARM BRAKE BLACK MS-431 HUS-593564002
...
4
BRACKET BRAKE, LT BLACK MS-431 HUS-593279902
...
10
GEAR OUTPUT;PARKING BRAKE;STAN HUS-590204501
...
12
BRKT, BRAKE, BLK HUS-575229802
...
8
KIT.SERVICE.ASM.BRAKE.MZ HUS-595846701
...
24
GSPW Bolts HUS-595901601
...
38
Washers HUS-595316401
...
2
GRIP, PARK BRAKE HUS-539105036
...
36
WASHER, .825 X 1.087, WAVE HUS-539133007
...
14
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
34
Nuts HUS-596436301
...
23
Bolts HUS-595316801
