Husqvarna MZ 25 (968999780) (2007-11) Ride Mower (Turf Care)

Model: MZ 25 (968999780) (2007-11)

Back To Assemblies

Save Part Not Listed?
product name

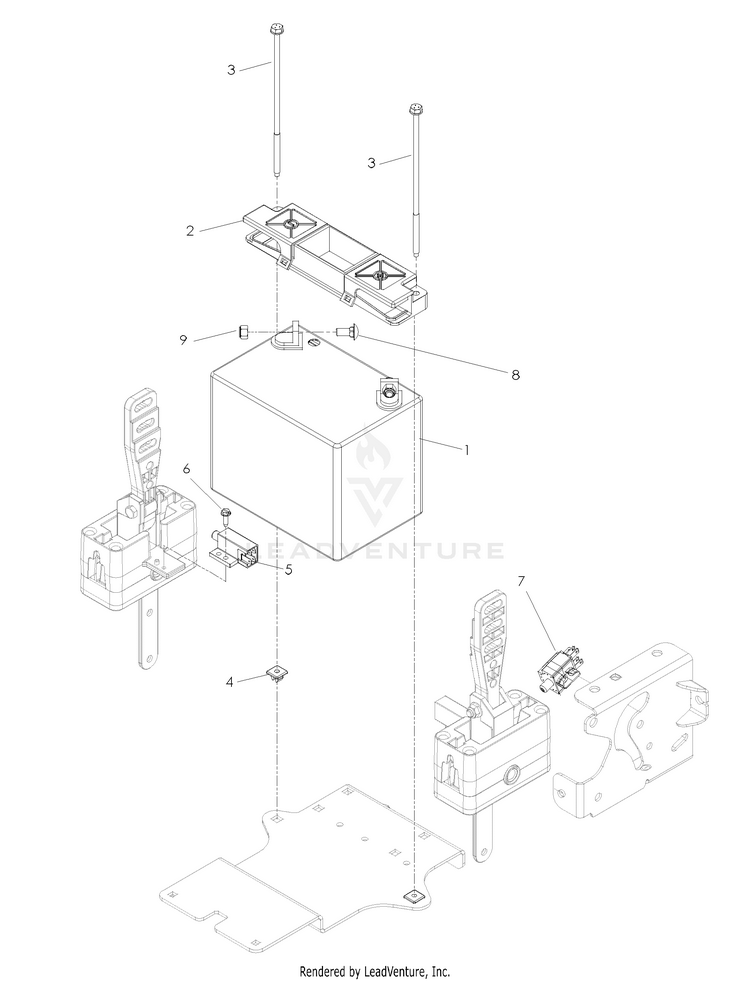

Electrical

...
...
1
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
2
BATTERY HOLD DOWN HUS-539107628
...
3
BOLT - 1/4-20 X 7.5 HUS-539107632
...
4
PUSH NUT-NYLON HUS-539107629
...
5
SWITCH, INTERLOCK HUS-539101080
...
6
Screws HUS-596584001
...
7
SWITCH, BRAKE 3P HUS-539113792
...
8
GSPW Bolts HUS-595901601
...
9
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
9
POSITIVE CABLE, 46" NOT SHOWN HUS-539132413
...
9
NEG. CABLE, 28" NOT SHOWN HUS-539107645
...
9
MAIN HARNESS NOT SHOWN HUS-539131743
