Husqvarna MZ 25 (968999780) (2007-11) Ride Mower (Turf Care)

Model: MZ 25 (968999780) (2007-11)

Back To Assemblies

Save Part Not Listed?
product name

Seat

...
...
1
SEAT MOUNT W/DECAL HUS-539132745
...
2
RIVET, 3/16" - .06-.25 GRIP HUS-539132894
...
3
PANEL, HEX HUS-539131763
...
4
STOP, SEAT, FORWQARD HUS-539131899
...
5
RHSSNB 1/4-20 X 1/2 HUS-539111777
...
6
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
7
SEAT.ASM.907.TRACK.W/O.BELT HUS-501580402
...
8
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
9
SB 5/16-18 HEX HD GD5, BLK ZN HUS-539130896
...
10
Nuts HUS-596583702
...
11
SWITCH.SNAPMOUNT.NC HUS-532421062
...
12
SUPPORT, SEAT HUS-539131656
...
13
SUPPORT, LT HUS-539131778
...
14
SUPPORT, RT HUS-539131779
...
15
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
16
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
17
GSPW Nuts HUS-596240901
...
18
BOLT 5/16-18 X 3/4 HUS-539107475
...
19
PUSH-MOUNT WIRE CLIP HUS-539110815
...
20
RUBBER GROMMET HUS-539105974
...
21
GSPW Washers HUS-596433701
...
22
Bolts HUS-595316801

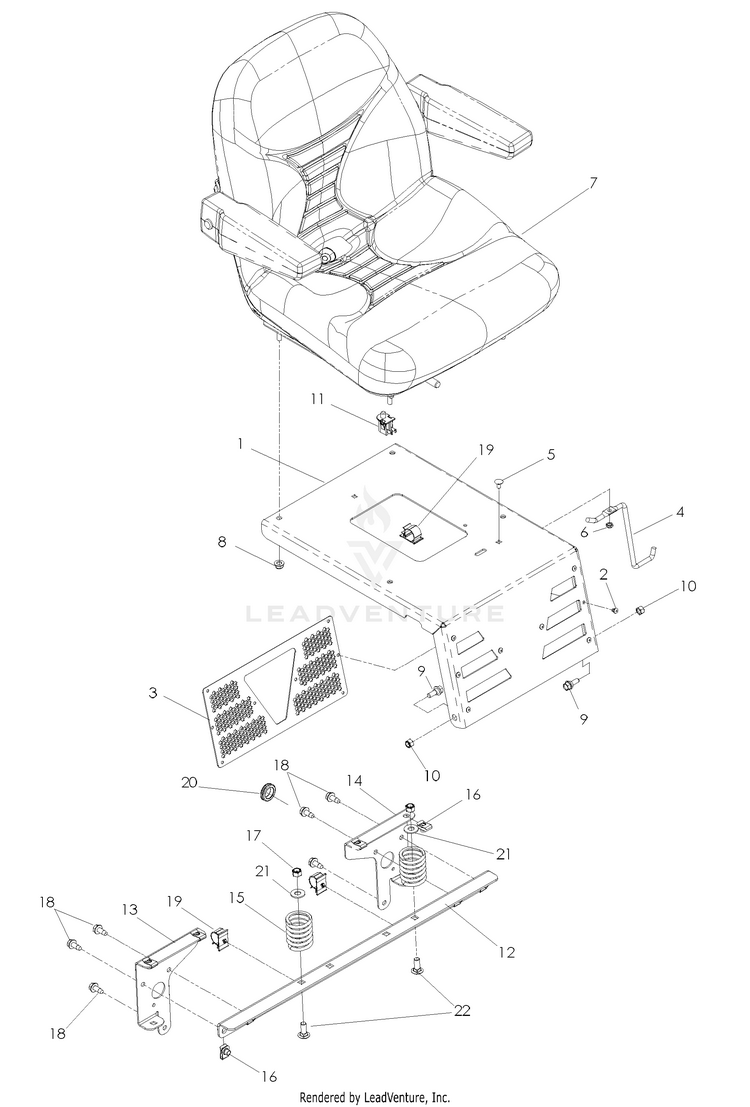

Schematic Image Zoomed
