Husqvarna MZ 25 (968999780) (2007-11) Ride Mower (Turf Care)

Model: MZ 25 (968999780) (2007-11)

Back To Assemblies

Save Part Not Listed?
product name

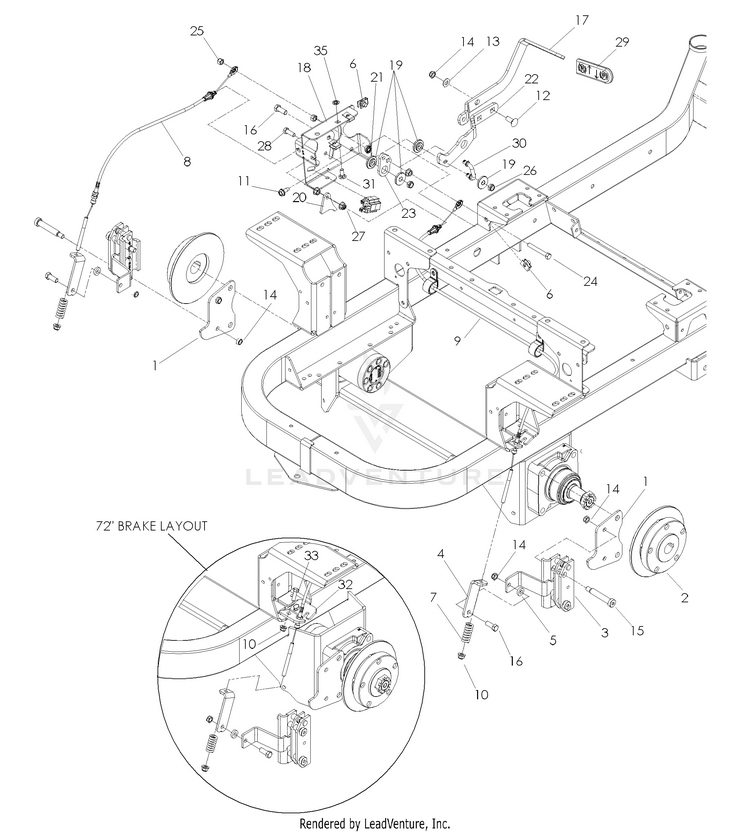

Parking Brake

...
...
1
PLATE, BRAKE HUS-539131599
...
2
HUB, 5 BOLT HUS-539131737
...
3
CALIPER PARK BRAKE HUS-539131738
...
4
BRACKET, L HUS-539132176
...
5
WASHER 3/8 X 3/4 X .187 TK HUS-539109562
...
6
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
7
Springs HUS-594891901
...
8
CABLE, BRAKE, SHORT HUS-539132173
...
9
RP_CABLE, BRAKE, LONG HUS-539132174
...
10
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
11
BOLT 5/16-18 X 3/4 HUS-539107475
...
12
Bolts HUS-595316801
...
13
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
14
Nuts HUS-596230801
...
15
SB 3/8-16 X 2-1-1/2 SKT HDD ZD HUS-539113951
...
16
Bolts HUS-596564401
...
17
ARM BRAKE BLACK MS-431 HUS-593564002
...
18
MOUNT, BRAKE WLDMT HUS-539132158
...
19
BUSHING, BRAKE HUS-539132161
...
20
KIT.SERVICE.ASM.BRAKE.MZ HUS-595846701
...
21
GSPW Hardware HUS-596039201
...
22
KIT.SERVICE.ASM.BRAKE.MZ HUS-595846701
...
23
KIT.SERVICE.ASM.BRAKE.MZ HUS-595846701
...
24
Screws HUS-596437101
...
25
Nuts HUS-596583702
...
26
Nuts HUS-596230801
...
27
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
28
Bolts HUS-596580801
...
29
GRIP, PARK BRAKE HUS-539105036
...
30
Links HUS-596887001
...
31
GSPW Bolts HUS-595901601
...
32
BRKT, EXTENSION HUS-539132185
...
33
Bolts HUS-596580801
...
33
TIE, PLASTIC NOT SHOWN HUS-539976856
