Husqvarna MZ 25 (968999780) (2007-11) Ride Mower (Turf Care)

Model: MZ 25 (968999780) (2007-11)

Back To Assemblies

Save Part Not Listed?
product name

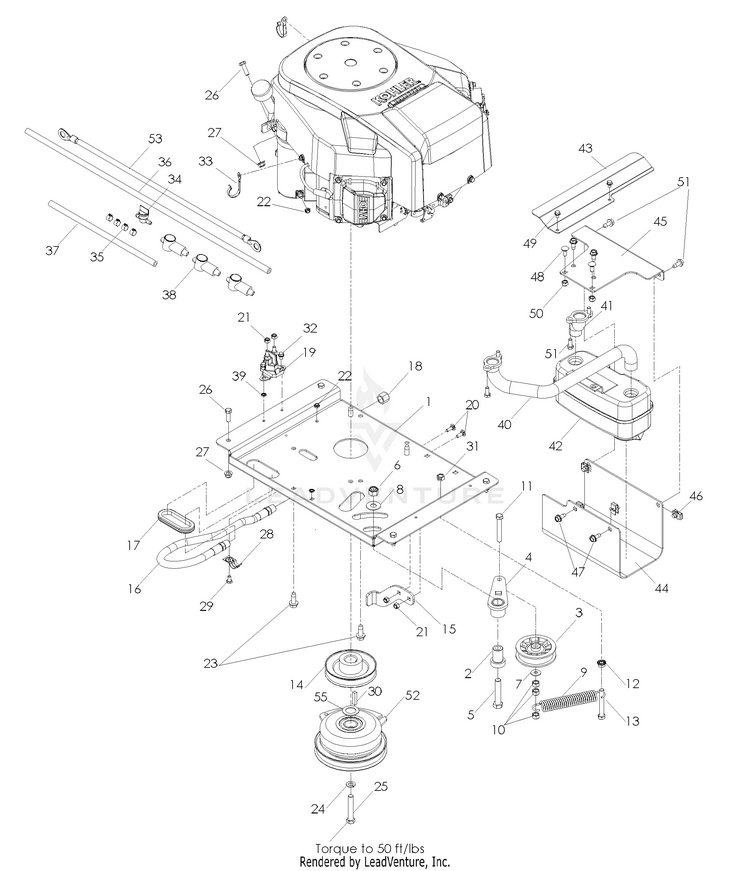

Engine Plate

...
...
1
PLATE, ENGINE HUS-539131726
...
2
IDLER SPINDLE HUS-539101231
...
3
PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
4
ARM.IDLER HUS-583593901
...
5
HEX SCREW 1/2-13 X 2.5" GR 5 HUS-539108346
...
6
GSPW NUTS HUS-596135601
...
7
GSPH HUS-596134901
...
8
Washers HUS-595316401
...
9
SPRING HUS-539101977
...
10
GSPW Nuts HUS-596240901
...
11
HCS 3/8-16 X 2-1/2 TPBLT HUS-539110122
...
12
Washers HUS-596583501
...
13
SCREW 3/8C X 2 3/4 HEX CAP HUS-539102612
...
14
PULLEY HUS-539109639
...
15
TIE DOWN, CLUTCH HUS-539131728
...
16
DRAIN, OIL HUS-539131729
...
17
GROMMET HUS-539107210
...
18
DRAIN CAP HUS-539101364
...
19
SOLENOID HUS-539101714
...
20
BOLT CUP HEAD SQUARE NECK BOLT HUS-596238401
...
21
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
22
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
23
SCREW 3/8-16X1 HUS-817120616
...
24
Washers HUS-596238901
...
25
BOLT 7/16F X 2 1/2 HUS-539991120
...
26
Bolts HUS-596580801
...
27
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
28
CLAMP HUS-539101363
...
29
Screws HUS-596437001
...
30
KEY, 1/4 SQ X 1 1/4 HUS-539912757
...
31
Nuts HUS-595305901
...
32
Screws HUS-596582701
...
33
CLAMP HUS-539107098
...
34
FUEL VALVE HUS-539916325
...
35
HOSE CLAMP HUS-539912222
...
36
FUEL LINE 30" HUS-539105382
...
37
FUEL LINE 13" HUS-539108212
...
38
INSULATOR HUS-539102759
...
39
WASHER 1/4 INT TOOTH HUS-539990053
...
40
MANIFOLD, FT HUS-539131739
...
41
MANIFOLD, RR HUS-539131740
...
42
MUFFLER ASM TWIN HUS-539131604
...
43
SHIELD, HEAT HUS-539131758
...
44
GUARD, MUFFLER HUS-539131769
...
45
MOUNT MUFFLER BLACK HUS-539131771
...
46
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
47
BOLT 5/16-18 X 3/4 HUS-539107475
...
48
GSPW Bolts HUS-595901601
...
49
Screws HUS-596582701
...
50
Nuts HUS-596583702
...
51
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
52
CLUTCH, 125 FT/LB HUS-539132732
...
53
CLUTCH, 200 FT/LB HUS-539132733
...
54
CABLE, POSITIVE HUS-539132412
...
55
Washers HUS-596319801
...
55
KOHLER PIGTAIL-CV490S NOT SHOWN HUS-539107516
