Husqvarna MZ 25 (968999780) (2007-11) Ride Mower (Turf Care)

Model: MZ 25 (968999780) (2007-11)

Back To Assemblies

Save Part Not Listed?
product name

Steering

...
...
1
ARM, PUMP HUS-522773701
...
2
Nuts HUS-596583702
...
3
DAMPENER W/SPRING HUS-539131658
...
4
Studs HUS-594056301
...
5
ROD END HUS-539131749
...
6
PIN, SPIRAL, 5/32 X 1 1/2 HUS-539131559
...
7
NUT M8 X 1.25 STD HEX HUS-539127046
...
8
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
9
NUT M8 NYLOC HUS-539118496
...
10
Bolts HUS-596241601
...
11
Bolts HUS-596582201
...
12
CONTROL WLDMT, LT HUS-539132163
...
13
CONTROL WLDMT, RT HUS-539132164
...
14
BUSHING, FLANGED, 5/8 HUS-539132168
...
15
BUSHING, CLIP, 5/8 HUS-539132169
...
16
Bolts HUS-595901501
...
17
E-RING 5/8 HUS-539105069
...
18
LINK, MOTION, LT HUS-539131551
...
19
LINK, MOTION, RT HUS-539131552
...
20
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
21
SPRING HUS-539102845
...
22
HCS 5/16-18X1-3/4 TPBLT HUS-539108394
...
23
NUT 5/16-24 CNTRLK HUS-539108743
...
24
BLOCK, UPPER HUS-539131517
...
25
BLOCK, LOWER HUS-539131519
...
26
BEARING, FLANGE HUS-539131518
...
27
PIVOT.SECTION.DRIVE.CONTROL HUS-522452901
...
28
MOUNT.HANDLE.CONTROL HUS-576452801
...
29
SCREW HUS-874780528
...
30
Nuts HUS-596582601
...
31
JACK SCREW HUS-539131550
...
32
SPHERICAL ROD END, LH HUS-539110604
...
33
SPHERICAL ROD END, RH HUS-539110603
...
34
Nuts HUS-596584101
...
35
Hardware HUS-596040901
...
36
Knobs HUS-596400701
...
37
SPRING HUS-539101224
...
38
LEVER.DRIVE.W/GRIP.RIGHT HUS-539132009
...
38
LEVER.DRIVE.W/GRIP.LEFT HUS-539132010
...
39
GRIP - DRIVE LEVER 12" HUS-539130894
...
40
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
41
WASHER, .825 X 1.087, WAVE HUS-539133007

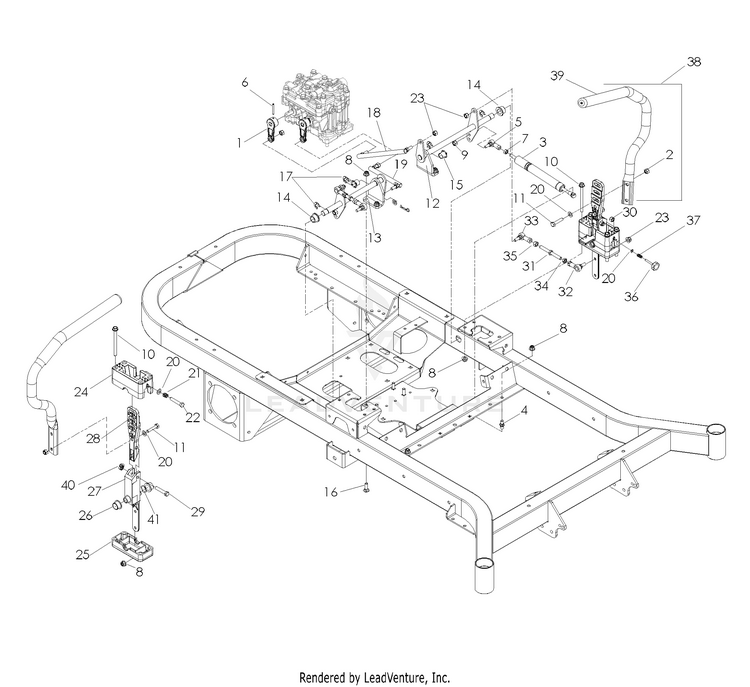

Schematic Image Zoomed
