Husqvarna MZ 25 (968999780) (2007-11) Ride Mower (Turf Care)

Model: MZ 25 (968999780) (2007-11)

Back To Assemblies

Save Part Not Listed?
product name

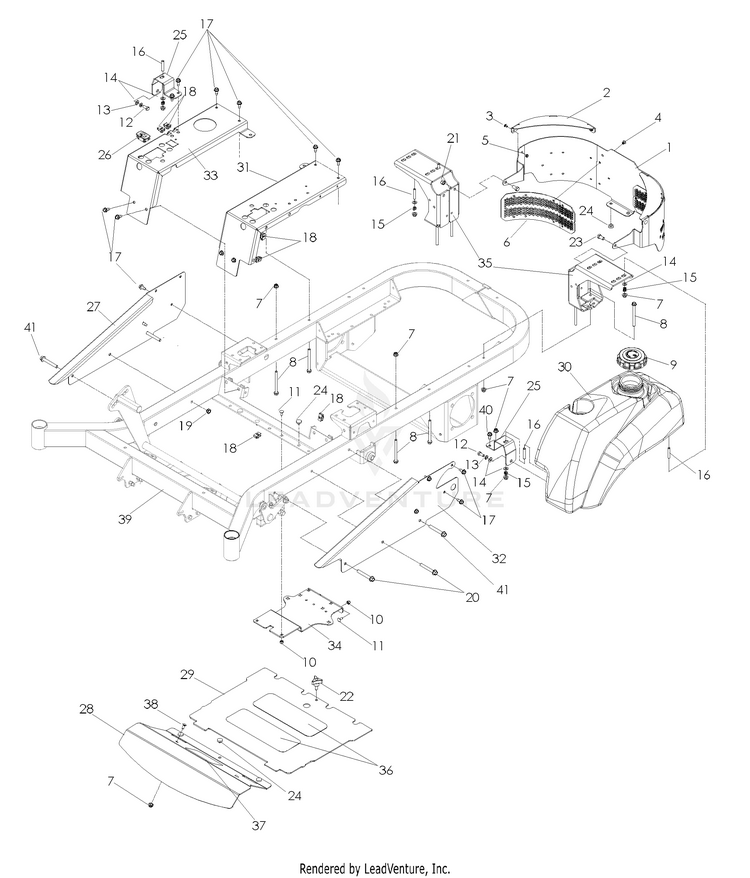

Chassis / Frame

...
...
1
GUARD, REAR HUS-539131594
...
2
SUPPORT, TOP HUS-539131751
...
3
RHSSNB 1/4-20 X 1/2 HUS-539111777
...
4
RIVERT, 3/16, STAVEX HUS-539200684
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
PANEL, HEX, RR HUS-539131753
...
7
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
8
Bolts HUS-596241601
...
9
FUEL CAP, GENERIC HUS-539130394
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
11
RHSSNB, 1/4-20X5/8 HUS-539111786
...
12
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
13
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
14
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
15
SPRING HUS-539102845
...
16
STUD, 5/16C HUS-539102502
...
17
BOLT 5/16-18 X 3/4 HUS-539107475
...
18
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
19
Nuts HUS-596230801
...
20
HHFS 3/8-16 X 2 3/4 HUS-539131781
...
21
GSPW Nuts HUS-596240901
...
22
GSPW Knobs HUS-597783101
...
23
SCREW 3/8C X 3/4 HEX CAP HUS-539990134
...
24
GROMMET, BUMPER HUS-539102587
...
25
SUPPORT, TANK, BLK HUS-539131671
...
26
HOUR METER HUS-576179401
...
27
SIDE.RT.ORANGE HUS-539131579
...
28
PLATE, FOOTREST HUS-539132380
...
29
PLATE, FLOOR W/DECALS HUS-539132744
...
30
LEFT TANK W/CUP HOLDER HUS-539104409
...
31
PANEL, FILLER, LT HUS-539131589
...
32
SIDE.LT.ORANGE HUS-539131577
...
33
PANEL, FILLER, RT HUS-539131591
...
34
BATTERY MOUNT HUS-539131537
...
35
MOUNT, TANK, RR HUS-539131692
...
36
ANTI-SKID PAD HUS-539977778
...
37
FOOT PAD HUS-539121322
...
38
Bolts HUS-595901501
...
39
FRAME W/DECALS 52", 61" HUS-539132743
...
39
FRAME W/DECALS 72" HUS-539132749
...
40
SCREW HEXAGON HEAD WITH COLLAR HUS-593337201
...
41
Bolts HUS-596581901
