Husqvarna MBA16107B (1999 & Before) Tractor

Model: MBA16107B (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

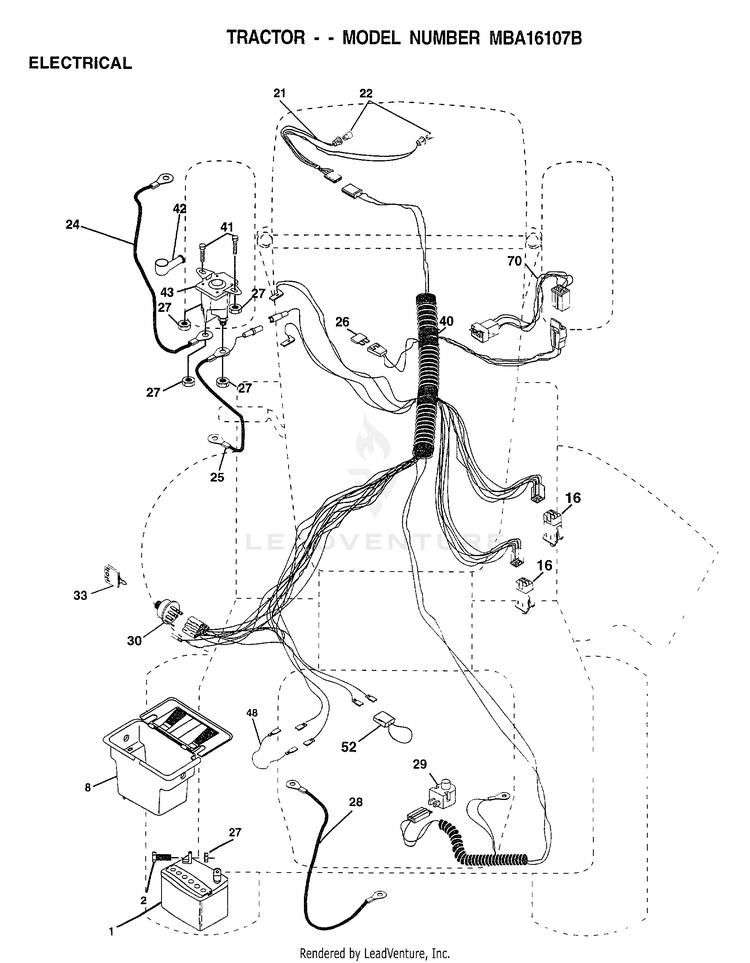

ELECTRICAL

...
...
1
SUB= 123899X HUS-144925
...
2
BOLT LT HUS-74760412
...
8
"CASE,BATTERY.MECH" HUS-156417
...
16
SWITCH INTERLOCK HUS-153664
...
21
HARNESS.ASM.LIGHT W/4152J HUS-166181
...
22
HEADLAMP BULB HUS-4152J
...
24
CABLE ASM. HUS-108423X
...
25
CABLE.BTRY.6GA.RD HUS-146147
...
26
FUSE.15 AMP HUS-166180
...
27
NUT HUS-73510400
...
28
CABLE T HUS-4207J
...
29
SWITCH SEAT HUS-121305X
...
30
SWITCH.IGN. HUS-163968
...
33
KEY MLD GEN DELTA HUS-140401
...
40
HARNESS IGN HUS-170217
...
41
BOLT HXHD FIN HUS-71110408
...
42
SUB= 154336 HUS-131563
...
43
SUB= 146154 HUS-145673
...
48
ADAPTER AMMETER HUS-140844
...
52
PROTECTION LOOP HUS-141940
...
70
HARNESS ENGINE HUS-170249
