Husqvarna MASTER GARDEN Walk Behind Mower

Model: MASTER GARDEN

Back To Assemblies

Save Part Not Listed?
product name

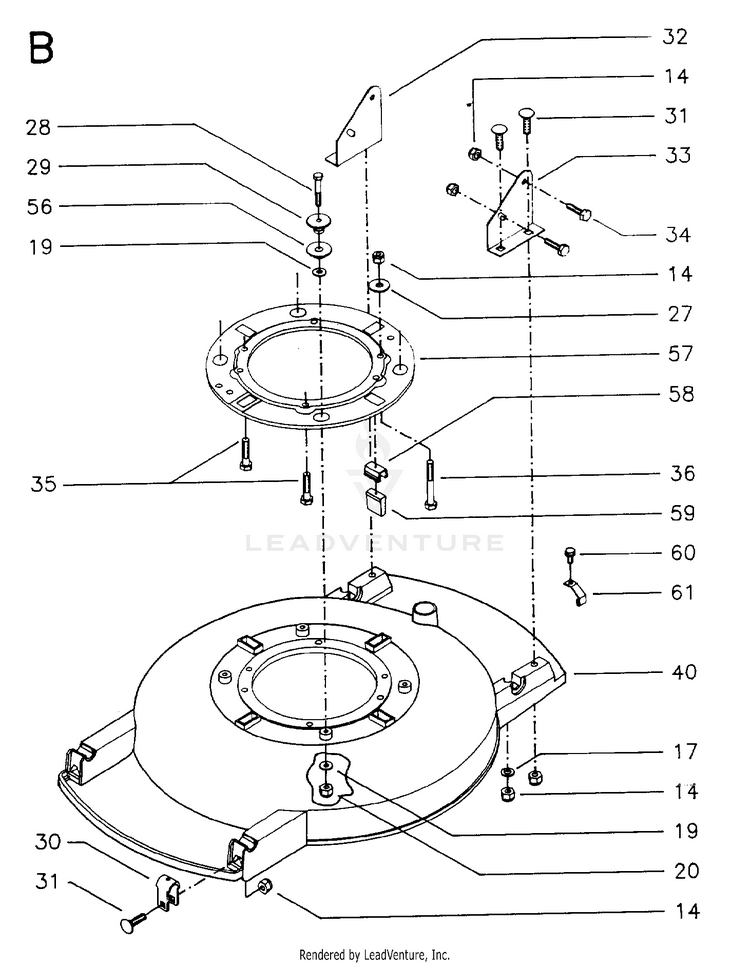

CHASSIS / FRAME 7

...
...
60
NEEDS DESCRIPTION HUS-516928301
...
30
BEARING HOLDER HUS-515139855
...
32
HANDLE BRACKET HUS-516434601
...
17
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
36
SCREW HUS-725246351
...
34
BOLT - M8X16 HUS-725244951
...
56
WASHER HUS-516939800
...
28
SCREW HUS-725237851
...
59
DAMPER HUS-516940200
...
31
SCREW HUS-727645501
...
14
LOCKNUT M8 HUS-732211801
...
57
ADAPTER HUS-516493711
...
27
SPACER HUS-734116441
...
40
NEEDS DESCRIPTION HUS-516870007
...
19
WASHER HUS-516449101
...
29
NEEDS DESCRIPTION HUS-516619202
...
58
CAP HUS-516920400
...
61
NEEDS DESCRIPTION HUS-516612601
...
33
HANDLE BRACKET HUS-516434701
...
35
SCREW HUS-725245751
...
20
LOCKNUT M6 HUS-732211601
