Husqvarna MASTER GARDEN Walk Behind Mower

Model: MASTER GARDEN

Back To Assemblies

Save Part Not Listed?
product name

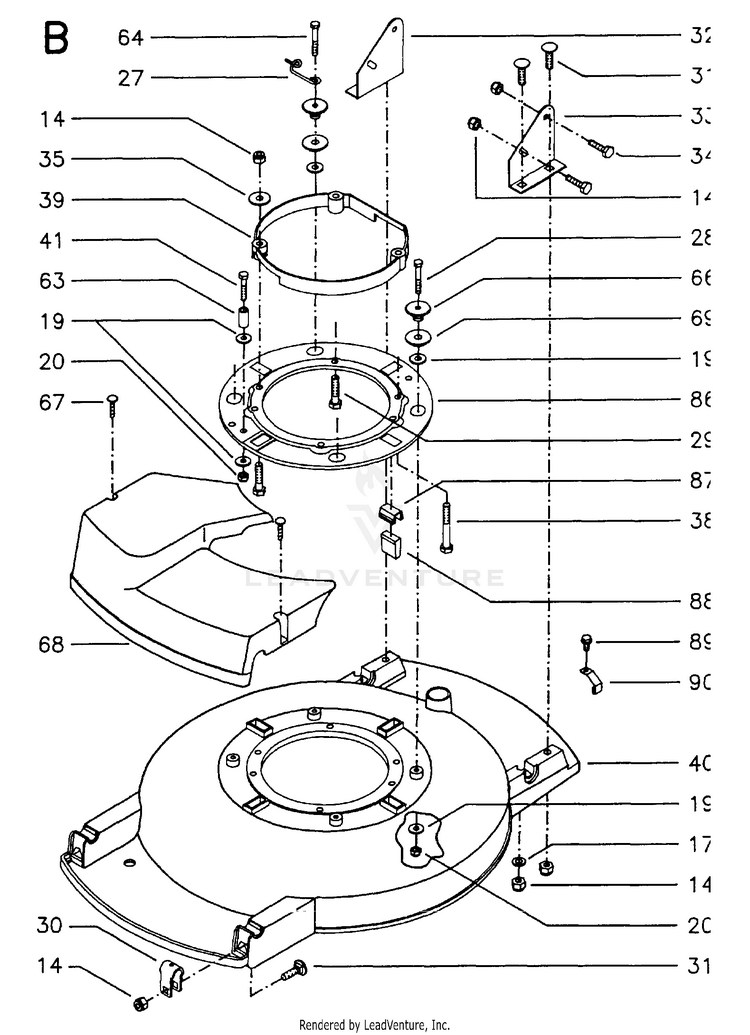

CHASSIS / FRAME 3

...
...
31
SCREW HUS-727645501
...
39
RING HUS-516931523
...
90
NEEDS DESCRIPTION HUS-516612601
...
27
SPRING HUS-516511501
...
89
NEEDS DESCRIPTION HUS-516928301
...
41
BOLT FLANGE HUS-725237651
...
66
NEEDS DESCRIPTION HUS-516619202
...
19
WASHER HUS-516449101
...
87
CAP HUS-516920400
...
20
LOCKNUT M6 HUS-732211601
...
33
HANDLE BRACKET HUS-516434701
...
28
SCREW HUS-725237851
...
38
SCREW HUS-515700890
...
30
BEARING HOLDER HUS-515139855
...
69
WASHER HUS-516939800
...
64
SCREW HUS-725237951
...
68
NEEDS DESCRIPTION HUS-516877907
...
35
SPACER HUS-734116441
...
32
HANDLE BRACKET HUS-516434601
...
67
SCREW HUS-729542201
...
40
NEEDS DESCRIPTION HUS-516870007
...
34
BOLT - M8X16 HUS-725244951
...
14
LOCKNUT M8 HUS-732211801
...
88
DAMPER HUS-516940200
...
86
ADAPTER HUS-516493711
...
63
SPACER HUS-516495301
...
17
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
29
SCREW HUS-725246351
