Husqvarna MASTER 46 Walk Behind Mower

Model: MASTER 46

Back To Assemblies

Save Part Not Listed?
product name

PRODUCT COMPLETE 4

...
...
514 90 31-00
STARLOCK HUS-514903100
...
516 44 28-01
WASHER HUS-516442801
...
514 64 76-00
Knob HUS-514647600
...
510 69 40-64
NEEDS DESCRIPTION HUS-510694064
...
513 10 28-00
NEEDS DESCRIPTION HUS-513102800
...
516 44 34-11
LOWER HANDLE HUS-516443411
...
513 99 87-01
NEEDS DESCRIPTION HUS-513998701
...
513 10 68-00
NEEDS DESCRIPTION HUS-513106800
...
514 91 67-00
BOLT HUS-514916700
...
512 80 41-02
NEEDS DESCRIPTION HUS-512804102
...
512 79 93-74
NEEDS DESCRIPTION HUS-512799374
...
514 02 66-00
WASHER HUS-514026600
...
513 95 32-00
DECAL HUS-513953200
...
512 80 82-00
NEEDS DESCRIPTION HUS-512808200
...
513 10 26-00
NEEDS DESCRIPTION HUS-513102600
...
513 97 48-00
DECAL HUS-513974800
...
513 10 45-01
NEEDS DESCRIPTION HUS-513104501
...
516 84 91-11
LOCK HUS-516849111
...
513 10 45-00
NEEDS DESCRIPTION HUS-513104500
...
511 90 75-64
BAIL ARM:BRAKE HUS-511907564
...
515 79 60-01
WASHER HUS-515796001
...
514 99 45-01
Bolt HUS-514994501
...
512 78 93-00
NEEDS DESCRIPTION HUS-512789300
...
512 79 42-00
ADAPTER HUS-512794200
...
513 90 60-00
SPRING HUS-513906000
...
512 75 17-00
WHEEL HUS-512828300
...
514 71 50-00
Cable Tie HUS-514715000
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
515 12 39-30
SCREW HUS-515123931
...
512 79 31-68
WINGNUT HUS-512793167
...
516 84 32-11
BOLT HUS-516843211
...
513 96 21-00
NEEDS DESCRIPTION HUS-513962100
...
516 43 87-01
STEEL PLATE ADAPTER HUS-516438701
...
516 44 38-00
NEEDS DESCRIPTION HUS-516443800
...
514 02 66-03
WASHER HUS-514026603
...
514 92 75-00
NEEDS DESCRIPTION HUS-514927500
...
513 07 63-02
NEEDS DESCRIPTION HUS-513076302
...
516 85 21-11
LOCK HUS-516852111

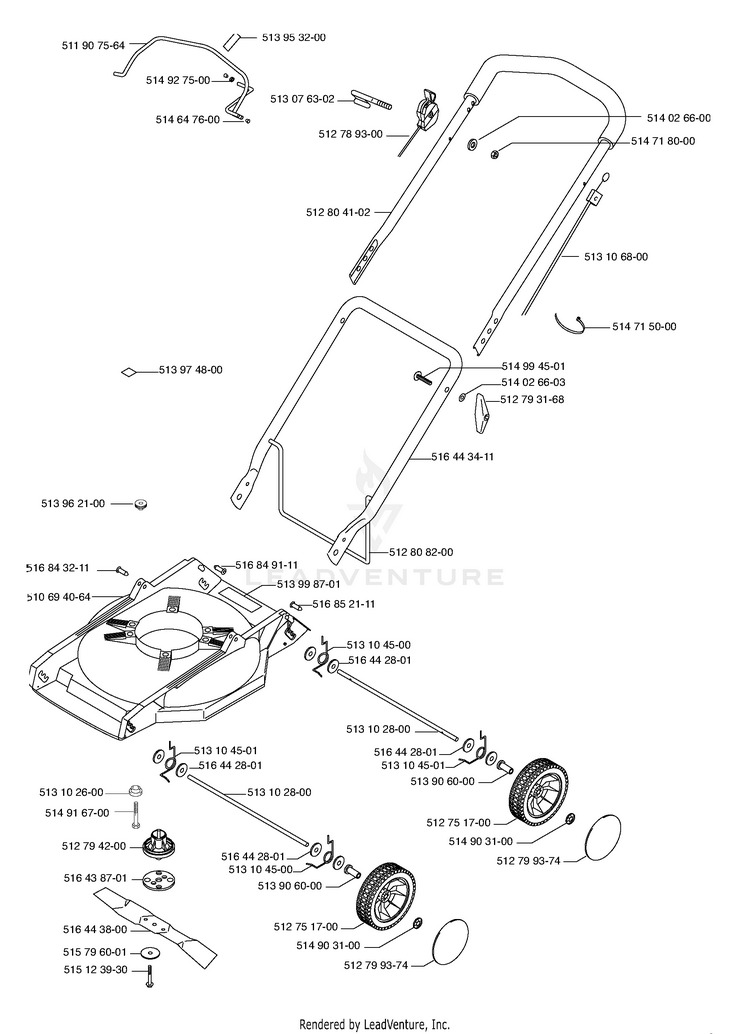

Schematic Image Zoomed
