product name

Husqvarna MASTER 46 Walk Behind Mower

Model: MASTER 46

Back To Assemblies

Save Part Not Listed?
product name

PRODUCT COMPLETE 3

...
...
514 02 66-00
WASHER HUS-514026600
...
513 06 41-05
NEEDS DESCRIPTION HUS-513064105
...
516 62 21-01
SPRING HUS-516622101
...
514 02 66-05
WASHER HUS-514026605
...
512 75 17-00
WHEEL HUS-512828300
...
512 78 93-00
NEEDS DESCRIPTION HUS-512789300
...
516 87 73-09
BRACKET HUS-516877309
...
516 91 98-00
FLANGE BRG. HUS-516919800
...
516 44 28-01
WASHER HUS-516442801
...
514 90 31-00
STARLOCK HUS-514903100
...
513 08 30-00
HUS-513083000
...
516 85 21-11
LOCK HUS-516852111
...
514 99 46-00
NUT HUS-514994600
...
515 70 08-55
SCREW HUS-515700855
...
515 79 60-01
WASHER HUS-515796001
...
511 90 75-64
BAIL ARM:BRAKE HUS-511907564
...
512 79 42-00
ADAPTER HUS-512794200
...
725 23 78-51
SCREW HUS-725237851
...
512 80 56-00
NEEDS DESCRIPTION HUS-512805600
...
516 44 34-11
LOWER HANDLE HUS-516443411
...
516 43 87-01
STEEL PLATE ADAPTER HUS-516438701
...
513 90 60-00
SPRING HUS-513906000
...
512 80 41-02
NEEDS DESCRIPTION HUS-512804102
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
514 99 45-01
Bolt HUS-514994501
...
512 80 82-00
NEEDS DESCRIPTION HUS-512808200
...
513 99 87-00
NEEDS DESCRIPTION HUS-513998700
...
513 07 63-02
NEEDS DESCRIPTION HUS-513076302
...
516 84 91-11
LOCK HUS-516849111
...
516 62 24-01
SPRING HUS-516622401
...
517 01 34-00
DECAL HUS-517013400
...
514 02 66-03
WASHER HUS-514026603
...
512 79 31-68
WINGNUT HUS-512793167
...
513 95 32-00
DECAL HUS-513953200
...
531 01 31-56
BLADE HUS-531013156
...
513 91 04-00
SHAFT HUS-513910400
...
515 12 39-30
SCREW HUS-515123931
...
513 97 48-00
DECAL HUS-513974800
...
510 69 40-64
NEEDS DESCRIPTION HUS-510694064
...
512 79 93-74
NEEDS DESCRIPTION HUS-512799374
...
514 64 76-00
Knob HUS-514647600
...
516 84 32-11
BOLT HUS-516843211
...
514 92 75-00
NEEDS DESCRIPTION HUS-514927500
...
514 71 50-00
Cable Tie HUS-514715000

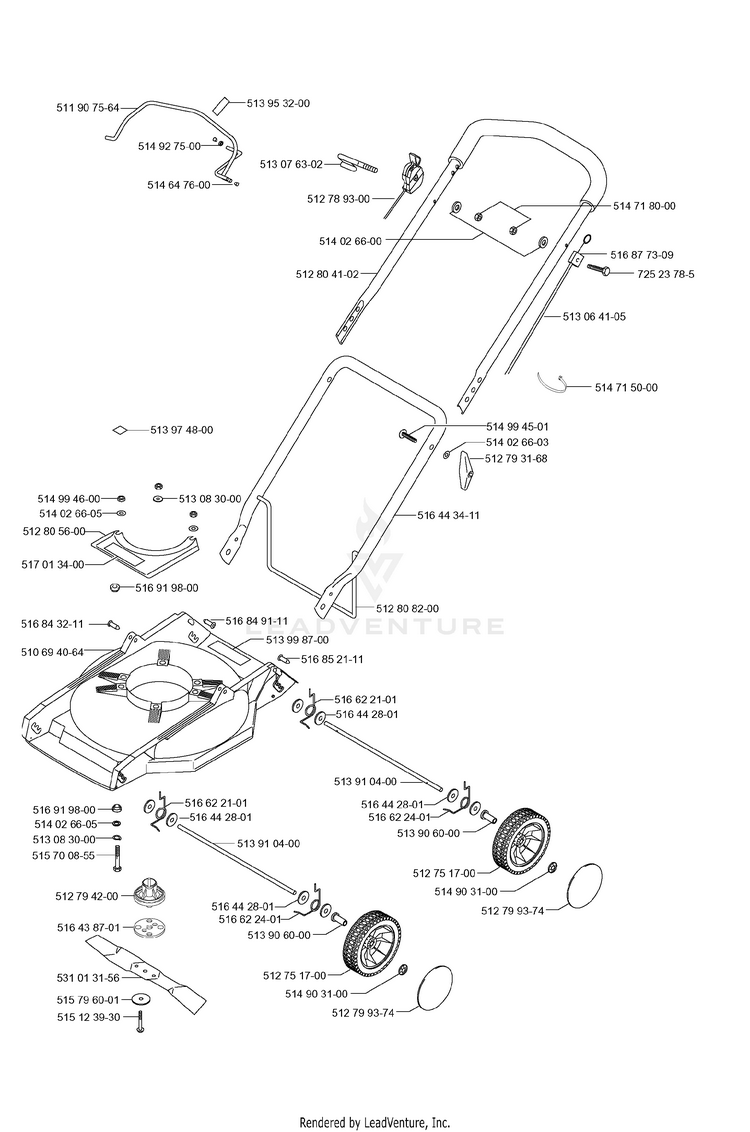

Schematic Image Zoomed
