Husqvarna MASTER 46 - 964471239 (1999-02) Walk Behind Mower

Model: MASTER 46 - 964471239 (1999-02)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
513 97 60-00
WIRE HUS-513976000
...
515 79 60-01
WASHER HUS-515796001
...
531 00 50-40
BLADE HUS-531005040
...
512 75 30-83
HUB HUS-512753083
...
514 71 50-00
Cable Tie HUS-514715000
...
512 78 96-64
LOOP HUS-512789664
...
725 23 81-51
SCREW M6X55 HUS-725238151
...
516 62 24-01
SPRING HUS-516622401
...
512 75 17-00
WHEEL HUS-512828300
...
516 85 21-11
LOCK HUS-516852111
...
513 91 04-00
SHAFT HUS-513910400
...
516 44 28-01
WASHER HUS-516442801
...
516 88 70-00
ADAPTER HUS-512794200
...
516 91 98-00
FLANGE BRG. HUS-516919800
...
514 71 80-00
NUT M6 NYLOC GME/D HUS-514718000
...
516 84 32-11
BOLT HUS-516843211
...
516 62 21-01
SPRING HUS-516622101
...
514 02 66-04
WASHER HUS-514026604
...
516 87 25-07
COVER HUS-516872507
...
514 90 31-00
STARLOCK HUS-514903100
...
512 79 14-68
Handle HUS-512791468
...
514 02 66-00
WASHER HUS-514026600
...
516 43 87-01
STEEL PLATE ADAPTER HUS-516438701
...
725 23 78-51
SCREW HUS-725237851
...
516 60 59-01
PROTECTOR HUS-516605901
...
513 97 48-00
DECAL HUS-513974800
...
513 90 60-00
SPRING HUS-513906000
...
515 12 39-30
SCREW HUS-515123931
...
512 79 31-68
WINGNUT HUS-512793167
...
513 90 04-00
DECAL HUS-513900400
...
513 97 65-00
THROTTLE TRIGGER HUS-513975400
...
514 02 81-04
WASHER HUS-514028104
...
516 44 34-11
LOWER HANDLE HUS-516443411
...
512 79 06-02
HANDLE HUS-512790602
...
516 44 73-01
HANDLE BAR HUS-516447301
...
513 95 32-00
DECAL HUS-513953200
...
516 84 91-11
LOCK HUS-516849111
...
515 77 20-09
SPRING WASHER HUS-735116401
...
516 87 73-09
BRACKET HUS-516877309
...
514 99 66-68
HUS-514996668
...
517 13 40-00
NEEDS DESCRIPTION HUS-517134000
...
514 99 46-00
NUT HUS-514994600
...
517 01 34-00
DECAL HUS-517013400
...
515 70 08 55
SCREW HUS-515700855
...
516 62 71-01
HOLDER HUS-513076300
...
514 99 45-01
Bolt HUS-514994501

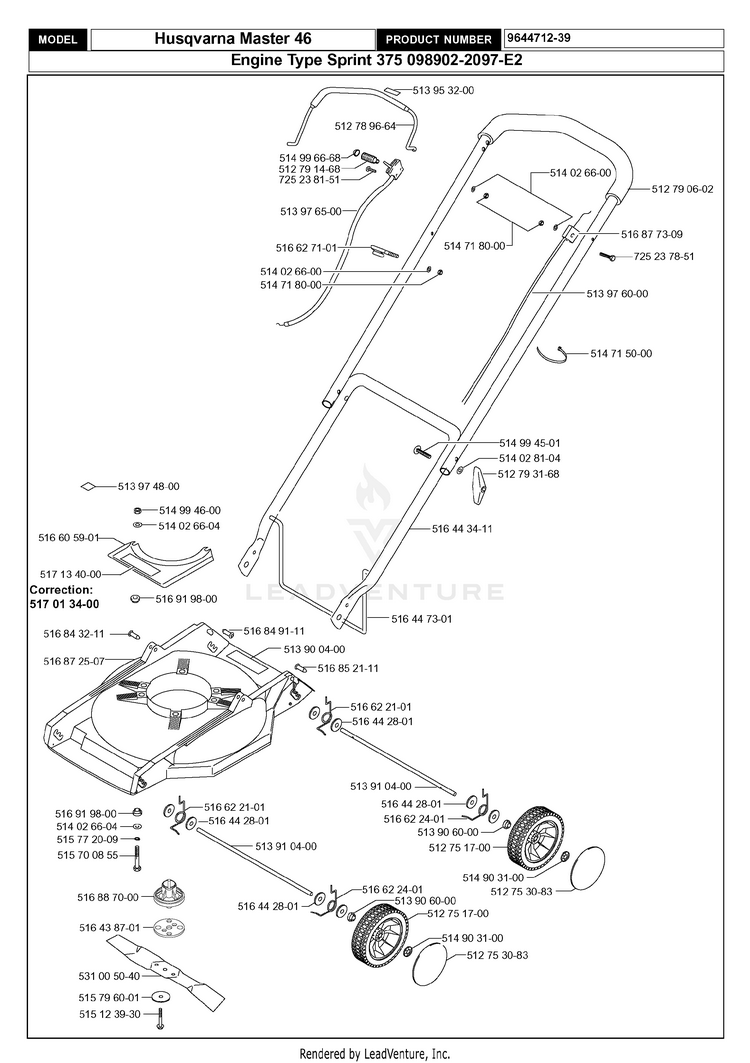

Schematic Image Zoomed
