Husqvarna LZF 6127 (966956801) (2008-04) Ride Mower

Model: LZF 6127 (966956801) (2008-04)

Back To Assemblies

Save Part Not Listed?
product name

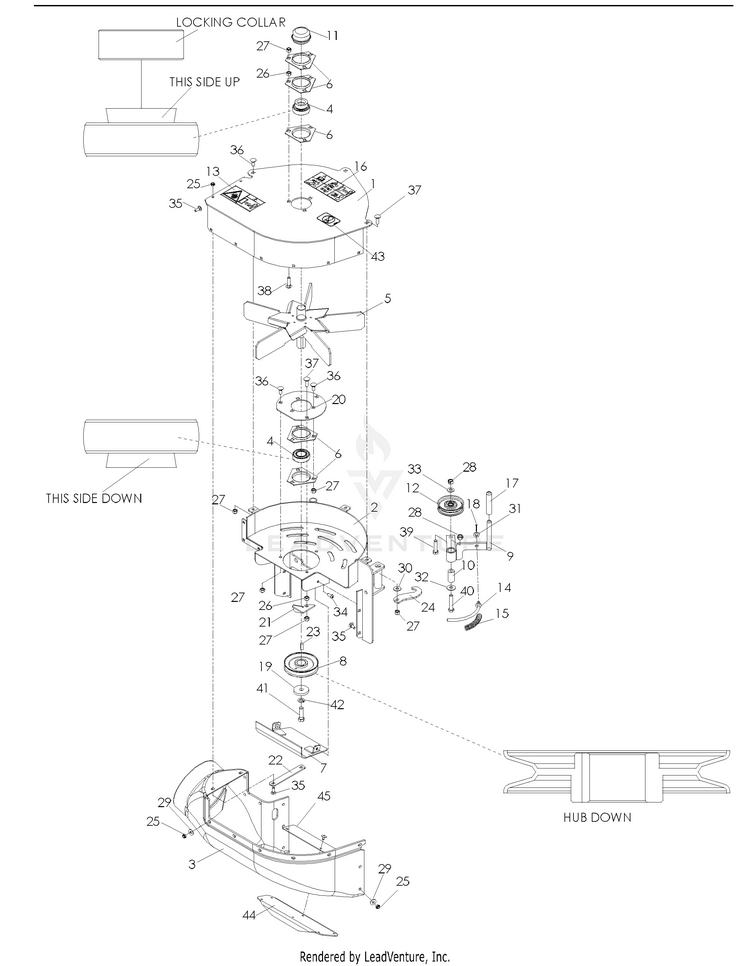

Blower Assembly

...
...
1
FAN COVER W/DECALS HUS-539111331
...
2
BLOWER HOUSING WELDMENT HUS-539108941
...
3
LOWER HOUSING HUS-539109900
...
4
BEARING KIT-2 PCS HUS-539106786
...
5
FAN WELDMENT HUS-539110111
...
6
BRG FLANGE HUS-539102691
...
7
COVER PLATE WELDMENT HUS-539108301
...
8
SHEAVE 4" HUS-539106713
...
9
IDLER ARM HUS-539106715
...
10
BUSHING, SLEEVE HUS-539101836
...
11
Caps HUS-595281301
...
12
PULLEY HUS-539106721
...
13
EURO DECAL, IMPELLER HUS-539106741
...
14
SPRING ROD WLDMNT HUS-539106801
...
15
SPRING HUS-539106720
...
16
DECAL, EURO WARNING HUS-539105785
...
17
GRIP HUS-539101050
...
18
COTTER PIN 3/32 X 3/4 HUS-539990037
...
19
Washers HUS-596770301
...
20
BEARING PLATE - BLACK HUS-539106809
...
21
BELT GUIDE HUS-539106811
...
22
BACKING (BLACK) HUS-539106812
...
23
KEY 1/4 SQ X 3/4 HUS-539102067
...
24
IDLER ARM KEEPER HUS-539111303
...
25
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
26
Nuts HUS-596582601
...
27
Nuts HUS-596583702
...
28
Nuts HUS-595305901
...
29
Washers HUS-597338501
...
30
GSPH HUS-596134901
...
31
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
32
GSPW Washers HUS-596433701
...
33
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
34
Screws HUS-596789701
...
35
BOLT CUP HEAD SQUARE NECK BOLT HUS-596238401
...
36
GSPW Bolts HUS-595901601
...
37
Bolts HUS-595901501
...
38
Bolts HUS-596671401
...
39
HCS 3/8C X 1 1/2 HUS-539990655
...
40
HCS 3/8C X 2 HUS-539990588
...
41
HCS 7/16F X 1 1/2 HUS-539100141
...
42
Washers HUS-596238901
...
43
DECAL.DECK.6MIL.EURO.NOSTEP HUS-581724301
...
44
BLOWER SUPPORT HUS-539111340
...
45
PLATE, BLOWOUT HUS-539110058
