Husqvarna LZF 6127 (966956801) (2008-04) Ride Mower

Model: LZF 6127 (966956801) (2008-04)

Back To Assemblies

Save Part Not Listed?
product name

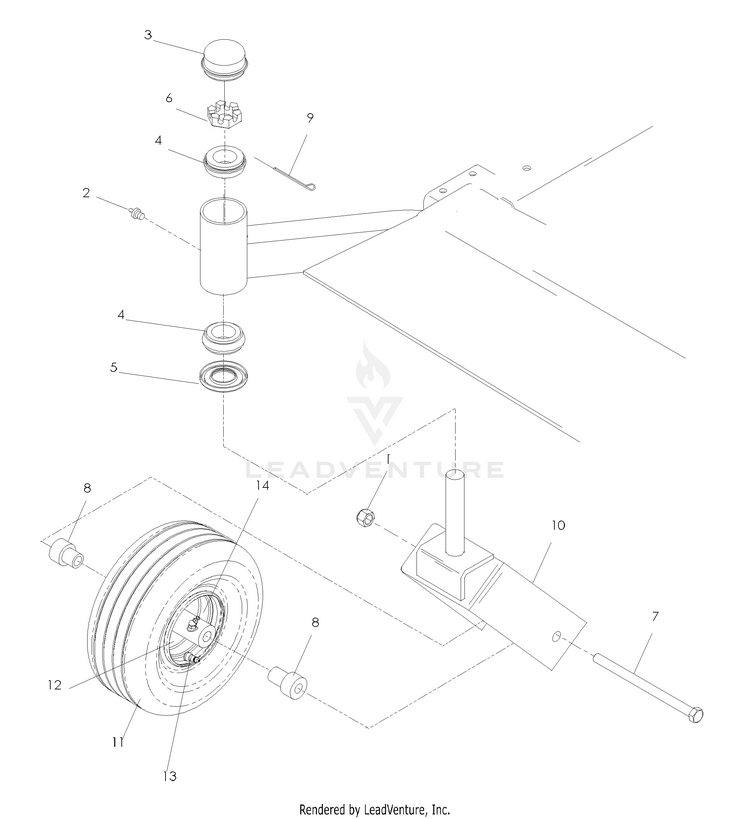

Casters

...
...
1
GSPW NUTS HUS-596135601
...
2
Zerks HUS-596623501
...
3
Caps HUS-595281301
...
4
TAPERED ROLLER BRG HUS-539102543
...
5
SEAL HUS-539102851
...
6
Nuts HUS-596241501
...
7
GSPW Screws HUS-594946501
...
8
AXLE SPACER HUS-539105518
...
9
COTTER PIN 1/8 X 2 HUS-539124704
...
10
CASTOR YOKE ORANGE HUS-539105982
...
11
FRONT TIRE ASSY HUS-539105521
...
12
RIM HUS-539105523
...
13
VALVE STEM TR-412 HUS-539912234
...
14
ZERK HUS-539103300
