Husqvarna LZF 5227 (966956701) (2008-04) Ride Mower

Model: LZF 5227 (966956701) (2008-04)

Back To Assemblies

Save Part Not Listed?
product name

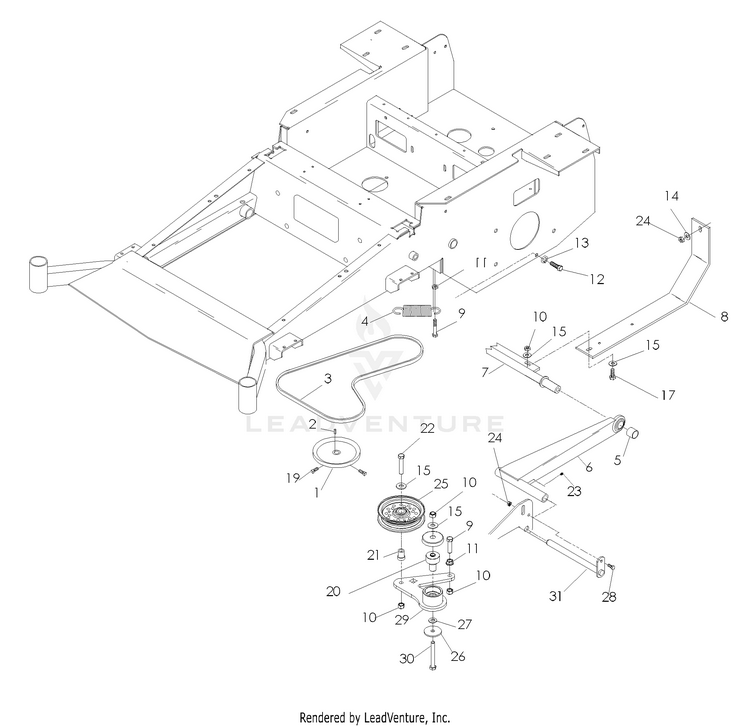

Hydro Pulley / Deck Struts

...
...
1
PULLEY HUS-539101176
...
2
KEY 5 MM SQ X 25 MM HUS-539101177
...
3
BELT, PUMP HUS-510201501
...
4
SPRING HUS-539103256
...
5
SPACER, STRUT HUS-539104521
...
6
STRUT HUS-539104390
...
7
CROSS SHAFT, STRUT - BLK HUS-539132302
...
8
SKID PLATE HUS-539112634
...
9
HCS 3/8C X 1 1/2 HUS-539990655
...
10
GSPW Nuts HUS-596240901
...
11
Washers HUS-596583501
...
12
BLADE BOLT/WASHER HUS-539119007
...
13
Washers HUS-596238901
...
14
GSPH HUS-596134901
...
15
GSPW Washers HUS-596433701
...
16
HCS 1/2C X 3 1/4 HUS-539103433
...
17
Bolts HUS-596564401
...
18
GSPW NUTS HUS-596135601
...
19
SCREW 5/16C X 5/8 SQ HEAD HUS-539102717
...
20
PIVOT, BEARING HUS-539130205
...
21
BUSHING, IDLER FLANGE HUS-539976695
...
22
HCS 3/8C X 2 HUS-539990588
...
23
GSPW Zerks HUS-596899901
...
24
Nuts HUS-596583702
...
25
PULLEYS HUS-596739801
...
26
Washers HUS-596917301
...
27
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
28
Bolts HUS-596580801
...
29
ARM, IDLER - W/BEARINGS HUS-539130392
...
30
HCS 3/8C X 3 HUS-539101341
...
31
PIVOT PIN HUS-539102619
Schematic Image Zoomed
