Husqvarna LZ30 (968999776) (2008-01) Ride Mower (Turf Care)

Model: LZ30 (968999776) (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

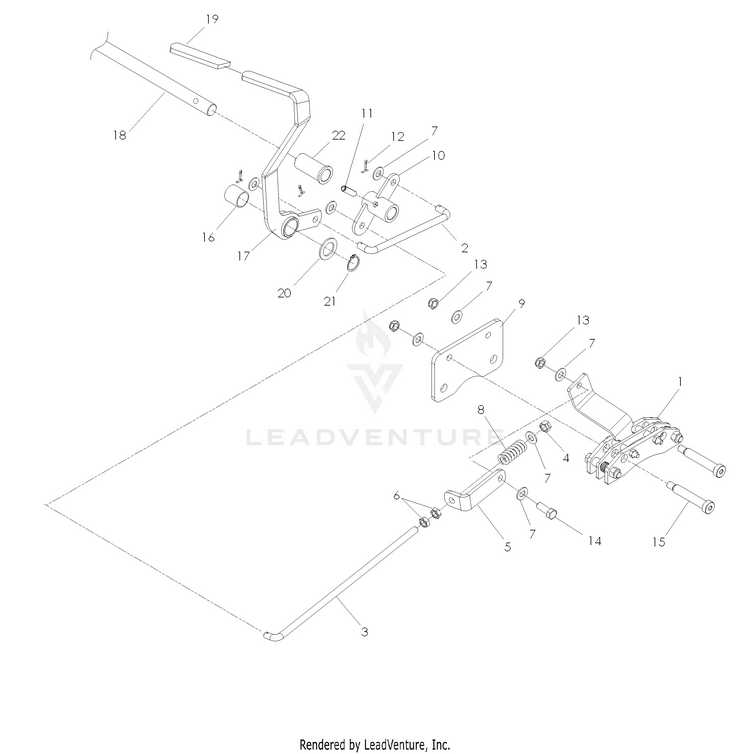

Parking Brake

...
...
1
CALIPER HUS-539133047
...
2
LINKAGE, BRAKE HUS-539113947
...
3
LINKAGE, REAR BRAKE HUS-539113949
...
4
NUT 3/8F CENTERLOCK HUS-539990289
...
5
BRACKET, L HUS-539113950
...
6
Hardware HUS-596029901
...
7
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
8
Springs HUS-594891901
...
9
PLATE, BRAKE HUS-539113948
...
10
BELLCRANK, BRAKE HUS-539113946
...
11
Pins HUS-596917801
...
12
COTTER PIN 3/32 X 3/4 HUS-539990037
...
13
Nuts HUS-596230801
...
14
Bolts HUS-596564401
...
15
SB 3/8-16 X 2-1-1/2 SKT HDD ZD HUS-539113951
...
16
BUSHING HUS-539108619
...
17
BRAKE LEVER WLDMT HUS-539108616
...
18
SHAFT HUS-539110624
...
19
GRIP, PARK BRAKE HUS-539105036
...
20
BSHG .875 X 1.375 X .074 ZD HUS-539923787
...
21
RETAINING RING, 7/8" HUS-539101151
...
22
BUSHING, POLYMER 3/4X2 HUS-539113479
