Husqvarna LZ30 (968999776) (2008-01) Ride Mower (Turf Care)

Model: LZ30 (968999776) (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

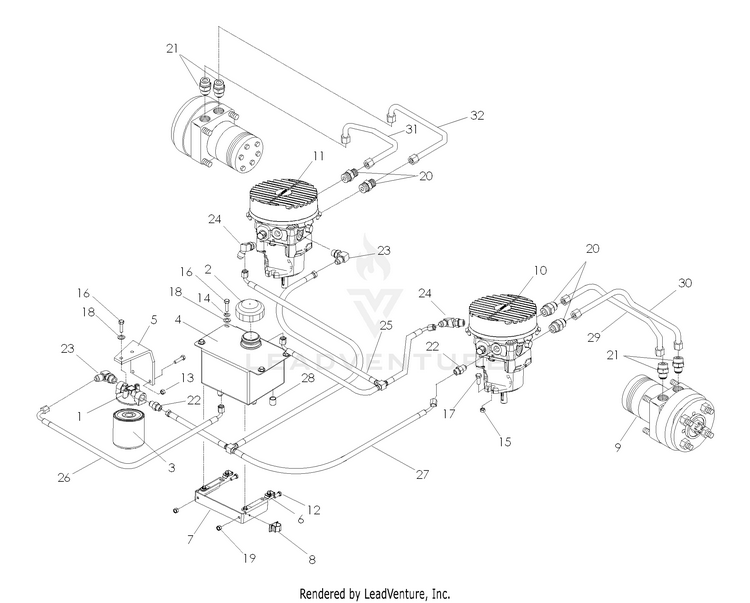

Hydraulic Pump-Motor

...
...
1
FILTER HEAD HUS-539101165
...
2
HYDRAULIC CAP HUS-539101202
...
3
HYDRAULIC OIL FILTER HUS-539102606
...
4
OIL TANK HUS-539105024
...
5
OIL FILTER BRKT HUS-539106933
...
6
1/4C - U TYPE RETAINER HUS-539110813
...
7
TANK MOUNT HUS-539110814
...
8
PUSH-MOUNT WIRE CLIP HUS-539110815
...
9
TL15 WHEEL MOTOR HUS-539110823
...
10
HG_PUMP, 10CC W/FAN LEFT HUS-539132142
...
11
HG_PUMP, 10CC W/FAN RIGHT HUS-539132143
...
12
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
13
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
14
Washers HUS-596564801
...
15
Nuts HUS-595305901
...
16
Screws HUS-596230901
...
17
Screws HUS-596583101
...
18
Washers HUS-597338501
...
19
Nuts HUS-596583702
...
20
FITTING, STRAIGHT F6400-8-8-0 HUS-539101237
...
21
FITTING HUS-539102396
...
22
HYDRAULIC FITTING HUS-539113782
...
23
ELBOW, F6801-6-6-0 90 DEGREE HUS-539101238
...
24
45 DEG ADJ ELBOW HUS-539132316
...
25
HOSE, T-ASM RETURN HUS-539132290
...
26
HOSE, LPB - MA LINE HUS-539132287
...
27
HOSE, T-ASM SUPPLY HUS-539132289
...
28
NUT 9/16-18 JIC CAP HUS-539105168
...
29
HOSE, RPA - MA LINE HUS-539132284
...
30
HOSE, RPB - MB LINE HUS-539132285
...
31
HOSE, LPA - MB LINE HUS-539132286
...
32
HOSE, LPB - MA LINE HUS-539132287
